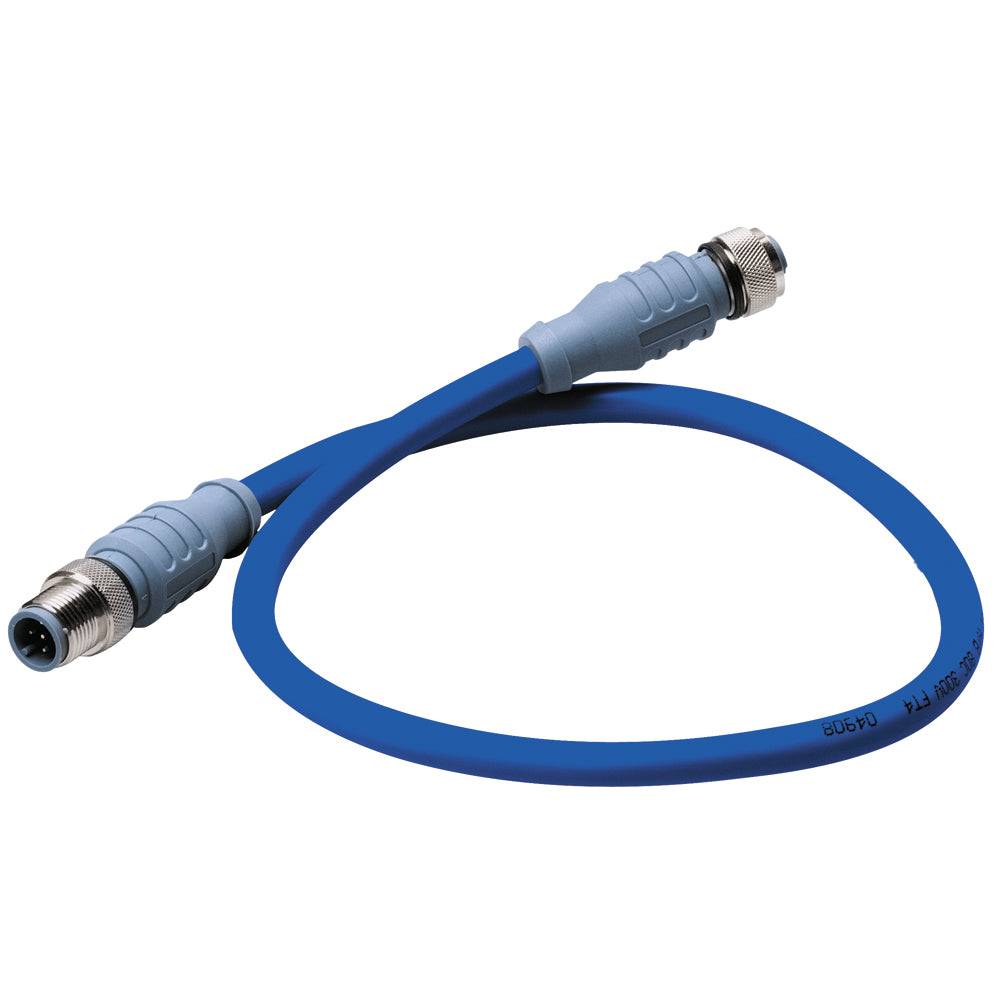

Maretron DM-DB1-DF 10 Meter Blue Mid Double-Ended Cordset for Marine Data and Power Applications

The Maretron DM-DB1-DF 10 Meter Blue Mid Double-Ended Cordset is designed for reliable marine data and power transmission in demanding environments. Featuring a durable construction with a thermoplastic PUR molded body and contact carrier in blue-gray, this cordset ensures longevity and resistance to harsh conditions. The brass contact plates with gold plating provide excellent conductivity and corrosion resistance, while the nickel-plated coupling nut guarantees secure connections. With an outside diameter of approximately 0.59 inches, this cordset is compatible with a variety of marine systems requiring robust, high-quality connectors.
The electrical specifications include a current rating of 4.0 amps and a voltage rating of up to 250 volts, making it suitable for a range of power and data applications onboard. The cable features an outer PVC jacket in gray for weather resistance, with conductors insulated with polyethylene (for data pairs) and PVC (for power pairs). It comprises 2 data pairs (16 AWG) and 1 power pair (20 AWG), along with a drain wire, all shielded with three levels of foil shielding to minimize electromagnetic interference and ensure signal integrity.
Environmental protection is a key feature of this cordset, with an IEC IP68 rating for water and dust resistance and compliance with NEMA 1, 3, 4, and 6P standards. It can operate effectively across a temperature range of -40°C to 80°C (-40°F to 176°F). The product is UL and CSA approved, with certifications including UL PLTC 75°C, AWM 80°C, and FT4 flame resistance, ensuring safety and compliance for marine and outdoor use. Additionally, it is NMEA 2000 approved and meets IEC 61162-3 standards for marine communication systems.
The Maretron DM-DB1-DF 10 Meter Blue Cordset is an essential component for professionals seeking a reliable, high-performance connection solution that withstands the rigors of marine environments. Its robust design, high safety standards, and extensive certifications make it ideal for integrating power and data systems on boats, yachts, and other marine vessels, delivering peace of mind with every connection.

Features:

• Durable thermoplastic PUR molded body in blue-gray for marine resilience

• Gold-plated brass contacts for optimal conductivity and corrosion resistance

• Nickel-plated brass coupling nut for secure connection

• Approximately 0.59-inch outside diameter for compatibility with marine systems

• Electrical ratings of 4.0 amps and 250 volts suitable for power and data transmission

• Outer PVC jacket in gray with polyethylene and PVC insulation for conductors

• Includes 2 data pairs (16 AWG) and 1 power pair (20 AWG) with drain wire

• Triple foil shielding for enhanced electromagnetic interference protection

• Weather-resistant design with IEC IP68 protection and NEMA 1, 3, 4, 6P compliance

• Temperature range from -40°C to 80°C (-40°F to 176°F) for versatile outdoor use

• UL, CSA, NMEA 2000, and IEC 61162-3 certified for safety and standard compliance
