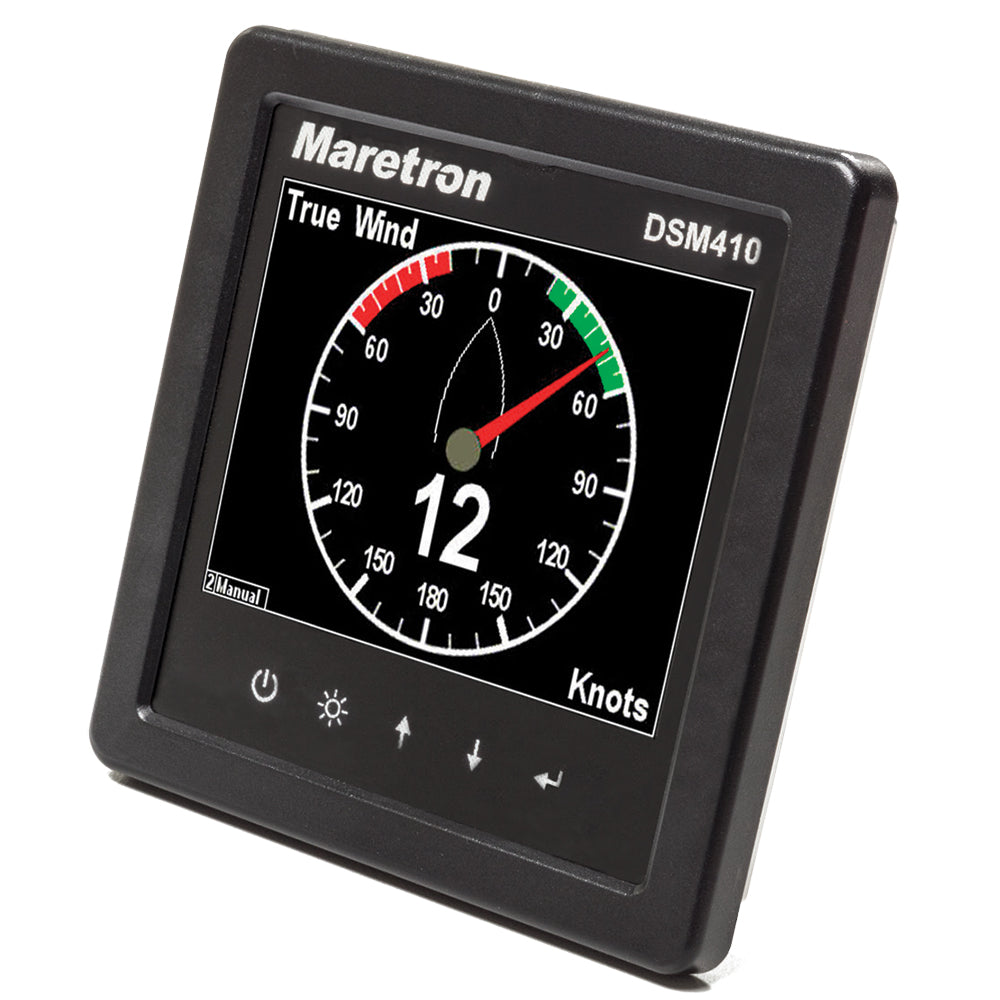

Maretron DSM410-01 4.1-Inch High Bright Sunlight Viewable Color Marine Display

4.1 High Bright Color Display - Black

Maretrons DSM410 is a 4.1 high-resolution sunlight viewable color display that interprets and displays NMEA 2000 instrument, navigation, and vessel monitoring data. The DSM410 is a user friendly dedicated marine display with custom screen configurations and an easy-to-use five-key illuminated keypad. In addition to the monitoring and display capabilities, the DSM410 features an alert/alarm package and electrical switching capability.

Unlike traditional single-display units, DSM410 users can choose numeric, gauge, bar or graph formats in single or multiple displays, with cycling options possible for a wide range of favorite data. These multiple display options conserve mounting space and reduce overall system cost.

The DSM410 will directly connect with any NMEA 2000 network and with the exception of AIS data will display any or all information captured throughout the vessel. Various audio and visual alarms are also programmable.

The DSM410 displays a multitude of information including AC power, anchor status, battery, depth, electrical distribution, engine, environment, fuel management, GPS, heading, navigation, pressure/vacuum, rudder, speed, status indicators, tanks, temperature, time, transmission, water makers, weather, wind and more.

The DSM410 includes a comprehensive, flexible alert capability. Configure audio and visual alerts on virtually any data that the DSM410 is capable of monitoring. Available alert types include:

• High alert
• Low alert
• Data unavailable alert
• On alert
• Off alert
• Circuit breaker tripped alert
• Course alert
• GPS quality alert
• Outside radius alert
• Inside radius alert
• Direction alert
• Timer alert

The DSM410 is capable of sharing alert information with other DSM410 units as well as any DSM150, DSM250 and N2KView installations on the network. An alert defined on any device can be acknowledged on any other device on the network.

Maretrons DSM410 is engineered and manufactured to the highest standards (IEC 60945 Maritime Navigation and Radiocommunication Equipment). Its compact waterproof housing will provide years of reliable performance.

Examples of data that the DSM410 can display are:

• AC power (Average Frequency, Voltage and Current, Phase-Neutral Frequency, Voltage and Current, Phase-Phase Frequency, Voltage and Current
• Anchor Watch
• Battery / DC (Voltage, Current, Battery Temperature, Battery State of Charge, Battery Time Remaining, Ripple Voltage, Power)
• Depth (Water Depth, Depth below Transducer)
• Electrical (Resistance)
• Electrical Distribution (Switch/Breaker, Breaker Current, On/Off/Error Counters, On/Off/Error Timers)
• Engine Monitor (Boost Pressure, Hours, Coolant Pressure, Coolant Temperature, Exhaust Gas Temperature, Fuel Pressure, Fuel Rate, Oil Pressure, Oil Temperature, Tachometer, Tilt/Trim, Voltage, Fuel Econmony, Fuel Consumption, Percent Load, Percent Torque, Trip Fuel Used, Warning Indicators)
• Environment (Barometer, Heat Index, Humidity, Temperatures, Wind Chill)
• Fluid Flow (Flow Rate, Trip Volume)
• Fuel management (Distance to Empty, Time to Empty, Total Fuel Capacity, Total Fuel Level, Total Fuel Consumption, Total Trip Fuel Used, Total Fuel Economy, Total Fuel Remaining)
• GPS (COG, Lat/Lon, SOG, Satellites, Time, Accuracy)
• Heading (Heading, Rate of Turn, Variation)
• Humidity (Inside, Outside, User Defined
• Indicators (Status, , On/Off/Error Counters, On/Off/Error Timers)
• Mechanical (dB, Force, Strain)
• Motion (Acceleration, Angle, Angular Velocity, Angular Acceleration, Distance, Rotation Rate, Velocity)
• Navigation (BOD, BTW, COG, XTE, DTW, ETA, Lat/Long, Rolling Road, Set/Drift, SOG, TTG, VWG, Waypoint Number and Name)
• Pressure / Vacuum
• Rudder
• SMS (Status, Signal Strength)
• Speed (Through Water, Over Ground, Total Log, Trip Log)
• Tanks (Capacity, Level, Remaining)
• Time (Local, UTC, Moon Phase, Sunrise, Sunset, Twilight)
• Transmission (Gear, Oil Pressure, Oil Temperature, Warning Indicators)
• Vessel (Heave, Pitch, Roll, Trim Tabs, Keel)
• Watermaker (Sea Recovery Status display)
• Wind (Apparent direction and speed, True direction and speed, Groud direction and speed)

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Maretron DSM410-01 is a versatile 4.1-inch high-resolution, sunlight viewable color display designed for marine navigation and vessel monitoring. Its compact waterproof housing ensures reliable performance in harsh marine environments, making it an essential component for boat owners seeking comprehensive data visualization. The DSM410-01 seamlessly integrates with NMEA 2000 networks, allowing for real-time display of a vast array of vessel data including navigation, engine parameters, electrical systems, environmental conditions, and more. Its customizable screen configurations enable users to choose from numeric, gauge, bar, or graph formats, either singly or in multiple displays, optimizing space and simplifying data interpretation.

Equipped with a user-friendly five-key illuminated keypad, the DSM410-01 simplifies operation even during challenging conditions. Its advanced alert system features configurable audio and visual alarms for high, low, or unavailable data, circuit breaker trips, course deviations, GPS quality issues, and radius alerts. These alerts can be shared across other DSM410 units or compatible Maretron and N2KView systems, with acknowledgement capabilities for efficient vessel management. This makes the DSM410-01 ideal for maintaining safety and operational awareness on any vessel.

Designed to meet IEC 60945 standards, the Maretron DSM410-01 is built for durability and long-term use. It displays a multitude of critical vessel information such as AC power parameters, battery status, water depth, engine metrics, GPS data, heading, fuel management, environmental conditions, wind, watermaker status, and more. Its flexible alert configurations and comprehensive data display capabilities equip boat operators with vital insights, helping to prevent issues and optimize vessel performance. Whether used for navigation, engine monitoring, or system diagnostics, the DSM410-01 is a high-performance, space-efficient solution for serious mariners and boat enthusiasts alike.

Features:

• High Bright Sunlight Viewable Color Display: Ensures clear readability in bright sunlight

• Customizable Screen Formats: Choose from numeric, gauge, bar, or graph displays for versatile data visualization

• Network Compatibility: Connects directly with NMEA 2000 network for comprehensive vessel data

• Multiple Data Monitoring: Displays engine, navigation, electrical, environmental, and system data

• Alert and Alarm System: Configurable visual and audio alerts for critical vessel parameters

• Electrical Switching Capability: Manage electrical systems directly from the display

• Durable Waterproof Housing: Designed to withstand harsh marine environments

• Comprehensive Data Display: Monitors power, depth, GPS, heading, fuel, wind, and more

• Acknowledgeable Alerts: Share and manage alerts across multiple units and systems

• Standards Compliant: Meets IEC 60945 standards for maritime navigation equipment
