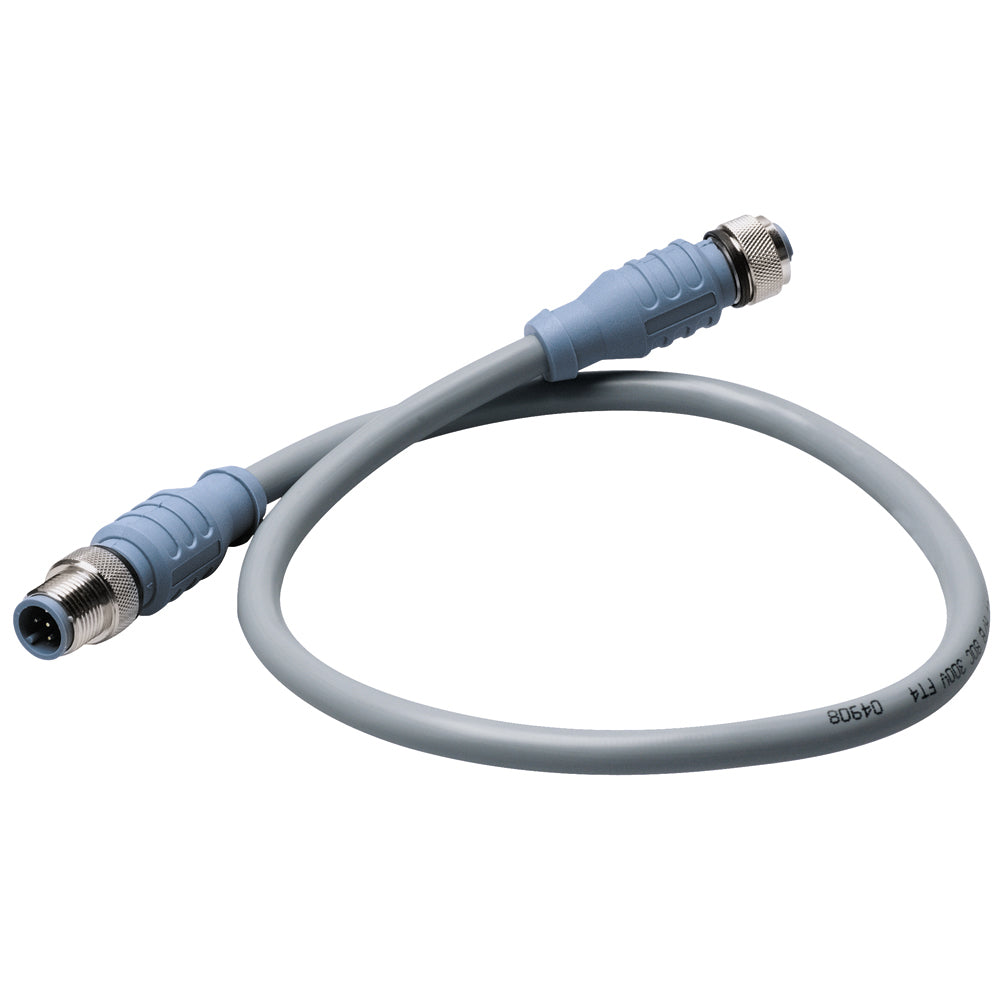

Maretron Micro Double-Ended Cordset - 3M | High-Performance Marine Cable with IP68 Waterproof Rating

Micro Double-Ended Cordset - 3M

Mechanical

• Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
• Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel
• Connector Outside Diameter: 0.59"

Electrical

• Current Rating: 4.0 Amps
• Voltage Rating: 250 V
  Cable
• Outer Jacket Mat/Color: PVC/Gray
• Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
• Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
• Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)

Environmental

• Protection Class: IEC IP68, NEMA 1,3,4,6P
• Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
  Approvals
• (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,
  AWM 80 deg C 300V
• (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,
  AWM I/II A/B 80C 300V FT4
• NMEA: NMEA 2000 Approved



The Maretron Micro Double-Ended Cordset (Part Number: CM-CG1-CF-03.0) is designed for reliable marine and industrial applications requiring robust, waterproof connections. With a 3-meter length, this cordset features durable thermoplastic polyurethane (PUR) contact carriers and molded bodies in a sleek blue-gray color, ensuring excellent resistance to harsh environmental conditions. The brass contact carriers with gold plating provide optimal electrical conductivity, while the nickel-plated brass coupling nuts ensure secure, corrosion-resistant connections. Its compact 0.59-inch outside diameter makes it suitable for tight spaces on boats, ships, and industrial equipment. The cordset is rated for 4.0 amps and up to 250 volts, supporting a variety of power and data transmission needs. The cable's outer jacket is made from UV-resistant PVC in gray, with conductor insulation crafted from high-density polyethylene (HDPE) for data pairs and sunlight-resistant PVC for power pairs, ensuring stable performance in demanding environments. Shielded with three layers of foil—overall, power, and data—this cordset minimizes electromagnetic interference, safeguarding signal integrity and power delivery. Environmentally, the cordset complies with IEC IP68 ratings and NEMA 1, 3, 4, and 6P standards, providing excellent protection against dust, water, and mechanical impact. Its temperature range from -40°C to 80°C (-40°F to 176°F) allows for use in extreme conditions, making it ideal for marine, industrial, and outdoor applications. Certified by UL, CSA, and NMEA 2000 approved, this cordset meets rigorous safety and performance standards, including sunlight resistance and fire retardancy, ensuring reliable operation in diverse environments. Whether for critical data connections or power transfer, the Maretron Micro Double-Ended Cordset offers a dependable, high-quality solution that combines durability, safety, and ease of installation for your marine or industrial projects.

Features:

• Durable thermoplastic polyurethane contact carriers in blue-gray for enhanced environmental resistance

• Gold-plated brass contacts and nickel-plated couplings for superior electrical conductivity and corrosion resistance

• Outer diameter of 0.59 inches, suitable for tight installation spaces

• Rated for 4.0 amps and up to 250 volts, supporting power and data applications

• Shielded with three layers of foil to minimize electromagnetic interference

• Outer PVC jacket in gray with UV resistance and high-quality conductor insulation for extreme conditions

• IP68 waterproof and NEMA rated for dust, water, and impact protection

• Temperature range from -40°C to 80°C (-40°F to 176°F), ideal for outdoor and marine environments

• UL, CSA, and NMEA 2000 certified, meeting safety and performance standards
