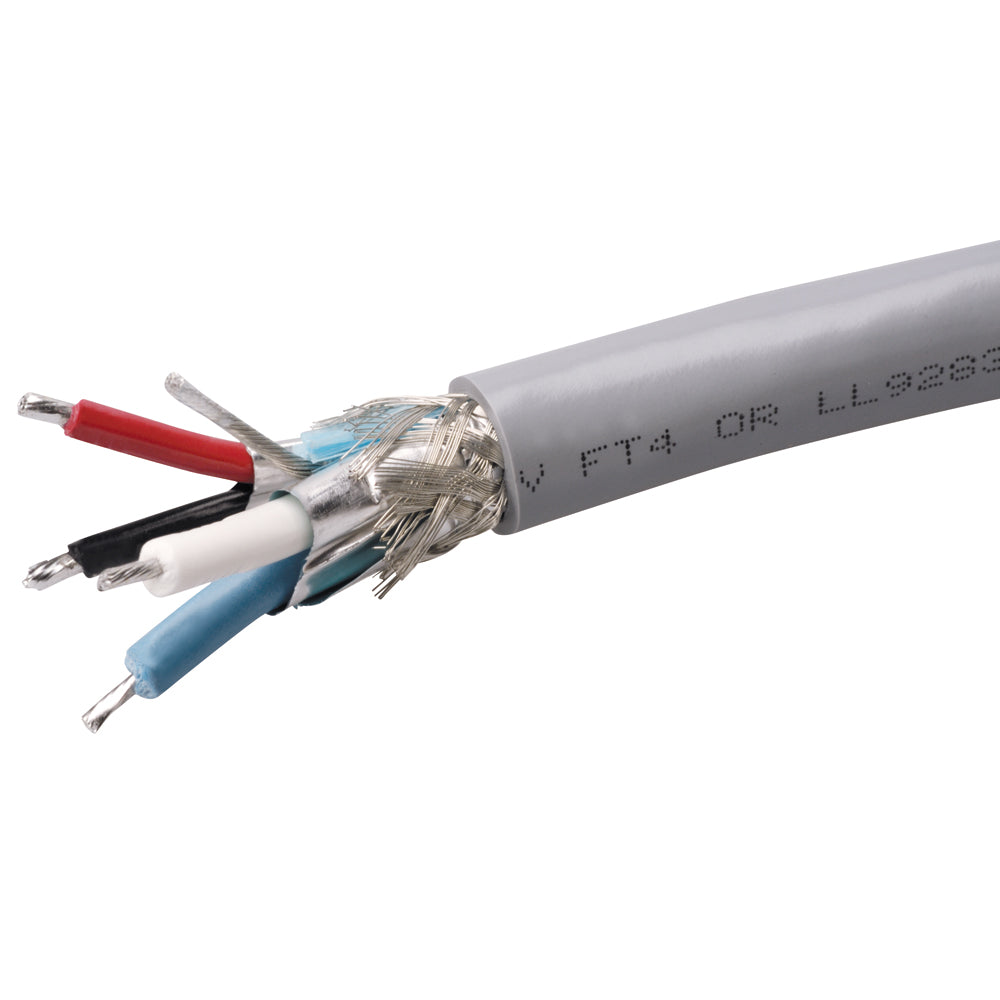

Maretron Mid Bulk Cable - 100 Meter - Gray – Marine Electrical Replacement Part

Maretron Mid Bulk Cable - 100 Meter - Gray – Marine Electrical Replacement Part is organized for electrical wiring & connectors shoppers who need a clear, professional marine parts buying experience.

Specifications Overall Outer Jacket Mat/Color: PVC/Gray - DG1 PVC/Blue - DB1 Insulation Material: PE (data wires), PVC (power wires) Construction: 2x16 (1.29mm) AWG, 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire Shielding (3 levels): Foil (overall), Foil (power pair), Foil (data pair) Power Pair Wire: 2x16 (1.29mm) AWG Resistance/Conductor: 4.1 Ohms/1000 ft max Max Amperage: 14 Amps Color Code: Red/Black Data Pair Wire: 2x20 (0.81mm) (AWG) Characteristic Impedance: 120 Ohms +/- 10% Capacitance: 10.75 pF/ft Color Code: White/Blue Approvals UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4 NMEA: NMEA 2000 Approv

Fitment & Product Details

• Brand / Manufacturer: Maretron
• Year found: 2000
• Color: gray

• Search-optimized by brand, system, part type, and fitment cues.
• Verify compatibility with your original part number, engine model, and application before ordering.
• Built for boat owners, e-commerce shoppers, and professional marine service teams.
