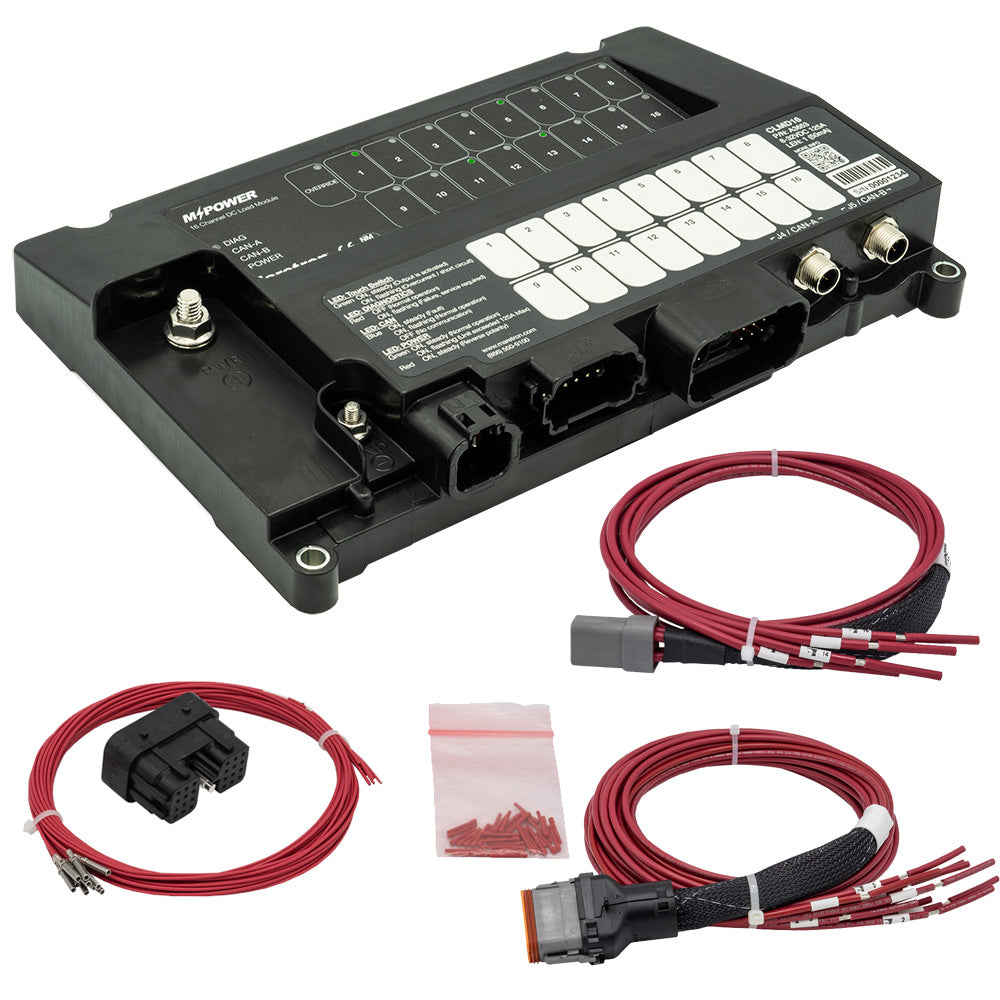

Maretron MPower CLMD16 16-Channel DC Load Controller Module with NMEA 2000 Interface and J1 & J2 Connectors

MPower 16-Channel DC Load Controller Module with NMEA 2K with J1 J2 Connectors

For larger breakers and more circuits, the MPower CLMD16 is a 16-Channel DC Load Controller Module. Four of the 16 breakers handle a maximum of 25 amps, and twelve breakers handle a maximum of 12 amps, with a total current capacity of 125 Amps. Additionally, circuits can be paralleled.

The CLMD16 also supports two H-Bridge reversing polarity circuits that can be used for loads such as engine hatches, passerelles, trim tabs, etc. The CLMD16 has 8 inputs for hard-wired switches that can be used to switch breaker states, or as inputs for other data, such as bilge alarms or hatch positions, etc. There are 3 inputs capable of monitoring tank levels.

The CLMD16 handles many DC load types such as lights, pumps, motors, and electronics. An added benefit of the CLMD16 is that it reports the current through each of the 16 breakers. This allows you to determine if loads are drawing too much or too little electrical current. This information can be used to report overcurrent faults and undercurrent conditions, such as burnt-out bulbs.

Features:

• NMEA 2000 Interface
• IP67 Rated
• Ignition Protected
• Opto-isolated from NMEA 2000, eliminating potential ground loops
• Sixteen (16) dimmable Electronic Circuit Breakers (ECBs) for On/Off Control over NMEA 2000 network
• 4 breakers capable of carrying up to 25 Amps
• 12 breakers capable of carrying up to 12 Amps
• Individual breaker electrical current monitoring
• Breakers can have Power-Up states defined (ON, OFF, or previous states)
• Breakers can be locked against inadvertent actuation.
• Capacitive touch switches for local control of all loads
• All inputs and outputs are protected against short to Power and short to Ground
• Automatic ECB overcurrent shutdown
• Automatic ECB thermal shutdown (Overtemperature Protection)
• Eight (8) discrete digital input channels capable of sensing +ve or ground signals
• Two (2) resistive analog input channels
• One (1) 4-20mA current loop input channel

Applications:

• Remote control of navigation lights
• Remote control of boarding lights
• Burnt-out bulb alerts
• Control of area lights with dimming

The Maretron MPower CLMD16 is a versatile 16-channel DC load controller designed for marine and industrial applications requiring reliable power management and monitoring. Capable of handling a total current of up to 125 amps, this module features four breakers rated for 25 amps and twelve rated for 12 amps, with the ability to parallel circuits for increased capacity. Its robust design includes an IP67 rating, ensuring protection against dust and water exposure, making it suitable for harsh environments. The CLMD16 supports two H-Bridge reversing polarity circuits, ideal for controlling loads such as engine hatches, passarelles, and trim tabs, providing flexible control options. With eight digital inputs, it can integrate hard-wired switches for manual control or monitor signals like bilge alarms and hatch positions, while three tank level inputs add further monitoring capabilities. The module also reports the current draw on each breaker, enabling operators to detect overcurrent faults or identify underperforming components like burnt-out bulbs, enhancing troubleshooting efficiency. Featuring capacitive touch switches for local load control, the CLMD16 allows seamless operation both remotely via its NMEA 2000 interface and locally on-site. Its built-in protections include short-to-power and short-to-ground safeguards, automatic overcurrent shutdown, and thermal shutdown to prevent overheating. Additional features such as configurable power-up states and breaker lockouts provide advanced control over electrical loads. The module’s multiple input channels, including resistive and 4-20mA current loop inputs, facilitate integration with various sensors and control systems. Designed for applications like remote navigation and area lighting, this controller helps streamline power management aboard vessels or in industrial settings. The Maretron CLMD16 is an essential solution for users seeking a reliable, feature-rich load management system that enhances safety, efficiency, and operational control, backed by the manufacturer’s commitment to quality and safety standards. Please note, this product may not be returned to the original point of purchase; contact Maretron directly for support or concerns.

Features:

• NMEA 2000 Interface for seamless network integration

• IP67 rated for dust and water resistance

• Ignition protected design

• Opto-isolated from NMEA 2000 network to prevent ground loops

• Sixteen dimmable electronic circuit breakers (ECBs) for remote control

• Four breakers rated for up to 25 Amps

• Twelve breakers rated for up to 12 Amps

• Individual breaker current monitoring for load management

• Configurable power-up states (ON, OFF, or previous state)

• Breaker lockout feature to prevent accidental actuation

• Capacitive touch switches for local control of loads

• Protection against short circuits to power and ground

• Automatic ECB overcurrent and thermal shutdown for safety

• Eight digital input channels for switch or sensor signals

• Two resistive analog input channels

• One 4-20mA current loop input channel for sensor integration
