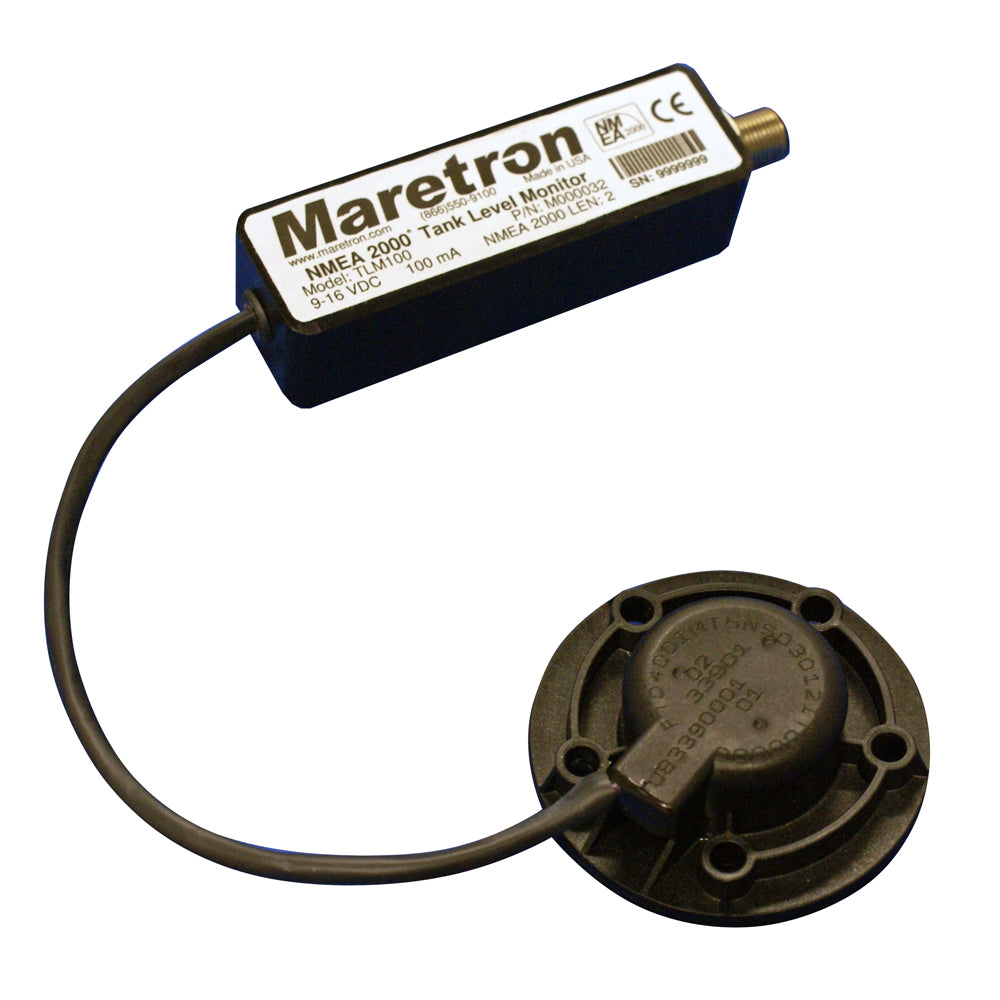

Maretron TLM100 Tank Level Monitor - Ultrasonic Level Sensing for NMEA 2000 Networks

The TLM100 is used to sense levels of liquid tanks using ultrasonic technology and transmit the liquid levels over the NMEA 2000 network. This allows you to observe tank levels anywhere on the vessel where there is an NMEA 2000 compatible display such as the Maretron DSM250. The TLM100 is capable of sensing tanks up to 40" (1.02m) in depth. It can be used for diesel, fresh water, grey water, black water, and oil tanks. Unlike most tank senders that only work with rectangular tanks, the TLM100 can be calibrated for irregular tank shapes so you know the true level of your tanks. The TLM100 can be mounted on tanks with a SAE J1810 5-hole mounting pattern, or to tanks using 1.5" NPT or 1.25" BSP threaded openings via available adapters. The TLM100 has an optional airlock for black water applications to keep the face of the ultrasonic transmitter from fouling, and an optional focus tube to allow use on boats with planing hulls when the vessel spends a significant amount of time with the bow pitched up. Best of all, the TLM100 is NMEA 2000 certified so you can view any and all tank levels anywhere on the vessel using a compatible NMEA 2000 display. The TLM100 is a key component of Maretron's N2KView vessel monitoring and control system.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Maretron TLM100 Tank Level Monitor is an advanced ultrasonic sensing device designed to provide accurate liquid tank level readings for a variety of vessel applications. Compatible with NMEA 2000 networks, the TLM100 transmits real-time data to any NMEA 2000 display, such as the Maretron DSM250, allowing vessel operators to monitor tank levels from anywhere on the boat. This seamless integration ensures precise monitoring of diesel, fresh water, grey water, black water, and oil tanks, enhancing operational efficiency and safety. The TLM100 can sense tank depths up to 40 inches (1.02 meters) and features robust calibration capabilities for irregularly shaped tanks, delivering true level measurements regardless of tank geometry. Its versatile mounting options include compatibility with SAE J1810 5-hole patterns, as well as 1.5-inch NPT and 1.25-inch BSP threaded openings via optional adapters, making installation flexible across different tank designs. The device includes optional features such as an airlock for black water applications to prevent ultrasonic fouling and a focus tube for use on planing hulls where bow pitch impacts sensor accuracy. Certified for NMEA 2000, the Maretron TLM100 seamlessly integrates into Maretron’s N2KView vessel monitoring and control system, providing comprehensive tank level insights across the entire vessel. Its reliable ultrasonic technology and adaptable design make it a crucial component for vessels seeking precise, real-time tank monitoring, ultimately enhancing safety, operational awareness, and vessel management.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Features:

• Ultrasonic level sensing technology for accurate tank measurements

• Transmits liquid levels over NMEA 2000 network for vessel-wide monitoring

• Suitable for tanks up to 40 inches (1.02 meters) deep

• Calibrates for irregular tank shapes to determine true levels

• Compatible with a variety of tank mounting patterns including SAE J1810, NPT, and BSP

• Optional airlock prevents ultrasonic fouling in black water tanks

• Optional focus tube allows use on vessels with planing hulls and bow pitch

• NMEA 2000 certified for seamless integration with vessel systems

• Part of Maretron's comprehensive N2KView vessel monitoring system
