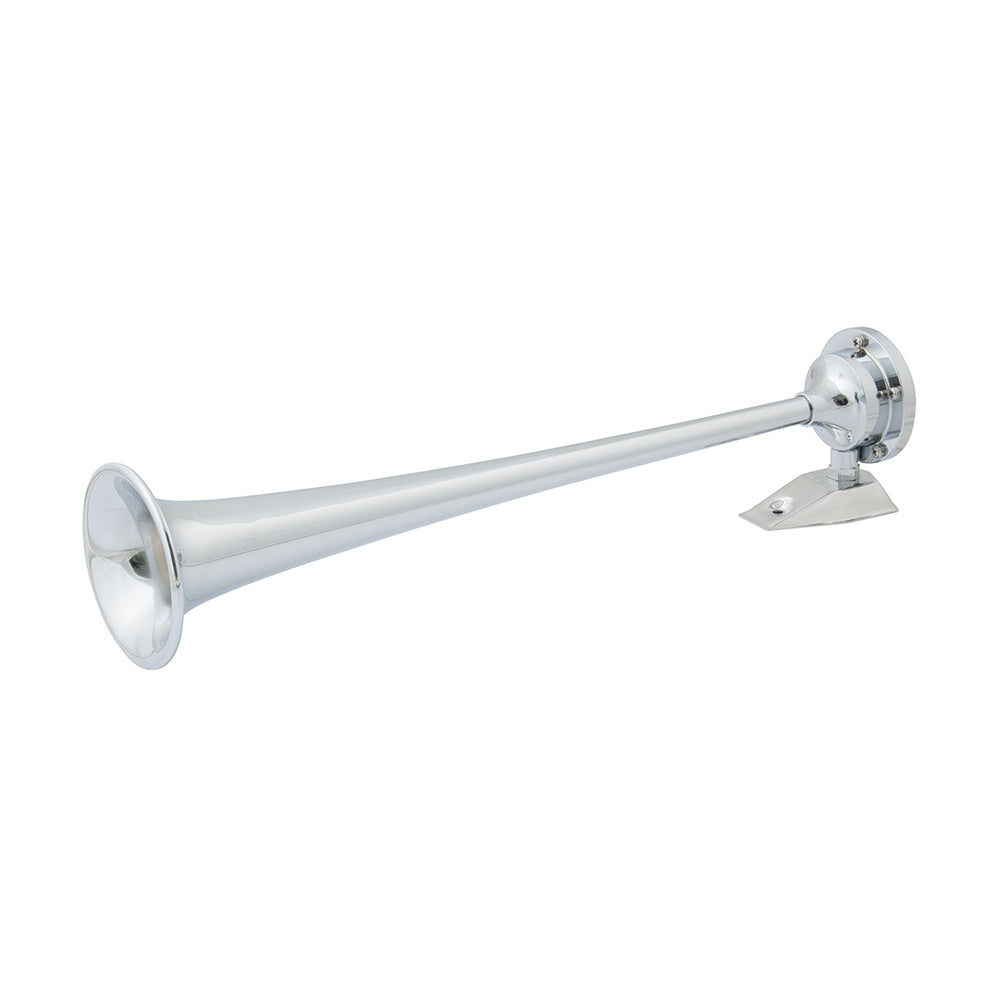

Marinco 10105 12V Chrome-Plated Single Trumpet Air Horn with Compressor

12V Chrome Plated Single Trumpet Air Horn

The Marinco FullBlast compressor driven air horns are the loudest and most complete line of 12V air horns available. All of our air horns produce sound levels ranging between 120 and 127dB, which means all of our air horns meet the ABYC and NMMA regulations for boats up to 20 meters/66 feet. Both 12 and 24 volt compressors are CE listed.

Features:

• Solid brass construction
• Non-corrosive Lexan polycarbonate diaphragm. LEXAN is a registered trademark of Sabic Innovative Plastics IP B.V., Netherlands
• Includes compressor, air tubing, fittings and hardware
• 12V compressor produces 9-11 PSI
• Dimensions: 17" L x 3.75" W x 3.75" H
• Maximum amp draw: 12 volt: 20 amps, 24 volt: 10 amps
• dB rating: 120 at one meter, 1/3 octave band
• Fundamental frequency: 315+/-15Hz

Marinco 10105 12V Chrome-Plated Single Trumpet Air Horn delivers a clear, powerful signal for recreational and commercial boats requiring a reliable marine air horn. Designed for vessels up to 66 feet, this compressor-driven horn produces a 120 dB sound level at one meter and is built to meet ABYC and NMMA regulations for applicable boats.

Constructed with a solid brass trumpet and a non-corrosive Lexan polycarbonate diaphragm, the Marinco FullBlast air horn is designed for marine use. The included 12V compressor, air tubing, fittings, and mounting hardware provide the core components needed for installation, helping simplify setup on boats where a dependable audible signaling device is required.

The 12V compressor produces 9–11 PSI and has a maximum amp draw of 20 amps. With a fundamental frequency of 315 +/- 15 Hz, this single trumpet air horn provides a distinct tone for signaling in marine environments. The compressor is CE listed, and the horn’s sound output is specified using a 1/3 octave band measurement at one meter.

Key Features:

• Solid brass construction: Provides a durable trumpet housing for marine air horn applications.
• Chrome-plated finish: Gives the single trumpet air horn a polished appearance.
• Non-corrosive Lexan polycarbonate diaphragm: Supports reliable operation in marine environments.
• Complete installation components: Includes the 12V compressor, air tubing, fittings, and hardware.
• 120 dB sound rating: Produces a clearly defined signal measured at one meter using a 1/3 octave band.

Product Details:

• Brand: Marinco
• Part number: 10105
• Product type: 12V chrome-plated single trumpet air horn
• Compressor pressure: 9–11 PSI
• Maximum 12V amp draw: 20 amps
• Fundamental frequency: 315 +/- 15 Hz
• Regulatory fit: Meets ABYC and NMMA regulations for boats up to 66 feet
• Compressor listing: CE listed
• Diaphragm material: Lexan polycarbonate

Choose the Marinco 10105 for a complete 12V marine air horn package backed by purpose-built components and dependable signaling performance.

SEO Meta Description: Marinco 10105 12V chrome-plated single trumpet air horn with compressor, 120 dB output, brass construction, tubing, fittings, and hardware.

Features:

• Solid brass construction provides a durable trumpet housing for marine air horn applications.

• Chrome-plated finish gives the single trumpet air horn a polished appearance.

• Non-corrosive Lexan polycarbonate diaphragm supports reliable operation in marine environments.

• Includes the 12V compressor, air tubing, fittings, and hardware for installation.

• Produces a 120 dB sound level at one meter using a 1/3 octave band measurement.

• 12V compressor produces 9–11 PSI with a maximum amp draw of 20 amps.
