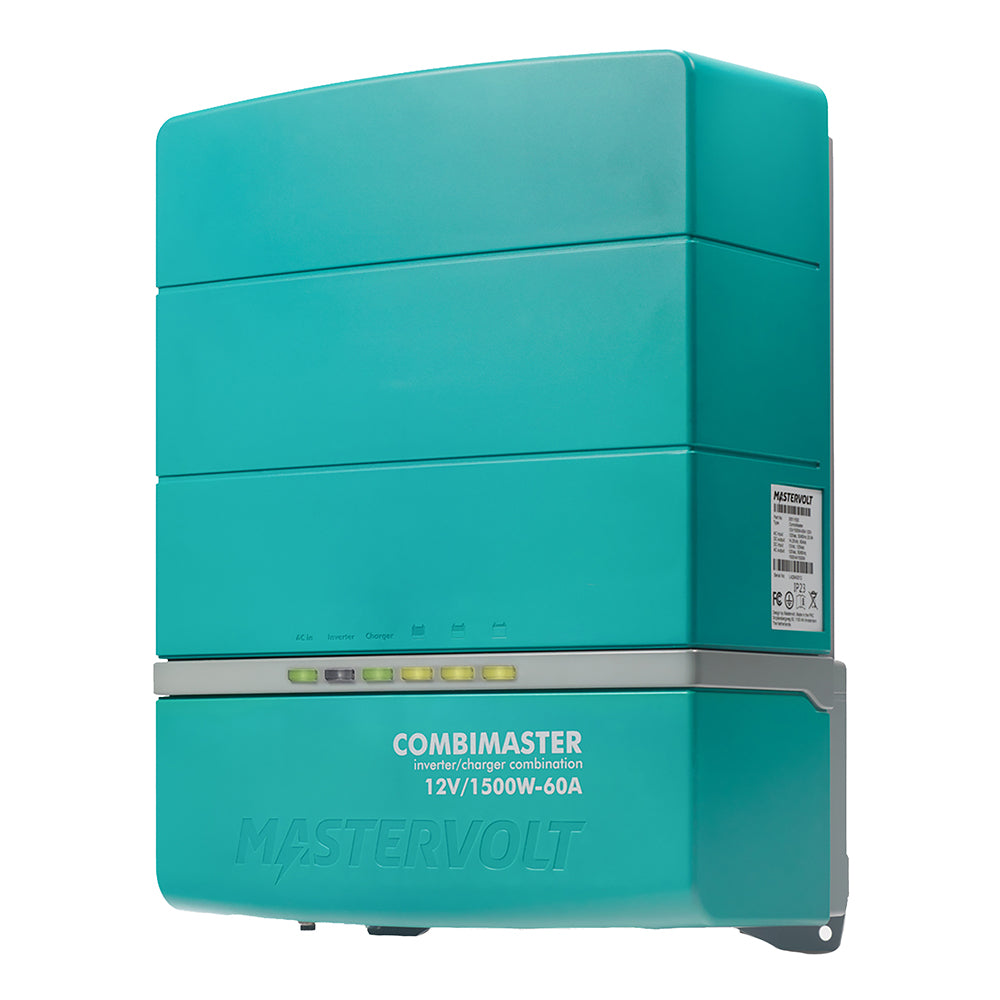

Mastervolt CombiMaster 12V 1500W Pure Sine Wave Inverter/Charger, 60A, 120V - 35511500

CombiMaster Inverter/Charger - 12/1500-60 Amp - 120V

The CombiMaster inverter/charger provides the most power and charging in the series. The 3500W version comes in 12V and can be paralleled stacked in a single system up to 10.5kW. The 24V models in 3500W and 5000W can create parallel stacked systems up 35kW. The 1500W version delivers 1500W of pure sine wave inverter power and 60 amps multi chemistry battery charging. The 1500W is the smallest form factor in the series. All models provide pure sine wave inverter power and over 60-200 amps multi-chemistry battery charging, plus the intelligent design is NMEA 2K and MasterBus compatible.

Specifications:

• Nominal DC Voltage: 12V (10.2-16V)
• Continuous Power at 104 F: 1500W
• Peak Power 30 seconds: 2250W
• Surge Power 5 seconds: 3000W
• Parallel Stacking: No
• Synchronize with Mains/Generator: Yes
• Output Waveform: Pure Sine

Mastervolt CombiMaster 12/1500-60 Amp Inverter/Charger combines dependable pure sine wave inverter power with multi-chemistry battery charging in a compact 12V system. Designed for marine and mobile power applications, this 120V inverter/charger delivers 1500 watts of continuous power while providing up to 60 amps of battery charging for compatible systems.

The CombiMaster inverter/charger is built to support practical onboard and off-grid power needs, including synchronizing with mains or a generator. Its pure sine wave output is suited to equipment that requires clean AC power. The 12V DC input operates across a 10.2–16V range, while the compact form factor makes the 1500W model the smallest version in the CombiMaster series. Intelligent system design also supports NMEA 2K and MasterBus compatibility.

With 2250 watts of peak power for up to 30 seconds and 3000 watts of surge power for up to 5 seconds, the Mastervolt CombiMaster 35511500 provides additional short-duration capacity for applicable startup and intermittent loads. Parallel stacking is not supported on this model, making it intended for standalone installation within a compatible 12V electrical system.

Key Features

• Pure sine wave inverter: Delivers 1500 watts of continuous 120V AC power for clean power output.
• 60-amp multi-chemistry battery charger: Supports charging across compatible battery chemistries.
• 12V DC system: Operates within a nominal 12V input range of 10.2–16V.
• Short-duration power capability: Provides 2250 watts of peak power for 30 seconds and 3000 watts of surge power for 5 seconds.
• Mains and generator synchronization: Supports synchronization with mains power or a generator.
• Network compatibility: Designed for NMEA 2K and MasterBus-compatible system integration.

Product Details

• Brand: Mastervolt
• Model/Part Number: 35511500
• Product type: Inverter/charger
• Nominal DC voltage: 12V
• DC voltage range: 10.2–16V
• Continuous power at 104°F: 1500W
• Peak power: 2250W for 30 seconds
• Surge power: 3000W for 5 seconds
• Output waveform: Pure sine wave
• Output voltage: 120V
• Battery charging: 60 amps, multi-chemistry
• Parallel stacking: No
• Synchronization: Mains/generator synchronization supported
• Dimensions: 16 inches L x 16 inches W x 10 inches H
• Weight: 87.1 pounds

Select the Mastervolt CombiMaster 35511500 for compact 12V power conversion and battery charging in a compatible marine or mobile electrical system.
