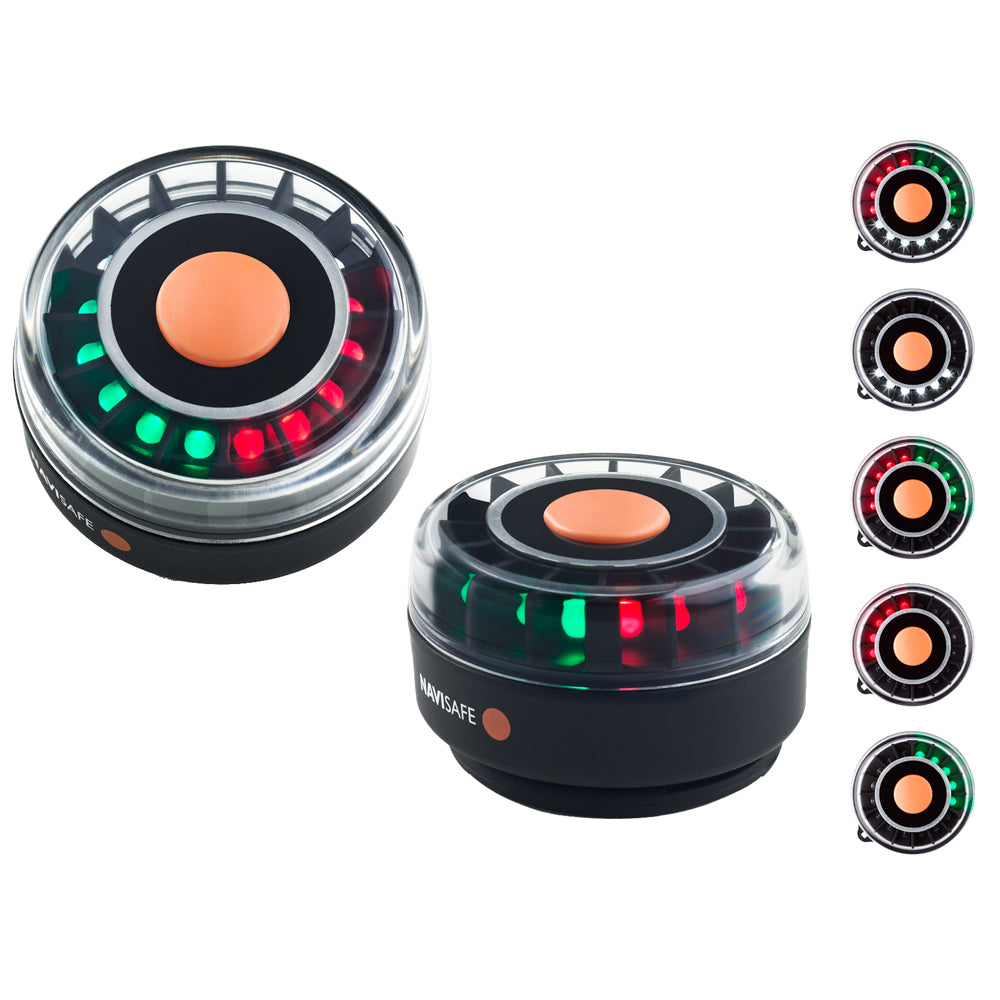

Navisafe Navilight Tricolor 2NM Portable Navigation Light with Magnet Base, Part 305-1

Navilight Portable Tricolor 2NM with Magnet Base

The Navilight Tricolor 2NM - US Coast Guard approved for 2 nautical miles includes a green light to be shown at the starboard side and a red light to be shown at the port side. In addition, it includes the white Sternlight, to be used at the stern. It is battery operated, uses super bright LED light, is water proof, floats and attaches almost anywhere through its double magnetic mounting system.

The green as well as the red lights show an unbroken light over an arc of the horizon of 112,5. The white Sternlight shows an unbroken light over an arc of the horizon of 135. All lights work independently, in a combination of all three or red/green together.

Examples of usage:

*Based on the Convention on the International Regulations for Preventing Collisions at Sea, commonly called 72 COLREGs

On a power-driven vessel of 12M or more in length but less than 50M in length:

• As green or red sidelight
• As sternlight

On a power-driven vessel of less than 12M in length:

• as green or red sidelight
• as combined green / red
• as sternlight

On a sailing vessel underway:

• as green or red sidelight
• as sternlight

On a sailing vessel of less than 20 meters in lengths as backup light:

• Tricolor lantern at or near the top of the mast

Specifications:

• USCG Approval, 2 Nautical Miles
• 5 Modes: Tricolor Masthead light (135 white, 112,5 red, 112,5 green), BiColor side light, red side light, green side light, white Sternlight
• Floatable, waterproof (20M) and air-tight
• Includes magnet bracket, mounting screw, 3 lanyards for multiple fixing and securing
• Powered by three AAA batteries (not included)
• Size: H = 35mm, Diameter = 68mm
• Weight (net): 118g

Modes / approximate burn time:

• 16 green / red / white LED, 360 TriColor lantern / 12hrs
• 10 green / red LED, 225 Bi-Color sidelight / 20hrs
• 5 green or 5 red LED, 112,5 sidelight / 38hrs
• 6 white LED, 135 Sternlight / 32hrs

Mounting System

The double magnetic system consists of the Navilight with its magnetic base, a separate magnetic plate and a screw for attaching the plate to a wooden deck for example. It also holds the light safely on many plastic boats, biminis or any other material by placing the light on top and the magnetic plate underneath. Additionally Navisafe offers a wide range of specially designed magnetic mountings such as the Clamp-on Rail mount, Bendable Suction-mount and the Telescopic Poles that easily allow the lights to be attached.

Navisafe Navilight Tricolor 2NM Portable Navigation Light with Magnet Base

The Navisafe Navilight Tricolor 2NM is a portable, battery-operated navigation light designed for boats that need visible red, green, and white lighting options. With U.S. Coast Guard approval for 2 nautical miles, this compact LED lantern provides independent or combined lighting modes for use as a sidelight, sternlight, bicolor light, or tricolor masthead light. Its waterproof, airtight, and floatable design makes it practical for a range of boating applications, while the magnetic mounting system helps position the light on compatible surfaces.

Five operating modes provide flexible illumination: tricolor masthead lighting with white, red, and green LEDs; combined green and red bicolor lighting; individual red or green sidelights; and a white sternlight. The red and green lights provide an unbroken light over a 112.5-degree arc of the horizon, while the white sternlight provides an unbroken light over a 135-degree arc. Each mode operates independently, allowing boaters to select the lighting configuration suited to their vessel and intended use.

The Navisafe Navilight Tricolor 2NM can be used on power-driven vessels, sailing vessels, and smaller sailboats as a backup light near the top of the mast, based on the examples provided under the Convention on the International Regulations for Preventing Collisions at Sea, commonly called the 72 COLREGs. The double magnetic mounting system includes a magnetic base, separate magnetic plate, and mounting screw, with three lanyards included for additional fixing and securing. The light is powered by three AAA batteries, which are not included.

KEY FEATURES:

• U.S. Coast Guard approved: Provides visibility rated for 2 nautical miles.
• Five lighting modes: Includes tricolor masthead, bicolor, red sidelight, green sidelight, and white sternlight functions.
• Portable magnetic mounting: Double magnetic system attaches the light to various surfaces, including compatible boat decks and other mounting locations.
• Waterproof and floatable: Waterproof to 20 meters and designed to float if dropped in the water.
• Long-lasting LED operation: Approximate burn times range from 12 to 38 hours, depending on the selected mode.
• Complete mounting accessories: Includes a magnet bracket, mounting screw, and three lanyards.

PRODUCT DETAILS:

• Brand: Navisafe
• Part number: 305-1
• Light type: Portable tricolor navigation light
• Power: Three AAA batteries, not included
• Water resistance: Waterproof to 20 meters and airtight
• Size: Approximately 1.38 inches high x 2.68 inches in diameter
• Net weight: Approximately 4.2 ounces
• Included accessories: Magnet bracket, mounting screw, and three lanyards
• Light modes and approximate burn time: Tricolor, 12 hours; bicolor, 20 hours; red or green sidelight, 38 hours; white sternlight, 32 hours

Choose the Navisafe Navilight Tricolor 2NM when you need a compact, versatile boat navigation light with multiple operating modes and flexible magnetic mounting. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
