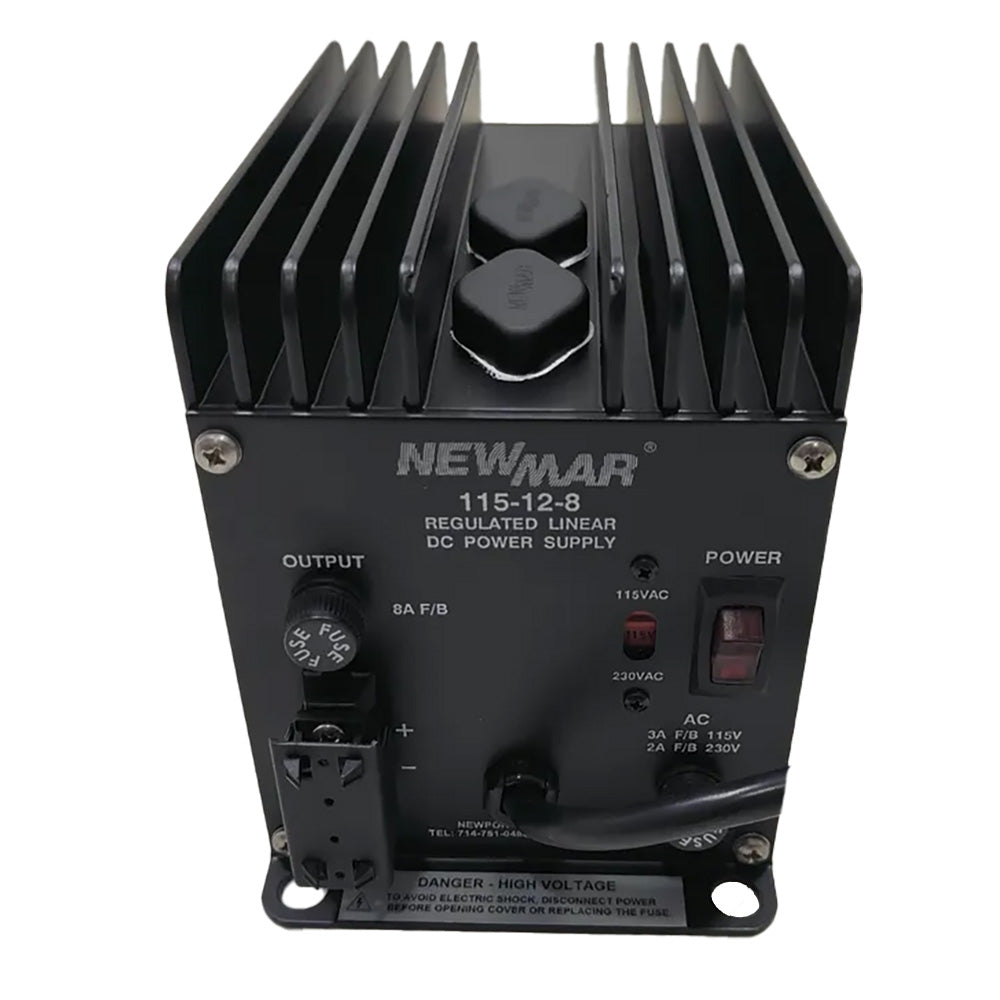

115-12-8 Power Supply
This super-rugged DC power supply is ideal for powering 12-volt communication and navigation equipment onboard commercial vessels where reliability is essential. The proven linear circuit design provides pure noise-free output and a long service life.
Features:
Excellent Regulation and Ripple Spec (output voltage maintained within 1% under all rated line and load conditions)
Polyurethane conformal coated PC board and corrosion-resistant heavy-duty aluminum case with integral shock mounts assure survival in hostile environments
The heat generated by semi-conductors is extracted and dissipated by large heat sink fins for cool operation
Protection: overvoltage, current limit; (set @ 105% of intermittent rating), thermal overload, and input/output fusing
Thermally activated cooling fan on “CD” units
Specifications:
Nominal Input/VAC: 115/230
Maximum Input Current @115: 2.5
Maximum Input Current @230: 1.5
Output Amperage (Intermittent): 8
Output Amperage (Continuous): 5
Weight: 32 lbs. / 14.6 kg
Case Size:
H x W x D (inch): 6.0” x 4.6” x 8.5”
Input Range
105-125/210-250 VAC (selectable), 50-60 Hz; Derate to 50% output below 110 and 220 VAC
Operating Temperature
Standard Units - 0-50 degrees C, Derate linearly from 100% @ 40 degrees C to 50% @ 50 degrees C thermal shutdown @ 85 degrees C case temperature
Duty Cycle:
Intermittent: 20 minutes max on time, 20% duty
Continuous: 24 hours/day 100% Duty
Options:
Modify for use as a battery charger
The output voltage is adjusted (see Output Voltage for range)
Transfer relay for back-up battery in event of power failure (ERC option)
Output Voltage:
13.6 VDC (internally adjustable 12.6-14.5 VDC)
Ripple: 40mV P-P (@ 110-125 / 220-250 VAC input)
1% Line and Load (@ 110-125 / 220-250 VAC input)
Mechanical:
Powder-coated aluminum heat sink case
Front panel terminal block
Heavy-duty mounting flange
Conformal-coated PC board
