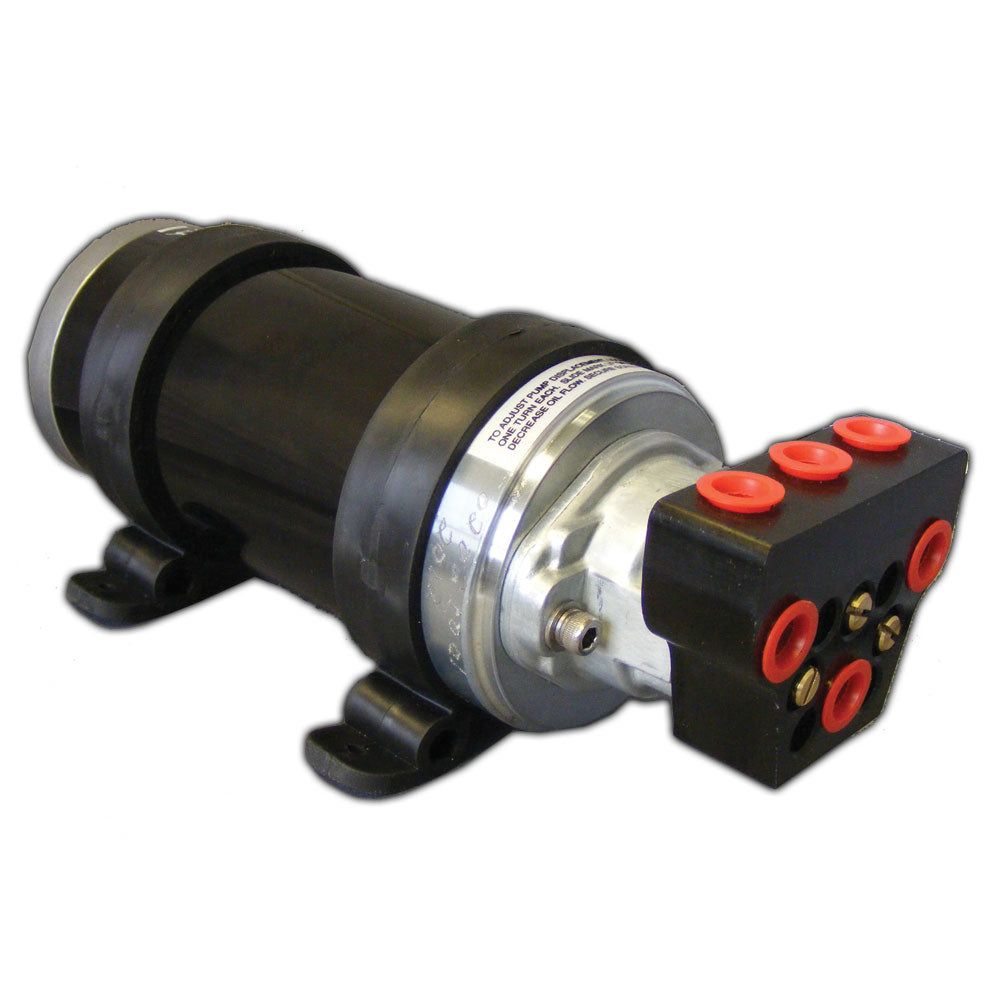

Octopus Autopilot Pump Type 2 – Adjustable Reversing 12V Hydraulic Pump for Boats up to 65 Feet

Autopilot Pump Type 2 - Adjustable Reversing Pump - 12V up to 18 CI Cylinder

Now with ORB Port Connection manifold

Reversing pumps are used when hydraulic steering is fitted on boats up to 65 feet L.O.A. (depending on rudder torque). The pumps are switched on by the automatic pilot and make a steering correction to left or right determined by the direction of rotation of the pump motor. The motors are of the permanent magnetic type and reversing direction is accomplished by reversing the motor input current.

The pump has only three moving parts and requires no complicated check valves to prevent rudder movement when de-energized. Output flow is completely adjustable to 50% of rated flow allowing the pump output to be adjusted precisely to the volume of steering cylinder fitted. The pump is exceptionally reliable and delivers more than twice the hydraulic output per watt of input than gear pumps manufactured by competitors.

Motors are heavy duty, a full 85mm in diameter with long brushes and sealed ball bearings for long service life. The molded rubber mounting foot can be rotated to allow the pump to be mounted on any surface.

A useful range of accessories can be used to enhance the pump by incorporating added valves and solid state FET switching. The valves mount directly to the pump body. The FET switch mounts adjacent to the pump. No other autopilot pump made offers such advantages.

Benefits of the Octopus Reversing Pumps
Piston pump technology giving higher efficiency and accuracy Fewer moving parts giving increased reliability Variable flow rate to make sure the pump is matched as accurately as possible to the manual steering system Professional cut off valves for simple servicing.

Features:

• Average Current 4-6 amps
• Max Current 19amps
• 12vDC
• Cylinder Size: 11-22ci
• Flow Rate(adjustable): 600cc - 1.2 litre/min

The Octopus Autopilot Pump Type 2 is a high-performance, adjustable reversing hydraulic pump designed for reliable boat steering systems up to 65 feet in length. Engineered with piston pump technology, this pump delivers higher efficiency and precise control, making it an ideal choice for marine vessels requiring responsive autopilot steering. The pump features a durable, heavy-duty 85mm motor with long brushes and sealed ball bearings, ensuring long service life even in demanding marine environments. Its molded rubber mounting foot can be rotated to facilitate flexible installation options on various surfaces, providing versatility for different boat configurations. The pump's output flow is fully adjustable up to 1.2 liters per minute, allowing precise matching with your steering cylinder, which ranges from 11 to 22 cubic inches. This adjustability ensures smooth and accurate steering corrections, whether navigating tight turns or steady cruising. The design includes only three moving parts, eliminating the need for complex check valves, which reduces maintenance and potential failure points. The integrated ORB port connection manifold simplifies plumbing connections, streamlining installation and service. The pump operates on 12V DC power, drawing an average of 4-6 amps with a maximum of 19 amps, making it energy-efficient and compatible with standard marine electrical systems. Optional accessories such as solid-state FET switches and dedicated valves can be mounted directly to the pump body, providing enhanced control options for advanced autopilot systems. The Octopus Autopilot Pump Type 2 is built to deliver more than twice the hydraulic output per watt compared to traditional gear pumps, translating into superior performance and efficiency. This pump is Prop 65 compliant, ensuring safety and environmental standards are met for marine applications. Whether upgrading an existing autopilot system or installing a new one, this pump offers the reliability, efficiency, and flexibility needed for precise marine steering control. It is an essential component for serious boaters seeking dependable autopilot performance in a compact, easy-to-install package.

Features:

• Average current: 4-6 amps

• Maximum current: 19 amps

• Voltage: 12V DC

• Adjustable flow rate: 600cc to 1.2 liters per minute

• Cylinder size compatibility: 11-22 cubic inches

• Includes ORB port connection manifold for easy plumbing

• Heavy-duty 85mm motor with sealed ball bearings for long life

• Rotatable molded rubber mounting foot for flexible installation

• Fewer moving parts for increased reliability

• Designed for boats up to 65 feet with hydraulic steering
