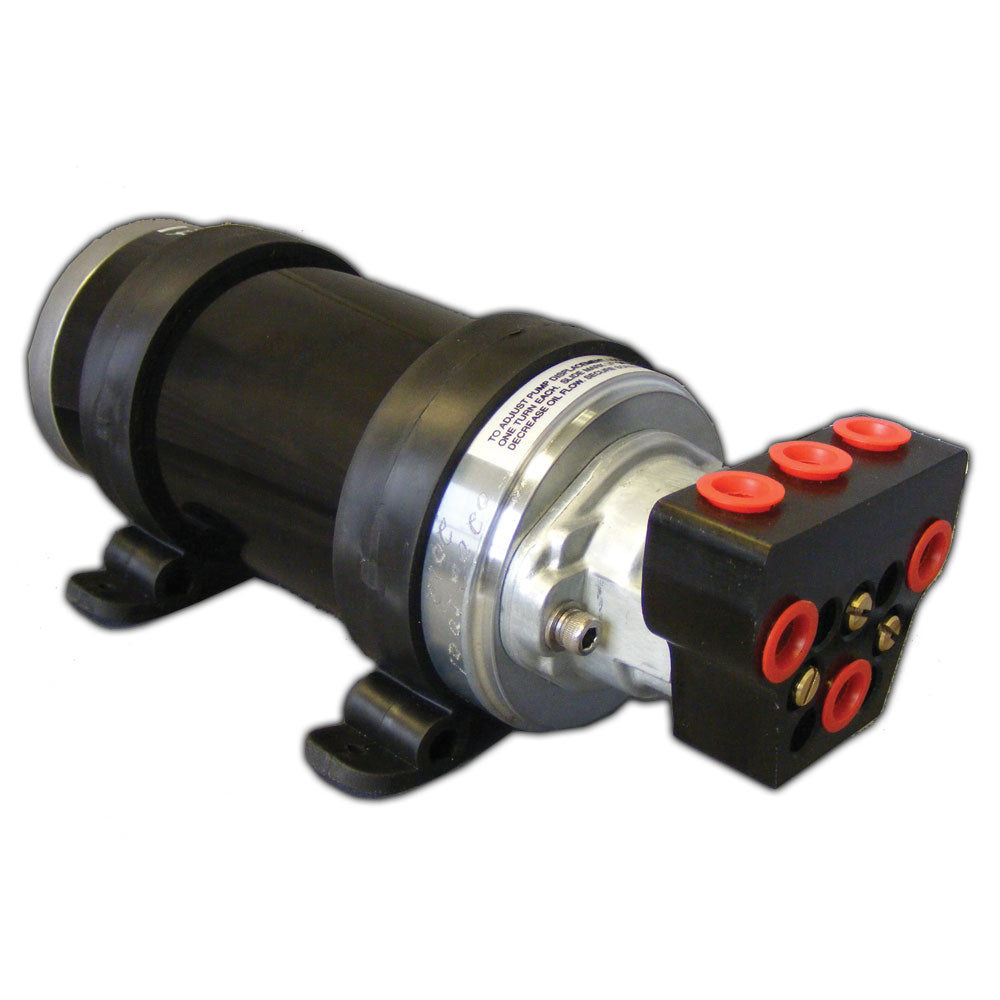

Octopus Autopilot Pump Type 3 - Adjustable Reversing 12V for Up to 30 Cubic Inches Cylinder

Autopilot Pump Type 3 Adjustable Reversing 12V Up to 30CI Cylinder

Features:

• RELIABLE - Piston pump technology with only three moving parts
• TWIC THE POWER - Delivers over twice the hydraulic output per watt of input
• HALF THE POWER CONSUMPTION - Accurate ram positioning means fewer course corrections
• ADJUSTABLE FLOW RATE- Configure performance to suit your vessel
• EASY SERVICING - Shut off valves allow removal without draining steering system

TWICE THE POWER

The unique Octopus piston pump delivers over twice the hydraulic output per watt of input than a standard hydraulic gear pump.

HALF THE POWER CONSUMPTION

Gear pumps leak oil between the gears, while a piston (such as used in car engines) does not. This means the piston pump will place the cylinder ram exactly where it is required, positioning the rudder accurately. This gives far sharper steering, reducingunnecessary course corrections meaning battery consumption on Octopus pumps is up to half that of other pumps.

PINPOINT ACCURACY

Leading autopilot manufacturers choose Octopus pumps for their non RFB pilot systems which do not have a Rudder Feedback unit. Previously, slop in the system caused by gear leakage meant that a Rudder Feedback unit was necessary to tell the pilot the exact rudder position. As Octopus pumps will always bring the ram back to the required position the Rudder Feedback unit is not required, which also greatly simplifies installation.

SAVE ONINSTALLATIONCOSTS

A professional installation should always have a method of isolating the pump from the steering system - Octopus pumps feature inbuilt shut off valves in the pump manifold.

ADJUSTABLE FLOW RATE

A pump that does not have variable flow (unless dedicated to a range of cylinders such as our fixed 0.8L pump) will be operating too fast or too slow in 90% of cases. Autopilot manufacturers get around this problem by adjusting the output to the pump to compensate, which either forces the pump to operate for longer periods of time which increases power consumption and wear on the parts, or it will operate at high pressure for short periods of time - also putting unnecessary strain and wear on the system.

Octopus Variable Flow Reversing Pumps precisely control the speed of the ram, reducing unnecessary battery consumption, pressure, strain and wear on the hydraulic system.

The Octopus Autopilot Pump Type 3 is a high-performance, reliable hydraulic pump designed specifically for marine autopilot systems requiring precise steering control. Engineered with piston pump technology, this model features only three moving parts, ensuring durability, ease of maintenance, and long-lasting operation. Its innovative design delivers over twice the hydraulic output per watt of input compared to standard gear pumps, making it a powerful and energy-efficient choice for your vessel. This efficiency translates into reduced power consumption—up to 50% less—while maintaining accurate and responsive rudder positioning for optimal navigation.

The pump's pinpoint accuracy is achieved through its piston mechanism that prevents oil leakage, unlike traditional gear pumps. This means the cylinder ram is positioned exactly where needed, resulting in sharper, more responsive steering and fewer course corrections. Additionally, the Octopus pump's ability to bring the rudder back to its set position without the need for a Rudder Feedback unit simplifies installation and reduces system complexity. Leading autopilot manufacturers favor this design for its reliability and ease of integration. The pump also features built-in shut-off valves, allowing for straightforward servicing and installation without system draining, which saves time and reduces maintenance costs.

Adjustable flow rate capability ensures optimal performance across various vessel configurations and operating conditions. Unlike fixed-flow systems that may operate too fast or slow, the Octopus pump's variable flow precisely controls ram speed, decreasing unnecessary battery drain, pressure buildup, and mechanical wear. This ensures longer component lifespan and more efficient energy use. Whether for small boats or larger vessels, the Octopus Autopilot Pump Type 3 provides a dependable, energy-efficient, and easy-to-install solution that enhances your autopilot system’s performance and longevity. As a Prop 65 compliant product, it meets safety standards for chemical exposure, offering peace of mind for marine enthusiasts and professional installers alike.

Features:

• Reliability: Piston pump technology with only three moving parts for long-lasting performance

• Power Efficiency: Delivers over twice the hydraulic output per watt of input compared to gear pumps

• Energy Saving: Reduces power consumption by up to 50% due to precise ram positioning

• Pinpoint Accuracy: Prevents oil leakage, eliminating the need for a Rudder Feedback unit and ensuring sharp steering

• Easy Servicing: Built-in shut-off valves allow removal without draining the steering system

• Adjustable Flow Rate: Precisely controls ram speed to optimize performance and reduce wear
