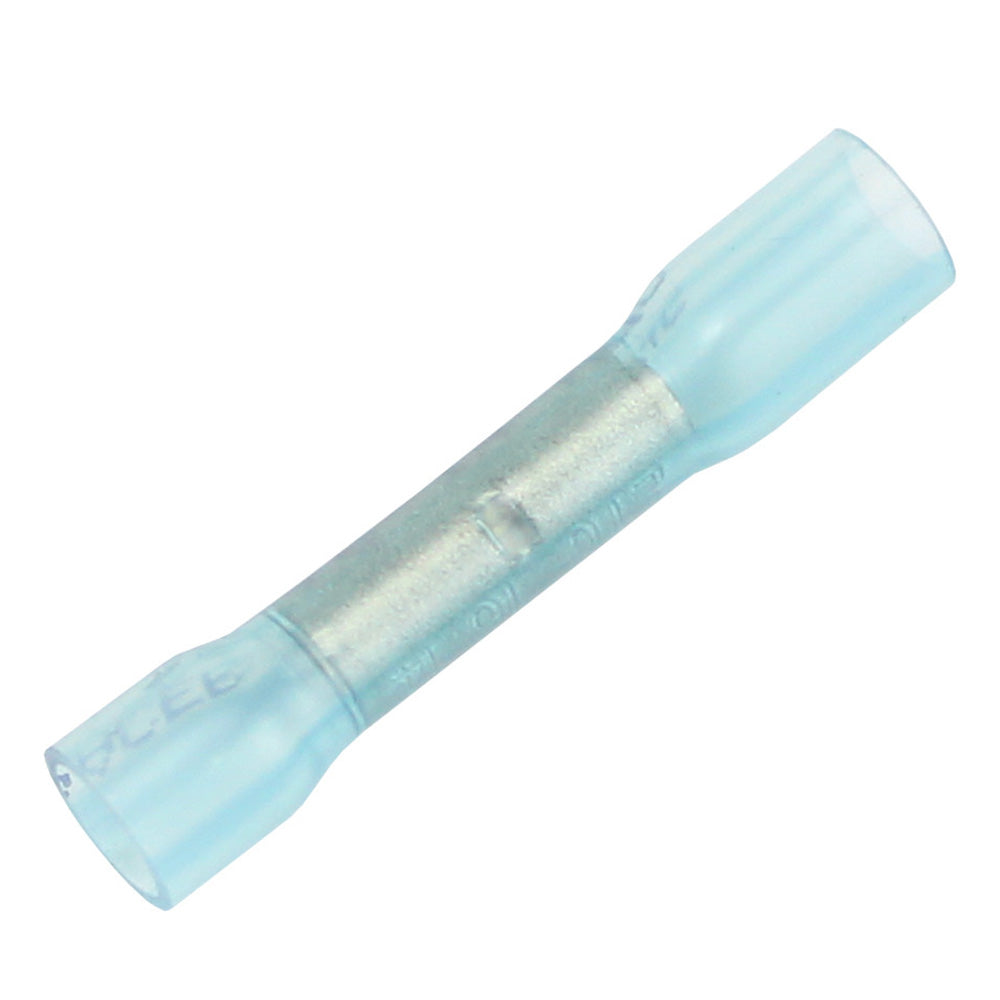

Pacer TBSE14-25 16-14 AWG Heat Shrink Butt Connectors, Blue, 25 Pack

16-14 AWG Heat Shrink Butt Connector - 25 Pack

Butt splices are crimp connectors used to safely connect one or more wires to another wire. Step-down butt splices are meant to connect a higher-gauge wire to a lower-gauge wire. They could also be used to connect two or more smaller-gauge wires to a single wire. When selecting which type to get, pay special attention to whether they are epoxy lined or not. Many manufacturers do not line the interior of their butt splices with meltable glue. This epoxy reacts to heat and expands, creating a superior, environmentally sealed connection.

Features:

• Made from tinned copper and various insulations
• Up to 600 Volts
• Not applicable to all styles
• Operating Temp: -55C to 125C
• UL, CSA, RoHS Compliant

Benefits Protections

• Impact Resistant
• Multiple Uses
• Long Term Protection
• Easy to Install

Specifications:

• Wire Range: #16-14 AWG
• Insulation Color: Blue
• Max Wire Insulation Outer Diameter (inch): 0.21"
• Package Size: Twenty-five

Pacer TBSE14-25 16-14 AWG Heat Shrink Butt Connectors provide a practical way to join electrical wires using a crimped connection with heat-shrink insulation. Designed for #16-14 AWG wire, these blue butt connectors are suitable for connecting wires within the specified range and supporting step-down wiring applications where applicable.

Each connector is made from tinned copper with insulation designed to create a protected connection when properly installed. Heat-activated sealing helps provide long-term protection against environmental exposure, while the impact-resistant construction supports dependable use in a variety of wiring projects. The connectors are rated for applications up to 600 volts where applicable and operate across a temperature range of -55°C to 125°C.

With 25 connectors included, the Pacer TBSE14-25 pack is a convenient choice for electrical repairs, wire harness work, automotive wiring, marine applications, and other projects requiring insulated butt splices. Always select connectors according to the wire size, application requirements, and installation guidelines.

Key Features:

• Heat-shrink butt connector: Combines a crimp connection with heat-shrink insulation for added environmental protection when properly installed.
• 16-14 AWG wire range: Designed for compatible #16-14 AWG electrical wire.
• Tinned copper construction: Provides a conductive connector material for wire-splicing applications.
• Blue insulation: Makes the connector easy to identify during installation.
• Broad operating range: Rated for use from -55°C to 125°C.
• Convenient 25-pack: Supplies multiple connectors for repairs and wiring projects.

Product Details:

• Brand: Pacer
• Part Number: TBSE14-25
• Connector type: Heat-shrink butt connector
• Wire range: #16-14 AWG
• Insulation color: Blue
• Maximum wire insulation outer diameter: 0.21 inch
• Package quantity: 25 connectors
• Voltage rating: Up to 600 volts where applicable
• Compliance: UL, CSA, and RoHS compliant

Choose Pacer TBSE14-25 heat-shrink butt connectors for a convenient, properly sized solution for insulated wire-splicing projects.
