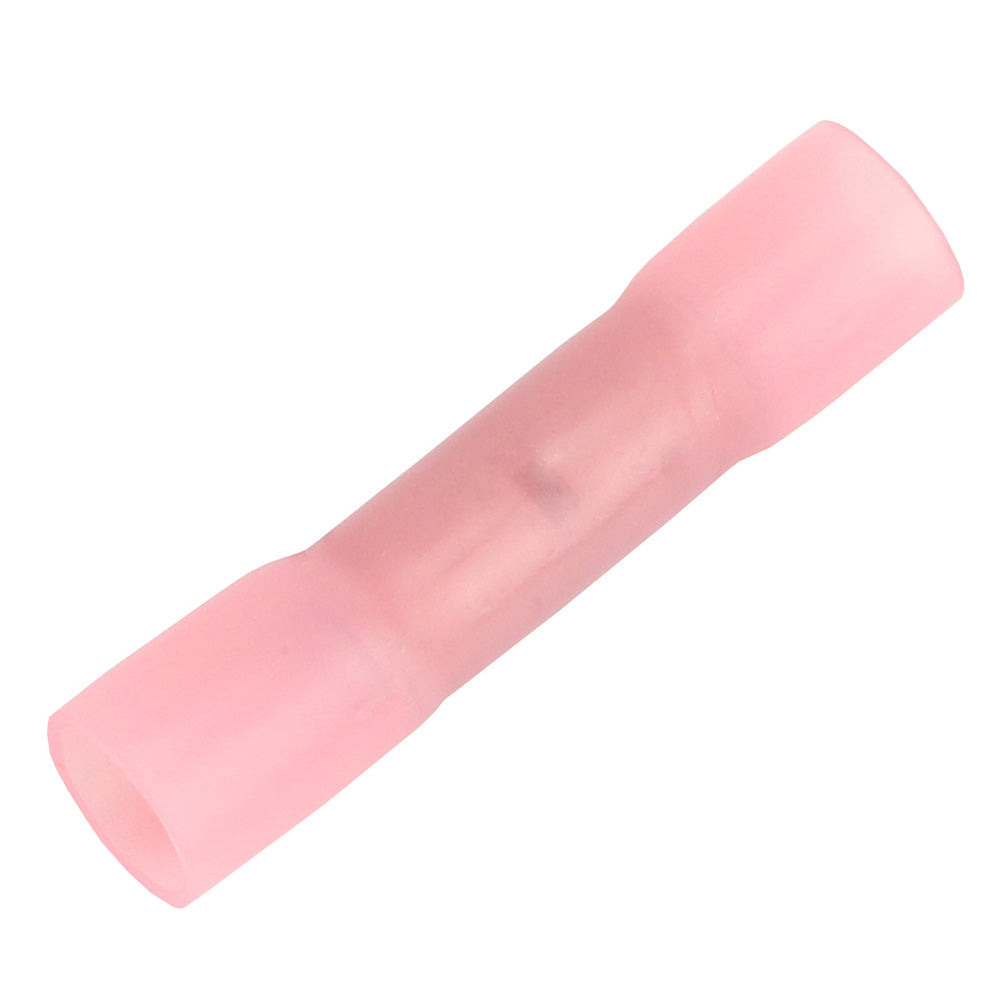

Pacer TBSE8-100 8 AWG Heat Shrink Butt Connectors, Pink, 100 Pack

8 AWG Heat Shrink Butt Connector - 100 Pack

Butt splices are a type of connector used to safely connect one or more wires to another wire. Their economical pricing and ease of use make them common in electrical systems. Heat shrink butt splices create an environmentally sealed connection to handle harsh conditions. They are simple to use. First, make sure you have correctly stripped the wires to the proper length. Inside the butt splice, you will see an indentation your wires should butt up against. Be careful to make sure that the butt splice and the wire insulation are touching. Otherwise, you run the risk of damaging the wire due to exposure. So, the stripped wire is inserted into one side of the butt splice and crimped with the proper tool. This crimp bends the connector around the wire, creating a solid connection. Next, you simply repeat the process on the other side. Alternatively, you can crimp the other end, creating a dead end. Before you heat it, dont forget the tug test. Once your wire is properly crimped, apply heat to the butt splice working outward. Be careful not to burn the butt splice or the wire insulation. And now youve created a durable, environmentally protected connection. Remember, butt splices are useful for their rapid installation and durability. Other methods of connection may not offer the same level of protection.

Terminals are a necessity for any electrical system. Heat shrink butt splices provide a rugged, environmentally sealed connection that is meant to last. These butt splices are designed for use with 8 AWG wires. How do you use 8 AWG heat shrink butt splices You start by preparing your wires. This means cutting and stripping them to the correct length. Every butt splice has an internal indentation of it where your wires should meet. So now, you insert the wire into the butt splice, making sure the tip touches the indentation. Using the proper tool, you need to crimp the side of the butt splice, which creates a solid connection. Repeat the process on the other side of the butt splice. Next, perform a tug test to make sure that the wires do not pull out. After that, use the proper heat gun or torch to correctly heat the outer heat shrink. Why use 8 AWG heat shrink butt splices Heat shrink butt splices offer the highest level of protection available. By using these splices, users are creating a moisture-proof seal that will last. Heat shrink butt splices protect connections from physical abuse and abrasion. They also protect from water, salt, and other corrosive compounds.

Features:

• Protects terminations from water, condensation, salt spray, and corrosion
• Added vibration protection in rugged environments
• Provides strain relief
• Cost-effective

Characteristics:

• Shrink ratio: Approx.: 3-1 at 135 C
• Operating Temp: -55 C - 125 C
• Vol. Resistivity: 1015 Ohm-cm3
• Dielectric Strength: 900-V/mil

Specifications:

• Wire Range: 8 AWG
• Insulation Color: Pink
• Max Wire Insulation Outer Diameter (inch): 0.35
• Base Material: Tinned Copper
• Voltage Rating: 600-V
• Package Size: 100

Compliances:

• UL
• CSA
• RoHS

Pacer TBSE8-100 8 AWG Heat Shrink Butt Connectors provide a practical solution for joining 8 AWG wires in electrical systems, automotive wiring, marine applications, and other demanding environments. Each tinned copper butt connector combines a crimp connection with heat-shrink insulation to help protect terminations from moisture, salt spray, corrosion, abrasion, and vibration.

Installation involves stripping the wires to the proper length, inserting each wire until it reaches the connector’s internal center stop, and crimping both sides with the appropriate tool. After performing a tug test, apply heat evenly to shrink the outer insulation and create an environmentally sealed connection. These Pacer heat shrink butt connectors also provide strain relief and support efficient, durable wire repairs and installations.

Designed for 8 AWG wire, each connector accommodates wire insulation with a maximum outside diameter of 0.35 inches and carries a 600-volt rating. The pink insulation makes the connectors easy to identify by wire size, while the 100-piece package provides a convenient supply for electrical projects, service work, and replacement needs.

Key Features:

• Environmentally sealed connection: Helps protect terminations from water, condensation, salt spray, and corrosive compounds.
• Rugged heat-shrink insulation: Adds protection against abrasion and vibration in demanding environments.
• Strain relief: Helps support the wire connection after crimping and shrinking.
• 8 AWG compatibility: Designed for use with 8 AWG wires and insulation up to 0.35 inches outside diameter.
• Convenient quantity: Includes 100 pink heat shrink butt connectors for installation and repair work.

Product Details:

• Brand: Pacer
• Part Number: TBSE8-100
• Connector type: Heat shrink butt connector
• Wire range: 8 AWG
• Insulation color: Pink
• Base material: Tinned copper
• Maximum wire insulation outside diameter: 0.35 inches
• Voltage rating: 600 volts
• Shrink ratio: Approximately 3:1 at 275°F
• Operating temperature: -67°F to 257°F
• Volume resistivity: 10¹⁵ ohm-cm³
• Dielectric strength: 900 V/mil
• Package quantity: 100
• Compliances: UL, CSA, and RoHS

Choose Pacer TBSE8-100 heat shrink butt connectors for organized, protected 8 AWG wire connections in electrical installation and repair applications.
