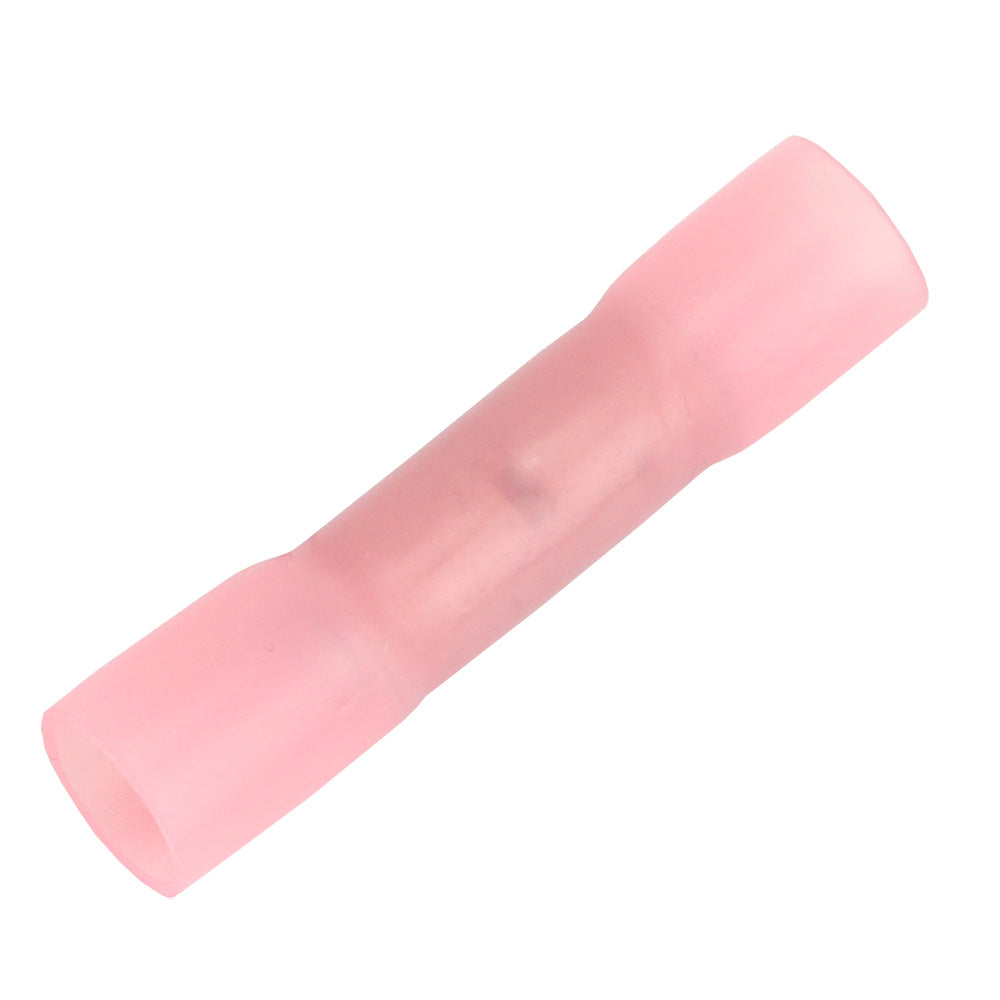

Pacer TBSE8-25 8 AWG Heat Shrink Butt Connectors, Pink, 25-Pack

8 AWG Heat Shrink Butt Connector - 25 Pack

Butt splices are crimp connectors used to safely connect one or more wires to another wire. Step-down butt splices are meant to connect a higher-gauge wire to a lower-gauge wire. They could also be used to connect two or more smaller-gauge wires to a single wire. When selecting which type to get, pay special attention to whether they are epoxy lined or not. Many manufacturers do not line the interior of their butt splices with meltable glue. This epoxy reacts to heat and expands, creating a superior, environmentally sealed connection.

Features:

• Made from tinned copper and various insulations
• Up to 600 Volts
• Not applicable to all styles
• Operating Temp: -55C to 125C
• UL, CSA, RoHS Compliant

Benefits Protections

• Impact Resistant
• Multiple Uses
• Long Term Protection
• Easy to Install

Specifications:

• Wire Range: #8 AWG
• Insulation Color: Pink
• Max Wire Insulation Outer Diameter (inch): 0.35
• Package Size: Twenty-five

Pacer TBSE8-25 8 AWG Heat Shrink Butt Connectors provide a practical way to join compatible wires in automotive, marine, electrical, and general wiring applications. Designed for #8 AWG wire, these crimp-style butt connectors feature heat-shrink insulation to help create a protected connection when properly installed. The 25-piece package is suited for repair work, electrical projects, and keeping replacement connectors available for future installations.

Each connector is made from tinned copper with insulation designed for dependable wire joining. The heat-activated epoxy lining expands when heated to help form an environmentally sealed connection, offering long-term protection against common installation conditions. These connectors are impact resistant and easy to install with the appropriate crimping and heat-shrink tools. They can also be used in step-down applications where a higher-gauge wire is connected to a lower-gauge wire, when the connector is suitable for the specific wiring configuration.

Key Features:

• 8 AWG Wire Compatibility: Sized for use with #8 AWG wire in suitable butt-splice applications.
• Heat-Shrink Construction: Heat-activated epoxy helps create an environmentally sealed connection after installation.
• Tinned Copper: Provides the conductive connector material for crimped wire joins.
• Durable Protection: Impact-resistant construction supports long-term protection in appropriate applications.
• Broad Electrical Rating: Rated up to 600 volts where applicable to the connector style.
• Convenient Pack Size: Includes 25 pink heat-shrink butt connectors for repairs and projects.

Product Details:

• Brand: Pacer
• Part Number: TBSE8-25
• Connector Type: Heat-shrink butt connector
• Wire Range: #8 AWG
• Insulation Color: Pink
• Maximum Wire Insulation Outer Diameter: 0.35 inch
• Package Quantity: 25 connectors
• Operating Temperature: -55°C to 125°C
• Compliance: UL, CSA, and RoHS compliant

Choose Pacer TBSE8-25 heat-shrink butt connectors for a convenient, protected solution for compatible #8 AWG wire connections.
