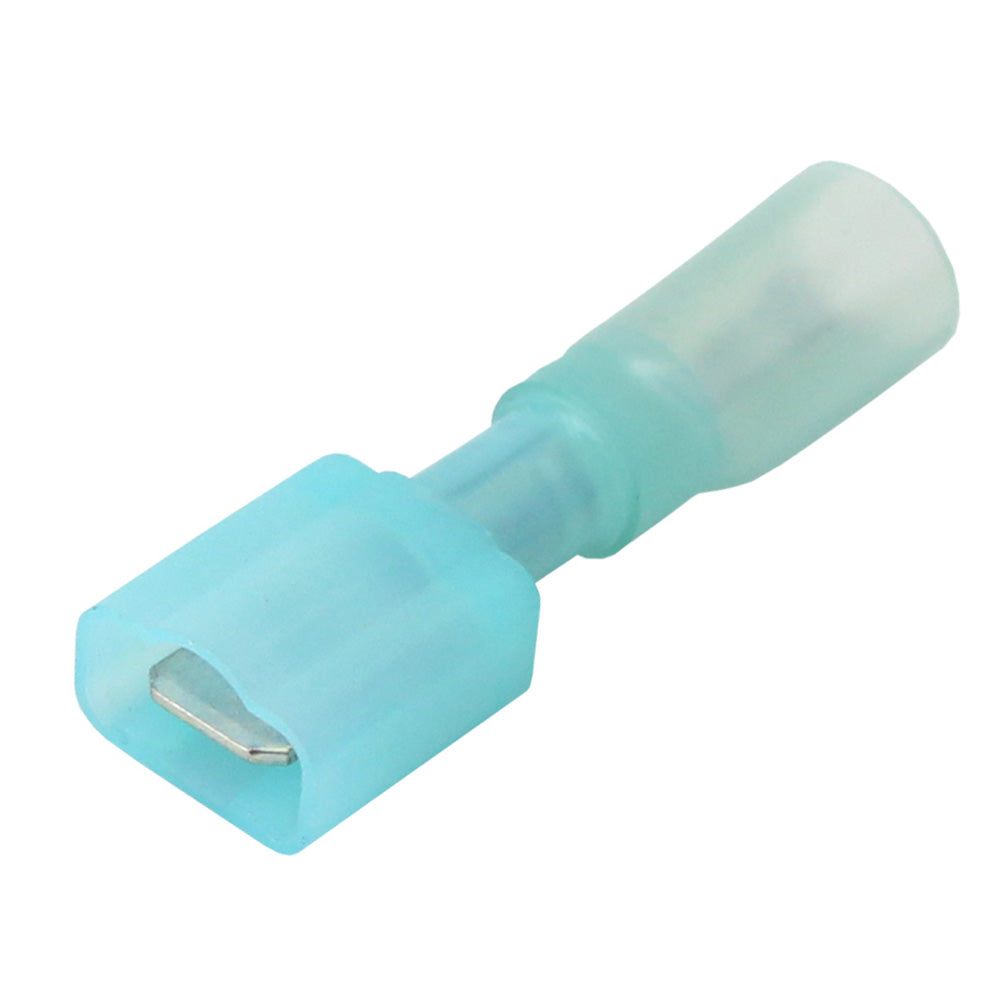

16-14 AWG Fully-Insulated Male Disconnect Terminal - Blue - 100 Pack
Creating a solid connection is important in every part of an electrical system. Being able to disconnect and reconnect makes maintenance that much easier. With Pacers heat shrink fully insulated disconnect terminals, users get the best of both worlds. Heat shrink terminals protect against the elements in the most challenging of environments. They offer the best moisture protection available. How do they do this These heat shrink fully insulated disconnect terminals have a built-in heat-activated adhesive liner.
This liner provides a rugged, environmentally sealed connection for wires from 22 AWG - 10 AWG. No longer will users need to worry about exposure to water, oil, gas, or other corrosive compounds. These terminals even protect connections from physical abuse and abrasion. Disconnects allow the user to easily separate the connection if needed. This makes removing a piece of equipment or completing field service maintenance a breeze. The insulation color indicates the wire gauge the terminal should be used on. Red insulation is for 22-18 AWG. Blue insulation is for 16-14 AWG. Yellow insulation is for 12-10 AWG. Selecting the correct heat shrink fully insulated disconnect terminal isnt an easy task. Contact a Pacer expert today with any questions that you may have.
Features:
- Protects terminations from water, condensation, salt spray and corrosion
- Added vibration protection in rugged environments
- Provides strain relief
Characteristics:
- Shrink Ratio: Approx. 3:1 at 135 C
- Operating Temp: -55 C - 125 C
- Vol. Resistivity: 1015 Ohm-cm3
- Dielectric Strength: 900-V/mil
- Voltage Rating: 600-V
Specifications:
- AWG: 16-14
- Disc./Bullet Size: 0.250 in.
- Insulation Color: Blue
- Package Size: 100
Compliances:
Pacer TDE14-250FIM-100 heat shrink male disconnect terminals provide a reliable, serviceable connection for 16-14 AWG wire in automotive, marine, electrical, and other demanding applications. The blue, fully insulated terminals feature a built-in heat-activated adhesive liner that forms an environmentally sealed connection when properly installed, helping protect the termination from moisture, corrosion, abrasion, and vibration.
Designed for convenient maintenance and field service, these 0.250-inch male disconnect terminals allow connected equipment or wiring to be separated and reconnected as needed. The disconnect design is useful when removing equipment, servicing electrical systems, or making repairs without cutting the wire. The adhesive-lined heat shrink insulation also provides strain relief and helps shield the connection from water, condensation, salt spray, oil, gas, and other corrosive compounds.
Blue insulation identifies the correct wire range for 16-14 AWG conductors. The terminal has an approximate 3:1 shrink ratio at 135 degrees Celsius, an operating temperature range of -55 to 125 degrees Celsius, a 600-volt rating, and a dielectric strength of 900 volts per mil. With 100 terminals included, this Pacer package is suited for electrical repair kits, production work, equipment installation, and ongoing maintenance.
Choose Pacer TDE14-250FIM-100 terminals when you need heat shrink protection and convenient disconnect functionality for 16-14 AWG wiring.
Key Features:
-
Heat-Activated Adhesive Liner: Creates an environmentally sealed connection when properly heat-shrunk.
-
Moisture and Corrosion Protection: Helps protect terminations from water, condensation, salt spray, and corrosive compounds.
-
Fully Insulated Disconnect: Supports convenient separation and reconnection during equipment removal and maintenance.
-
Rugged Electrical Protection: Helps provide vibration protection, strain relief, and resistance to physical abrasion.
-
Color-Coded Insulation: Blue insulation identifies compatibility with 16-14 AWG wire.
Product Details:
-
Brand: Pacer
-
Part Number: TDE14-250FIM-100
-
Terminal Type: Fully insulated heat shrink male disconnect
-
Wire Range: 16-14 AWG
-
Disconnect Size: 0.250 inch
-
Insulation Color: Blue
-
Package Quantity: 100 terminals
-
Shrink Ratio: Approximately 3:1 at 135 degrees Celsius
-
Operating Temperature: -55 to 125 degrees Celsius
-
Volume Resistivity: 10^15 ohm-cm3
-
Dielectric Strength: 900 volts per mil
-
Voltage Rating: 600 volts
-
Compliances: UL, CSA, and RoHS
Select Pacer TDE14-250FIM-100 for dependable, serviceable connections on 16-14 AWG electrical wiring.
