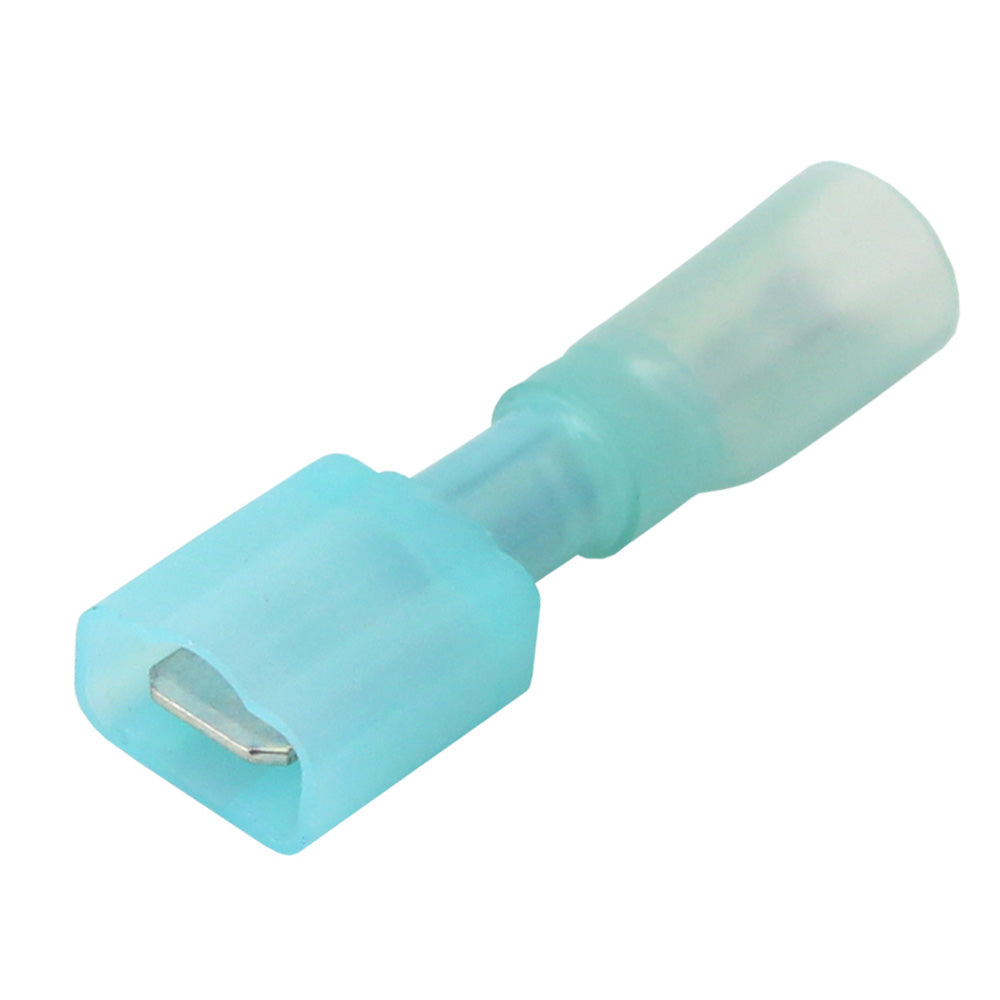

Pacer TDE14-250FIM-25 16-14 AWG Blue Fully Insulated Male Disconnect Terminals, 25 Pack

16-14 AWG Fully-Insulated Male Disconnect Terminal - Blue - 25 Pack

Creating a solid connection is important in every part of an electrical system. Being able to disconnect and reconnect makes maintenance that much easier. With Pacers heat-shrink fully insulated disconnect terminals, users get the best of both worlds. Heat shrink terminals protect against the elements in the most challenging of environments. They offer the best moisture protection available. How do they do this This heat-shrink fully insulated disconnect terminals have a built-in heat-activated adhesive liner.

This liner provides a rugged, environmentally sealed connection for wires from 22 AWG - 10 AWG. No longer will users need to worry about exposure to water, oil, gas, or other corrosive compounds. These terminals even protect connections from physical abuse and abrasion. Disconnects allow the user to easily separate the connection if needed. This makes removing a piece of equipment or completing field service maintenance a breeze. The insulation color indicates the wire gauge the terminal should be used on. Red insulation is for 22-18 AWG. Blue insulation is for 16-14 AWG. Yellow insulation is for 12-10 AWG. Selecting the correct heat shrink fully insulated disconnect terminal isnt an easy task. Contact a Pacer expert today with any questions that you may have.

Features:

• Protects terminations from water, condensation, salt spray, and corrosion
• Added vibration protection in rugged environments
• Provides strain relief

Characteristics:

• Shrink Ratio: Approx. 3:1 at 135 C
• Operating Temp: -55 C - 125 C
• Vol. Resistivity: 1015 Ohm-cm3
• Dielectric Strength: 900-V/mil
• Voltage Rating: 600-V

Specifications:

• AWG: 16-14
• Disc./Bullet Size: 0.250 in.
• Insulation Color: Blue
• Package Size: 25

Compliances:

• UL
• CSA
• RoHS

Pacer TDE14-250FIM-25 fully insulated male disconnect terminals provide a reliable, serviceable connection for 16-14 AWG wires in electrical systems where moisture, corrosion, vibration, and abrasion protection matter. The blue insulation identifies the correct wire-gauge range, while the male disconnect design allows connections to be separated and reconnected efficiently during equipment removal, maintenance, or field service.

Each terminal uses heat-shrink insulation with a built-in heat-activated adhesive liner. When properly installed, the liner helps create an environmentally sealed connection that protects the termination from water, condensation, salt spray, oil, gas, and other corrosive compounds. The heat-shrink construction also provides strain relief and added vibration protection for demanding electrical applications. With a 0.250-inch disconnect size and a 600-volt rating, these terminals are suited for organized, serviceable wiring installations that require a durable insulated disconnect.

Key Features:

• Heat-shrink insulation: Built-in heat-activated adhesive liner helps seal the wire connection against moisture and corrosive exposure.
• 16-14 AWG compatibility: Blue insulation identifies the terminal for use with 16-14 AWG wire.
• Male disconnect design: Allows convenient separation and reconnection for equipment service, removal, and maintenance.
• Environmental protection: Helps protect terminations from water, condensation, salt spray, corrosion, oil, gas, and abrasion.
• Vibration and strain relief: Supports connections in rugged environments by helping reduce the effects of vibration and wire strain.

Product Details:

• Brand: Pacer
• Part Number: TDE14-250FIM-25
• Terminal Type: Fully insulated male disconnect
• Compatible Wire Range: 16-14 AWG
• Disconnect Size: 0.250 inch
• Insulation Color: Blue
• Package Quantity: 25 terminals
• Shrink Ratio: Approximately 3:1 at 275°F
• Operating Temperature: -67°F to 257°F
• Dielectric Strength: 900 V/mil
• Voltage Rating: 600 volts
• Compliances: UL, CSA, and RoHS

Choose Pacer TDE14-250FIM-25 terminals for a serviceable, heat-shrink electrical connection designed to support dependable wiring maintenance and protection.
