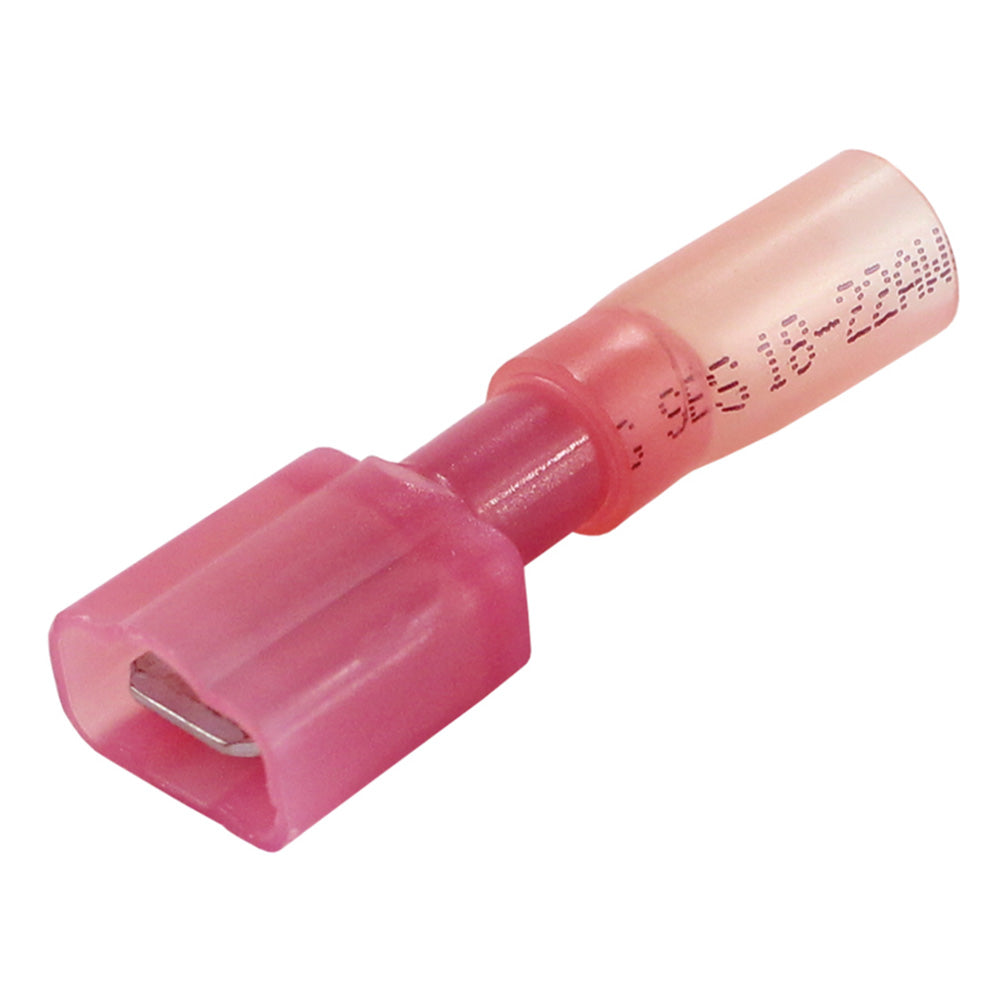

22-18 AWG Fully-Insulated Male Disconnect Terminal - Red - 100 Pack
Creating a solid connection is important in every part of an electrical system. Being able to disconnect and reconnect makes maintenance that much easier. With Pacers heat-shrink fully insulated disconnect terminals, users get the best of both worlds. Heat shrink terminals protect against the elements in the most challenging of environments. They offer the best moisture protection available. How do they do this This heat-shrink fully insulated disconnect terminals have a built-in heat-activated adhesive liner.
This liner provides a rugged, environmentally sealed connection for wires from 22 AWG - 10 AWG. No longer will users need to worry about exposure to water, oil, gas, or other corrosive compounds. These terminals even protect connections from physical abuse and abrasion. Disconnects allow the user to easily separate the connection if needed. This makes removing a piece of equipment or completing field service maintenance a breeze. The insulation color indicates the wire gauge the terminal should be used on. Red insulation is for 22-18 AWG. Blue insulation is for 16-14 AWG. Yellow insulation is for 12-10 AWG. Selecting the correct heat shrink fully insulated disconnect terminal isnt an easy task. Contact a Pacer expert today with any questions that you may have.
Features:
- Protects terminations from water, condensation, salt spray, and corrosion
- Added vibration protection in rugged environments
- Provides strain relief
Characteristics:
- Shrink Ratio: Approx. 3:1 at 135 C
- Operating Temp: -55 C - 125 C
- Vol. Resistivity: 1015 Ohm-cm3
- Dielectric Strength: 900-V/mil
- Voltage Rating: 600-V
Specifications:
- AWG: 22-18
- Disc./Bullet Size: 0.250 in.
- Insulation Color: Red
- Package Size: 100
Compliances:
Pacer TDE18-250FIM-100 22-18 AWG Fully Insulated Male Disconnect Terminals provide a dependable, serviceable way to connect and disconnect wires in electrical systems. Designed for 22-18 AWG wire, these red male disconnect terminals feature heat-shrink insulation with a built-in heat-activated adhesive liner that helps create an environmentally sealed connection when properly installed. The 100-pack is suited for electrical assembly, equipment installation, repairs, and field maintenance where accessible disconnects are important.
Heat-shrink insulation helps protect terminations from water, condensation, salt spray, corrosion, oil, gas, and other corrosive compounds. The sealed design also helps provide protection against physical abrasion, vibration, and strain at the connection. The male disconnect format allows equipment or wiring sections to be separated when servicing or removing components, helping simplify maintenance without cutting the connection.
Red insulation identifies the correct wire range for this terminal: 22-18 AWG. The terminal has a 0.250-inch disconnect or bullet size and an approximate 3:1 shrink ratio at 275°F. With a 600-volt rating and an operating temperature range from -67°F to 257°F, the Pacer TDE18-250FIM-100 is a practical choice for properly matched electrical connections in demanding environments. Always select the terminal based on the wire gauge and application requirements.
KEY FEATURES:
-
Heat-Shrink Sealing: Built-in heat-activated adhesive liner helps create a rugged, environmentally sealed wire connection.
-
Environmental Protection: Helps protect terminations from water, condensation, salt spray, corrosion, oil, gas, and other corrosive compounds.
-
Serviceable Disconnect: Male disconnect design allows wiring or equipment connections to be separated for maintenance and removal.
-
Vibration and Strain Protection: Helps protect connections in rugged environments while providing strain relief.
-
Color-Coded Insulation: Red insulation identifies compatibility with 22-18 AWG wire.
PRODUCT DETAILS:
-
Brand: Pacer
-
Part Number: TDE18-250FIM-100
-
Terminal Type: Fully insulated heat-shrink male disconnect terminal
-
Wire Range: 22-18 AWG
-
Disconnect/Bullet Size: 0.250 inch
-
Insulation Color: Red
-
Package Quantity: 100 terminals
-
Shrink Ratio: Approximately 3:1 at 275°F
-
Operating Temperature: -67°F to 257°F
-
Dielectric Strength: 900 V/mil
-
Voltage Rating: 600 V
-
Compliance: UL, CSA, and RoHS
Choose Pacer TDE18-250FIM-100 terminals for organized, serviceable 22-18 AWG electrical connections with heat-shrink insulation and added environmental protection.
