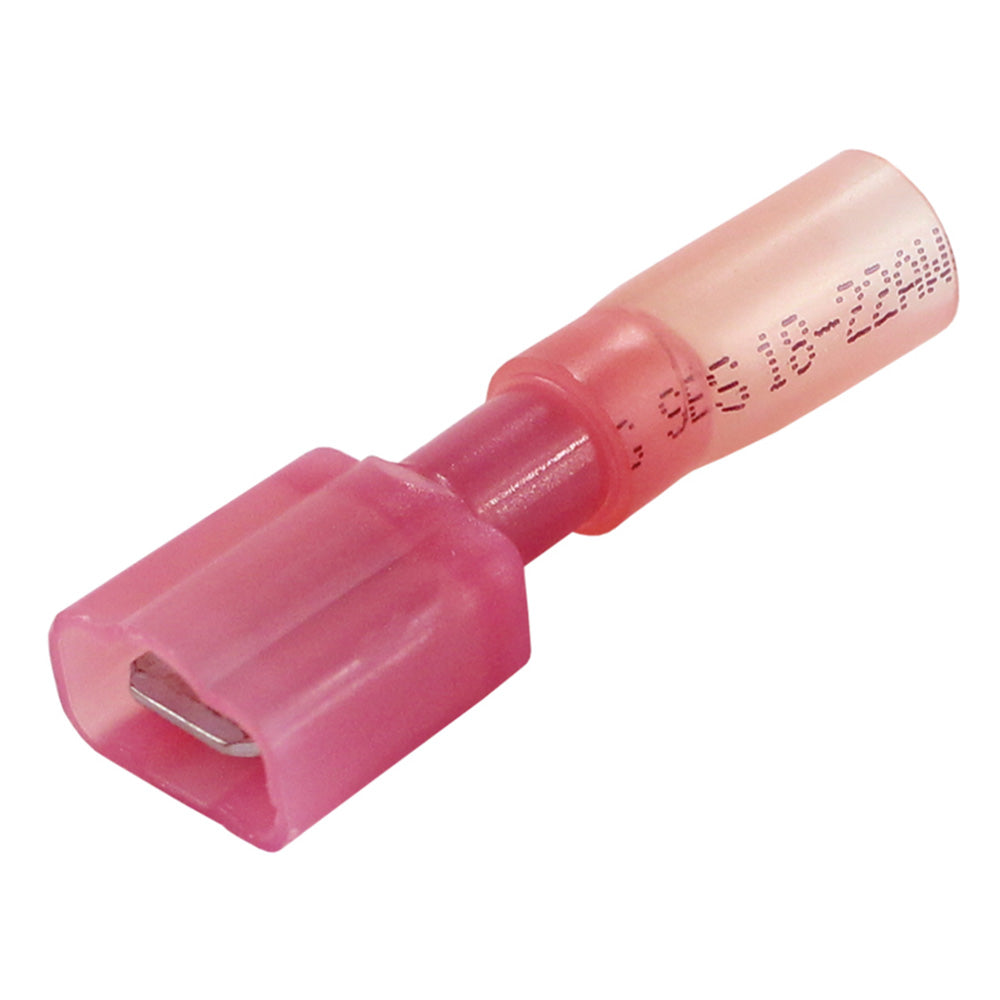

22-18 AWG Fully-Insulated Male Disconnect Terminal - Red - 25 Pack
Creating a solid connection is important in every part of an electrical system. Being able to disconnect and reconnect makes maintenance that much easier. With Pacers heat-shrink fully insulated disconnect terminals, users get the best of both worlds. Heat shrink terminals protect against the elements in the most challenging of environments. They offer the best moisture protection available. How do they do this This heat-shrink fully insulated disconnect terminals have a built-in heat-activated adhesive liner.
This liner provides a rugged, environmentally sealed connection for wires from 22 AWG - 10 AWG. No longer will users need to worry about exposure to water, oil, gas, or other corrosive compounds. These terminals even protect connections from physical abuse and abrasion. Disconnects allow the user to easily separate the connection if needed. This makes removing a piece of equipment or completing field service maintenance a breeze. The insulation color indicates the wire gauge the terminal should be used on. Red insulation is for 22-18 AWG. Blue insulation is for 16-14 AWG. Yellow insulation is for 12-10 AWG. Selecting the correct heat shrink fully insulated disconnect terminal isnt an easy task. Contact a Pacer expert today with any questions that you may have.
Features:
- Protects terminations from water, condensation, salt spray, and corrosion
- Added vibration protection in rugged environments
- Provides strain relief
Characteristics:
- Shrink Ratio: Approx. 3:1 at 135 C
- Operating Temp: -55 C - 125 C
- Vol. Resistivity: 1015 Ohm-cm3
- Dielectric Strength: 900-V/mil
- Voltage Rating: 600-V
Specifications:
- AWG: 22-18
- Disc./Bullet Size: 0.250 in.
- Insulation Color: Red
- Package Size: 25
Compliances:
Pacer TDE18-250FIM-25 fully insulated male disconnect terminals provide a dependable way to create serviceable wire connections for electrical systems using 22-18 AWG wire. Designed with red heat-shrink insulation and a 0.250-inch disconnect size, these terminals help make equipment removal, field service, and routine maintenance more convenient.
The built-in heat-activated adhesive liner forms an environmentally sealed connection when properly installed, helping protect the termination from water, condensation, salt spray, oil, gas, corrosion, vibration, strain, and abrasion. The male disconnect design allows the connection to be separated and reconnected as needed, making it useful for applications where service access and removable equipment connections are important.
Pacer heat-shrink fully insulated disconnect terminals are color-coded for wire gauge identification. Red insulation is intended for 22-18 AWG wire. Each terminal is rated for up to 600 volts and features an approximate 3:1 shrink ratio at 275°F. Use these terminals for electrical wiring projects that require a compact, insulated, and serviceable male disconnect connection.
Key Features:
-
Heat-shrink insulation: Helps create an environmentally sealed connection with the built-in heat-activated adhesive liner.
-
Protection from harsh conditions: Helps protect terminations from water, condensation, salt spray, oil, gas, corrosion, vibration, and abrasion.
-
Serviceable disconnect design: Allows wires to be disconnected and reconnected for equipment removal and field maintenance.
-
Strain relief: Helps support the wire connection in demanding electrical environments.
-
Color-coded sizing: Red insulation identifies terminals intended for 22-18 AWG wire.
Product Details:
-
Brand: Pacer
-
Part Number: TDE18-250FIM-25
-
Terminal type: Fully insulated male disconnect terminal
-
Compatible wire size: 22-18 AWG
-
Disconnect size: 0.250 inch
-
Insulation color: Red
-
Package quantity: 25 terminals
-
Shrink ratio: Approximately 3:1 at 275°F
-
Operating temperature: -67°F to 257°F
-
Voltage rating: 600 volts
-
Compliance: UL, CSA, and RoHS
Choose Pacer TDE18-250FIM-25 terminals when you need a compact, insulated, and disconnectable connection for 22-18 AWG electrical wiring.
