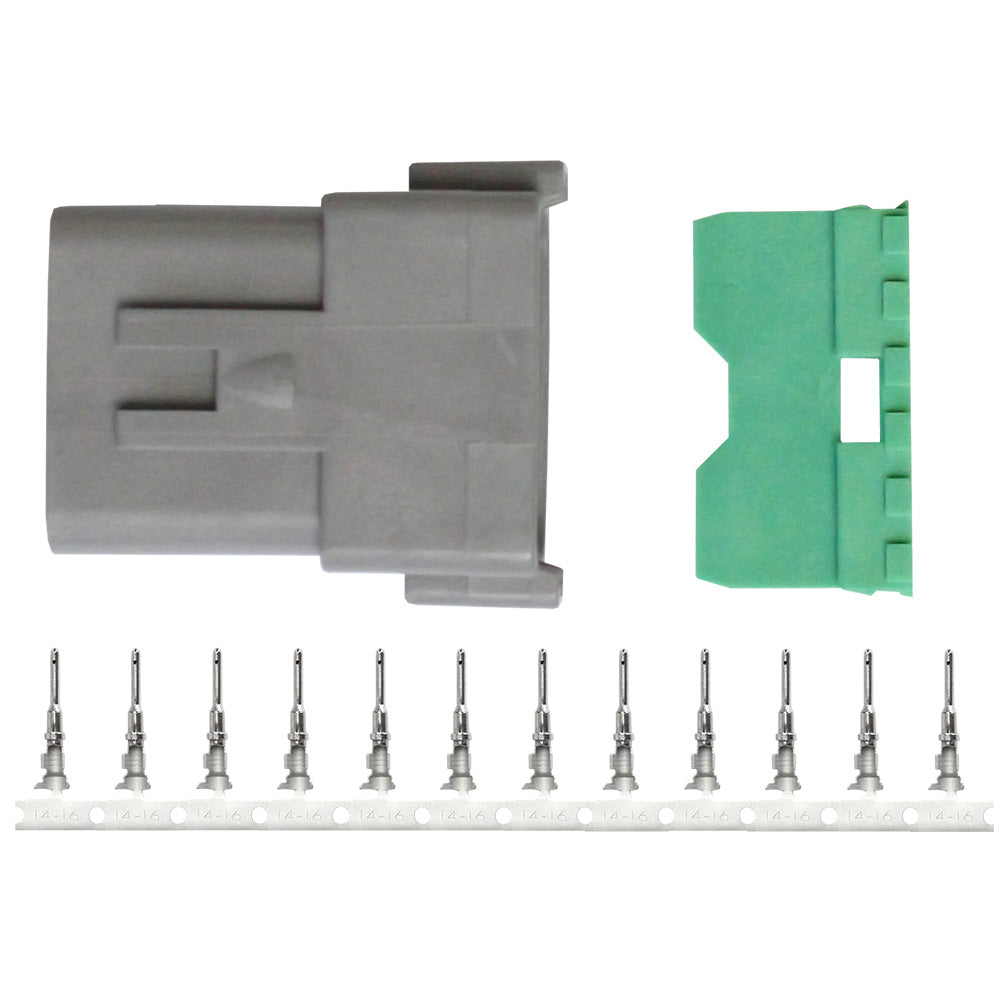

Pacer TDT04F-12RP DT Deutsch Receptacle Repair Kit, 12-Position, 14–18 AWG

DT Deutsch Receptacle Repair Kit - 14-18 AWG (12 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 18-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (18-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

• Packs include all parts needed to assemble a connector
• One to two extra terminals
• Cavity plugs to seal open circuits

Applications:

• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K
• EU RoHS/ELV
• Standard UL-94 Recognized

Characteristics:

• Wedge locks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand-insertable and removable contacts

Technical Specifications:

• Number of Cavities: 12
• Housing: Rectangular receptacle, plastic reinforced with glass fiber
• Contact Size: 16 (13 amp)
• Wire Size: 14 AWG
• Holds Pin/Socket: Pins
• Operating Temperature: -55C to 125C

Contents:

• (1) 12 pos. receptacle
• (1) 12 pos. wedge lock
• (14) pins
• (6) cavity plugs

Pacer TDT04F-12RP DT Deutsch Receptacle Repair Kit provides the components needed to assemble or repair a 12-position DT series wire-to-wire connector for 14–18 AWG applications. Designed for electrical wiring projects that require durable connector components, this kit includes a rectangular receptacle, wedge lock, pins, and cavity plugs in one convenient package.

The DT series uses size 16 contacts with a 13-amp continuous capacity and supports multiple contact sizes within a single connector shell. Wedge locks help maintain contact alignment and retention, while redundant silicone seals help protect unused circuits and support the connector’s sealed design. Contacts are hand-insertable and removable for practical assembly and service work.

With its glass-fiber-reinforced plastic housing and enclosed connector design, the Pacer DT Deutsch receptacle repair kit is suited to wire-to-wire applications where field-proven reliability and rugged construction are important. The included cavity plugs help seal open circuits, and the kit contains extra terminals to support connector assembly and repair needs.

Key Features:

• Complete repair kit: Includes the receptacle, wedge lock, pins, and cavity plugs needed to assemble a 12-position connector.
• 14–18 AWG compatibility: Uses size 16 contacts for DT series applications with 14–18 AWG wire.
• Contact retention: Wedge lock helps maintain contact alignment and retention.
• Sealed connector design: Redundant silicone seals and cavity plugs help seal unused circuits.
• Serviceable contacts: Pins are hand-insertable and removable for assembly and repair.
• Connector protection: Rated IP68 and IP6K9K, with EU RoHS/ELV and UL-94 recognition listed by the manufacturer.

Product Details:

• Brand: Pacer
• Part number: TDT04F-12RP
• Connector type: DT Deutsch rectangular receptacle repair kit
• Number of cavities: 12
• Housing: Plastic reinforced with glass fiber
• Contact size: 16, rated 13 amp
• Wire size: 14–18 AWG
• Contact type: Pins
• Operating temperature: -55°C to 125°C
• Package contents: One 12-position receptacle, one 12-position wedge lock, 14 pins, and six cavity plugs

Choose the Pacer TDT04F-12RP when you need a clearly specified DT Deutsch receptacle repair kit for 12-position, 14–18 AWG wire-to-wire connector applications.
