Pacer TDT04F-3RP DT Deutsch Receptacle Repair Kit, 3-Position, 14–18 AWG

DT Deutsch Receptacle Repair Kit - 14-18 AWG (3 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 18-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (18-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

• Packs include all parts needed to assemble a connector
• One to two extra terminals
• Cavity plugs to seal open circuits

Applications:

• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K
• EU RoHS/ELV
• Standard UL-94 Recognized

Characteristics:

• Wedge locks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand-insertable and removable contacts

Technical Specifications:

• Number of Cavities: 3
• Housing: Rectangular receptacle, plastic reinforced with glass fiber
• Contact Size: 16 (13 amp)
• Wire Size: 14 AWG
• Holds Pin/Socket: Pins
• Operating Temperature: -55C to 125C

Contents:

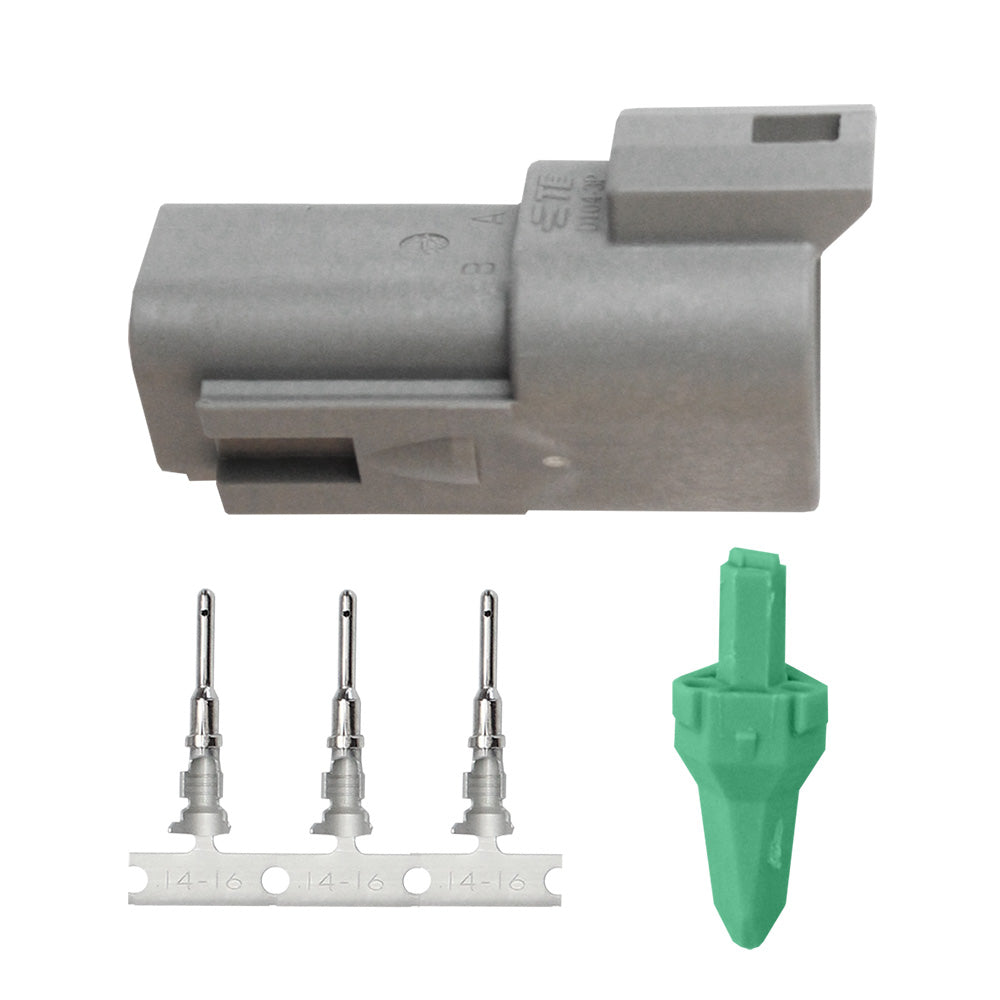

• (1) 3 pos. receptacle
• (1) 3 pos. wedge lock
• (4) pins
• (1) cavity plug

The Pacer TDT04F-3RP DT Deutsch Receptacle Repair Kit provides the components needed to assemble a three-position wire-to-wire connector for applications using 14–18 AWG wire. Designed around size 16 contacts with a 13-amp continuous capacity, this kit helps electrical designers and technicians build reliable DT series connections using multiple contact sizes within a single connector shell.

The enclosed DT series receptacle uses a glass-fiber-reinforced plastic housing, wedge-lock contact retention, and redundant silicone seals. Hand-insertable and removable contacts support serviceability, while the included cavity plug helps seal an unused circuit. These features make the Pacer repair kit suitable for rugged wire-to-wire connector applications where contact alignment, retention, and environmental sealing are important.

Key Features

• Complete connector assembly kit: Includes the receptacle, wedge lock, pins, and cavity plug needed to assemble a three-position connector.
• 14–18 AWG wire compatibility: Uses DT series size 16 contacts for applications using the specified wire gauge range.
• Three-position receptacle: Supports three connector cavities in a compact rectangular housing.
• Reliable contact retention: Wedge locks help maintain contact alignment and retention.
• Serviceable contacts: Pins can be inserted and removed by hand for practical assembly and repair work.
• Environmental protection: Redundant silicone seals and a cavity plug help seal open circuits; the connector is rated IP68 and IP6K9K.

Product Details

• Brand: Pacer
• Part number: TDT04F-3RP
• Connector type: DT Deutsch rectangular receptacle repair kit
• Number of cavities: 3
• Contact size: Size 16, 13 amp continuous capacity
• Wire size: 14–18 AWG
• Contact type: Pins
• Housing material: Glass-fiber-reinforced plastic
• Operating temperature: -55°C to 125°C
• Contents: One three-position receptacle, one three-position wedge lock, four pins, and one cavity plug
• Compliances: IP68, IP6K9K, EU RoHS/ELV, and UL-94 Recognized

Choose the Pacer TDT04F-3RP when you need a complete DT Deutsch receptacle repair kit for serviceable, sealed wire-to-wire connections using 14–18 AWG wire.
