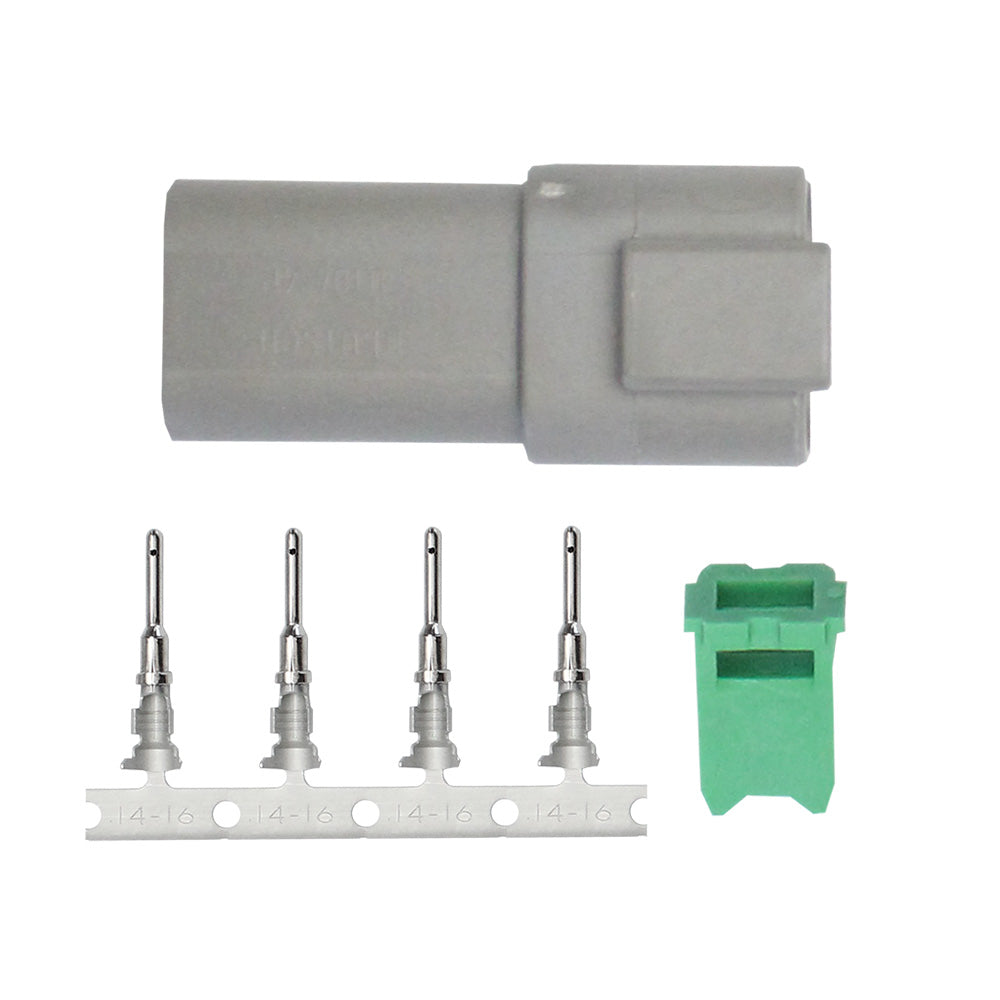

Pacer TDT04F-4RP DT Deutsch 4-Position Receptacle Repair Kit for 14–18 AWG Wire

DT Deutsch Receptacle Repair Kit - 14-18 AWG (4 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 18-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (18-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

• Packs include all parts needed to assemble a connector
• One to two extra terminals
• Cavity plugs to seal open circuits

Applications:

• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K
• EU RoHS/ELV
• Standard UL-94 Recognized

Characteristics:

• Wedge locks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand-insertable and removable contacts

Technical Specifications:

• Number of Cavities: 4
• Housing: Rectangular receptacle, plastic reinforced with glass fiber
• Contact Size: 16 (13 amp)
• Wire Size: 14 AWG
• Holds Pin/Socket: Pins
• Operating Temperature: -55C to 125C

Contents:

• (1) 4 pos. receptacle
• (1) 4 pos. wedge lock
• (5) pins
• (2) cavity plugs

The Pacer TDT04F-4RP DT Deutsch Receptacle Repair Kit provides the essential components for assembling a reliable four-position wire-to-wire connector for 14–18 AWG applications. Designed around size 16 contacts with a 13-amp continuous capacity, this repair kit is suited for electrical repair, replacement, and connector assembly work where secure contact alignment and environmental sealing are important.

The kit includes a rectangular receptacle housing, wedge lock, five pins, and two cavity plugs. The enclosed DT series connector design supports rugged field applications, while hand-insertable and removable contacts simplify assembly and service. Redundant silicone seals and cavity plugs help seal unused circuits, and wedge locks help maintain contact alignment and retention within the connector housing.

Key Features:

• Complete repair kit: Includes the parts needed to assemble one four-position receptacle connector.
• 14–18 AWG application range: Supports DT series wiring applications using size 16 contacts.
• 13-amp contacts: Includes size 16 pins rated for a 13-amp continuous capacity.
• Secure contact retention: Wedge lock helps maintain contact alignment and retention.
• Sealed connector design: Redundant silicone seals and cavity plugs support enclosed circuit applications.
• Serviceable contacts: Contacts can be inserted and removed by hand for repair and assembly work.

Product Details:

• Brand: Pacer
• Part number: TDT04F-4RP
• Connector type: DT Deutsch rectangular receptacle repair kit
• Number of cavities: 4
• Contact size: 16, 13 amp
• Wire size: 14–18 AWG
• Contact configuration: Pins
• Housing: Glass-fiber-reinforced plastic
• Operating temperature: -55°C to 125°C
• Ingress protection: IP68 and IP6K9K
• Compliance: EU RoHS/ELV and UL-94 Recognized
• Kit contents: One four-position receptacle, one four-position wedge lock, five pins, and two cavity plugs

Choose the Pacer TDT04F-4RP when you need a clearly specified DT Deutsch receptacle repair kit for 14–18 AWG wire-to-wire connector applications.
