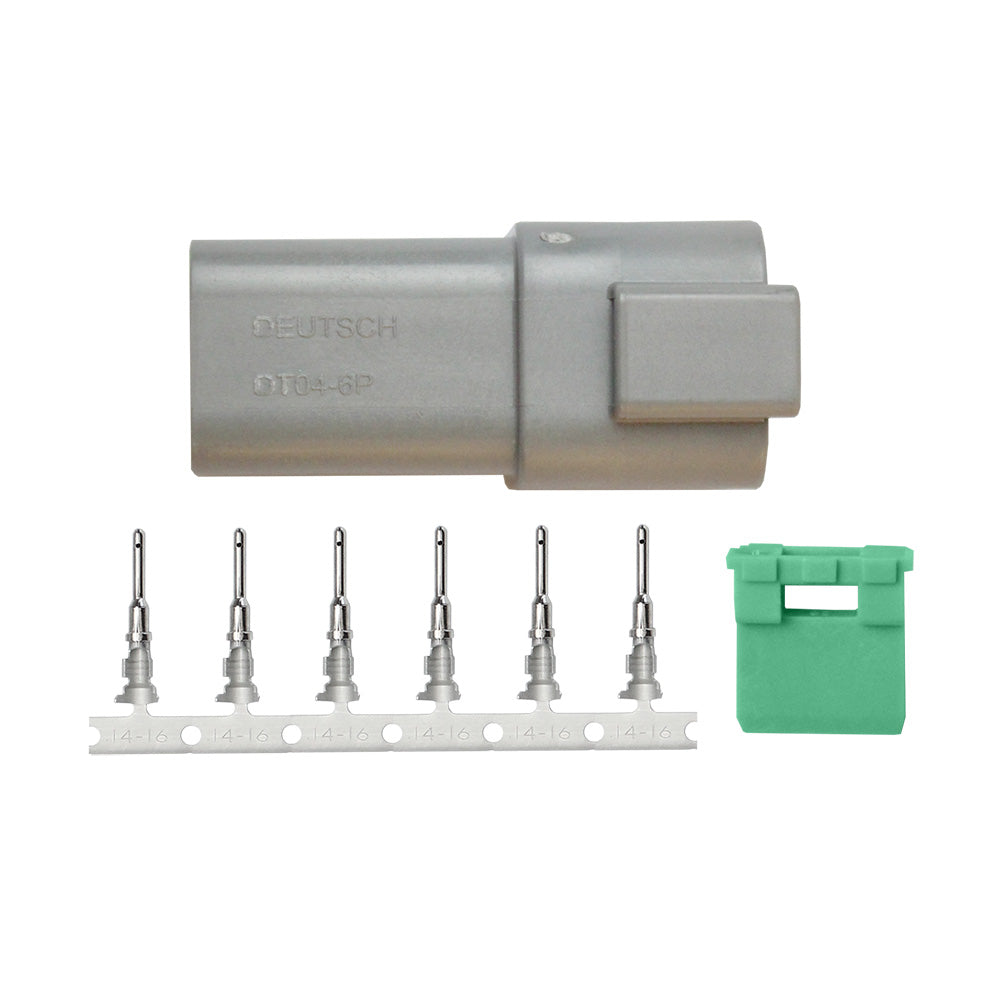

Pacer TDT04F-6RP DT Deutsch Receptacle Repair Kit, 6-Position, 14-18 AWG

DT Deutsch Receptacle Repair Kit - 14-18 AWG (6 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 18-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (18-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

• Packs include all parts needed to assemble a connector
• One to two extra terminals
• Cavity plugs to seal open circuits

Applications:

• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K
• EU RoHS/ELV
• Standard UL-94 Recognized

Characteristics:

• Wedge locks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand-insertable and removable contacts

Technical Specifications:

• Number of Cavities: 6
• Housing: Rectangular receptacle, plastic reinforced with glass fiber
• Contact Size: 16 (13 amp)
• Wire Size: 14 AWG
• Holds Pin/Socket: Pins
• Operating Temperature: -55C to 125C

Contents:

• (1) 6 pos. receptacle
• (1) 6 pos. wedge lock
• (8) pins
• (3) cavity plugs

Pacer TDT04F-6RP DT Deutsch Receptacle Repair Kit provides the essential components for assembling or repairing a 6-position wire-to-wire connector used with 14-18 AWG wiring. Designed for DT series applications, this kit uses size 16 contacts with a 13-amp continuous capacity, helping electrical designers and technicians build reliable multi-contact connections within a single connector shell.

The rectangular receptacle housing is reinforced with glass fiber for rugged service, while the included wedge lock helps maintain contact alignment and retention. Redundant silicone seals and cavity plugs help seal open circuits, supporting the connector’s IP68 and IP6K9K ingress protection ratings. Contacts are hand-insertable and removable, making the kit practical for field repairs, connector assembly, and service work where dependable wire-to-wire connections are required.

Key Features:

• Complete repair kit: Includes the receptacle, wedge lock, pins, and cavity plugs needed to assemble a 6-position connector.
• 14-18 AWG application range: Supports DT series wiring applications using size 16 contacts.
• 13-amp contacts: Includes size 16 pins rated for 13 amps continuous capacity.
• Secure contact retention: Wedge lock helps maintain contact alignment and retention inside the connector housing.
• Sealed connector design: Redundant silicone seals and cavity plugs help protect open circuits and support IP68 and IP6K9K compliance.
• Serviceable contacts: Pins can be inserted and removed by hand for practical assembly and repair work.

Product Details:

• Brand: Pacer
• Part number: TDT04F-6RP
• Connector type: DT Deutsch rectangular receptacle
• Number of cavities: 6
• Contact size: 16, 13 amp
• Wire size: 14-18 AWG
• Contact type: Pins
• Housing material: Plastic reinforced with glass fiber
• Operating temperature: -55°C to 125°C
• Included: One 6-position receptacle, one 6-position wedge lock, eight pins, and three cavity plugs
• Compliances: IP68, IP6K9K, EU RoHS/ELV, and Standard UL-94 Recognized

Choose the Pacer TDT04F-6RP for a purpose-built DT Deutsch receptacle repair solution with the components needed for dependable 14-18 AWG wire-to-wire connector assembly and service.
