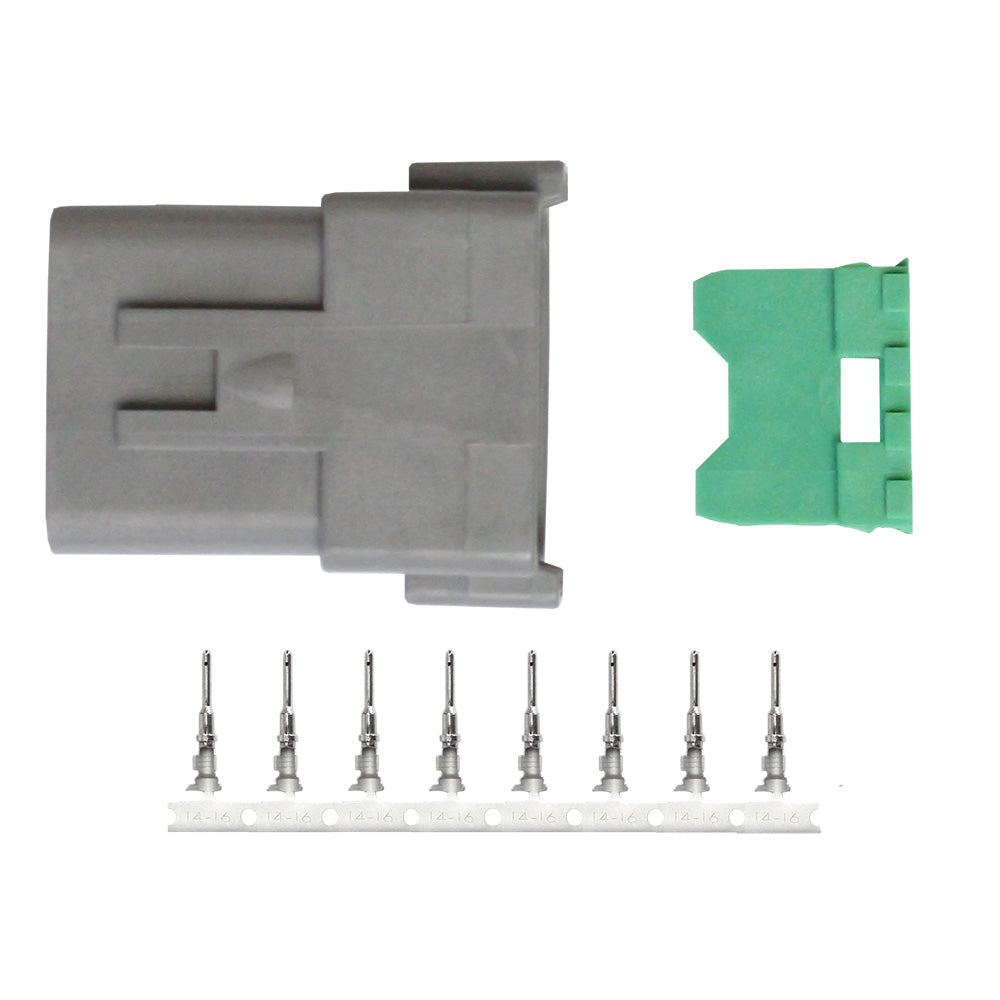

Pacer TDT04F-8RP DT Deutsch Receptacle Repair Kit, 8-Position, 14–18 AWG

DT Deutsch Receptacle Repair Kit - 14-18 AWG (8 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 18-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (18-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

• Packs include all parts needed to assemble a connector
• One to two extra terminals
• Cavity plugs to seal open circuits

Applications:

• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K
• EU RoHS/ELV
• Standard UL-94 Recognized

Characteristics:

• Wedge locks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand-insertable and removable contacts

Technical Specifications:

• Number of Cavities: 8
• Housing: Rectangular receptacle, plastic reinforced with glass fiber
• Contact Size: 16 (13 amp)
• Wire Size: 14 AWG
• Holds Pin/Socket: Pins
• Operating Temperature: -55C to 125C

Contents:

• (1) 8 pos. receptacle
• (1) 8 pos. wedge lock
• (10) pins
• (4) cavity plugs

The Pacer TDT04F-8RP DT Deutsch Receptacle Repair Kit provides the components needed to assemble an 8-position wire-to-wire connector for applications using 14–18 AWG wire. Designed around Deutsch DT series size 16 contacts, this kit supports reliable contact alignment, retention, and circuit sealing in a rugged rectangular receptacle housing.

Each kit includes an 8-position receptacle, wedge lock, pin terminals, and cavity plugs for sealing open circuits. The DT series supports multiple size 16 contacts within a single connector shell, with each contact rated for a 13-amp continuous capacity. Hand-insertable and removable contacts help simplify connector assembly and service, while redundant silicone seals help protect the connection in demanding environments.

Suitable for wire-to-wire applications, the Pacer DT Deutsch receptacle kit is designed for electrical connection and repair needs where connector organization, contact retention, and environmental protection are important. The enclosed connector design offers field-proven reliability and rugged quality, with IP68 and IP6K9K ingress protection levels and compliance with EU RoHS/ELV and Standard UL-94 Recognized requirements.

Key Features

• Complete connector repair kit: Includes the primary components needed to assemble an 8-position DT Deutsch receptacle.
• 14–18 AWG wire compatibility: Uses size 16 contacts for DT series applications using the specified wire gauge range.
• Contact alignment and retention: Wedge lock helps maintain proper contact positioning inside the connector.
• Sealed connector design: Redundant silicone seals and cavity plugs help seal open circuits.
• Serviceable contacts: Contacts can be inserted and removed by hand.
• Rugged environmental protection: Connector design is rated IP68 and IP6K9K.

Product Details

• Brand: Pacer
• Part number: TDT04F-8RP
• Connector type: DT Deutsch rectangular receptacle
• Number of cavities: 8
• Contact size: Size 16, 13 amp
• Wire size: 14–18 AWG
• Contact style: Pins
• Housing: Glass-fiber-reinforced plastic
• Operating temperature: -55°C to 125°C
• Package contents: One 8-position receptacle, one 8-position wedge lock, ten pins, and four cavity plugs
• Applications: Wire-to-wire connections
• Compliance and ratings: IP68, IP6K9K, EU RoHS/ELV, and Standard UL-94 Recognized

Choose the Pacer TDT04F-8RP DT Deutsch Receptacle Repair Kit for an organized, serviceable connector assembly built around proven DT series components.
