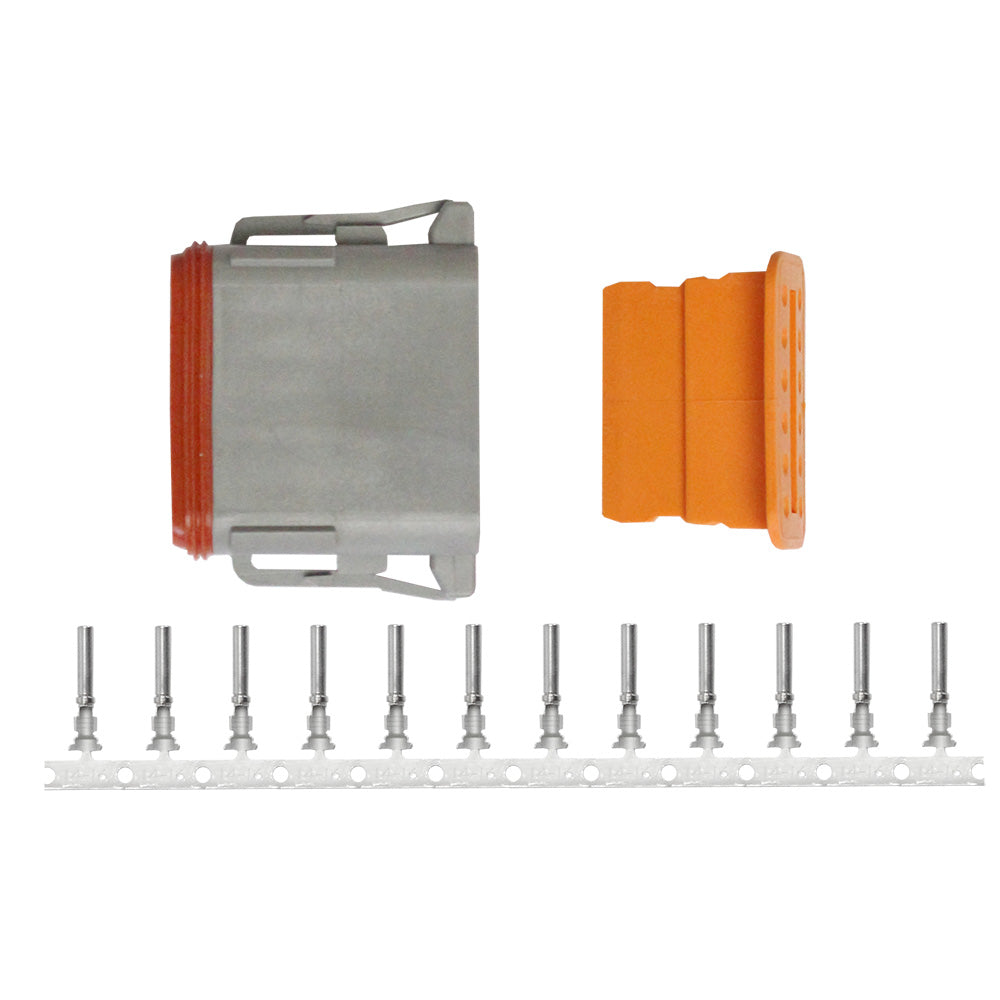

Pacer TDT06F-12RS DT Deutsch Plug Repair Kit, 12-Position, 14 AWG

DT Deutsch Plug Repair Kit - 14-18 AWG (12 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 20-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (20-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

• Packs include all parts needed to assemble a connector
• One to two extra terminals
• Cavity plugs to seal open circuits

Applications:

• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K
• EU RoHS/ELV
• Standard UL-94 Recognized

Characteristics:

• Wedge locks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand-insertable and removable contacts

Technical Specifications:

• Number of Cavities: 12
• Housing: Rectangular receptacle, plastic reinforced with glass fiber
• Contact Size: 16 (13 amp)
• Wire Size: 14 AWG
• Holds Pin/Socket: Sockets
• Operating Temperature: -55C to 125C

Contents:

• (1) 12 pos. plug
• (1) 12 pos. wedge lock
• (14) sockets
• (6) cavity plugs

Pacer TDT06F-12RS DT Deutsch Plug Repair Kit provides the components needed to assemble or repair a 12-position DT series wire-to-wire connector for applications using 14 AWG wire. Designed around size 16 contacts, this kit supports electrical designs that use multiple contact sizes within a single DT connector shell while providing a practical solution for field repairs and connector assembly.

The kit includes a rectangular receptacle housing, wedge lock, sockets, and cavity plugs. Wedge locks help maintain contact alignment and retention, while redundant silicone seals help seal the connector system. Contacts are hand-insertable and removable, supporting serviceability during installation or repair. Enclosed DT series connectors are suited for applications that require rugged connector construction and reliable protection from environmental exposure.

With IP68 and IP6K9K ingress protection levels, EU RoHS/ELV compliance, and UL-94 recognition, the Pacer TDT06F-12RS is suitable for a variety of wire-to-wire connector applications. The housing is reinforced plastic with glass fiber, and the size 16 sockets are rated for 13 amps. The connector is specified for operating temperatures from -55°C to 125°C, making it appropriate for demanding electrical environments within those stated specifications.

Key Features:

• Complete repair kit: Includes the primary connector components needed to assemble a 12-position DT Deutsch plug.
• 14 AWG wire support: Uses size 16 sockets for DT series applications involving 14 AWG wire.
• Contact retention: Wedge lock helps maintain contact alignment and retention inside the connector.
• Sealed connector design: Redundant silicone seals and cavity plugs help seal open circuits.
• Serviceable contacts: Contacts can be inserted and removed by hand.
• Environmental specifications: Rated IP68 and IP6K9K, with EU RoHS/ELV and UL-94 recognition.

Product Details:

• Brand: Pacer
• Part number: TDT06F-12RS
• Connector series: DT Deutsch
• Number of cavities: 12
• Housing: Rectangular receptacle made from plastic reinforced with glass fiber
• Contact size: 16, 13 amp
• Wire size: 14 AWG
• Contact type: Sockets
• Operating temperature: -55°C to 125°C
• Contents: One 12-position plug, one 12-position wedge lock, fourteen sockets, and six cavity plugs

Choose the Pacer TDT06F-12RS when you need a complete 12-position DT Deutsch plug repair kit for 14 AWG wire-to-wire connector applications.
