Pacer TDT06F-2RS DT Deutsch Plug Repair Kit, 2-Position, 14 AWG

DT Deutsch Plug Repair Kit - 14-18 AWG (2 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 20-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (20-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

• Packs include all parts needed to assemble a connector
• One to two extra terminals
• Cavity plugs to seal open circuits

Applications:

• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K
• EU RoHS/ELV
• Standard UL-94 Recognized

Characteristics:

• Wedge locks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand-insertable and removable contacts

Technical Specifications:

• Number of Cavities: 2
• Housing: Rectangular receptacle, plastic reinforced with glass fiber
• Contact Size: 16 (13 amp)
• Wire Size: 14 AWG
• Holds Pin/Socket: Sockets
• Operating Temperature: -55C to 125C

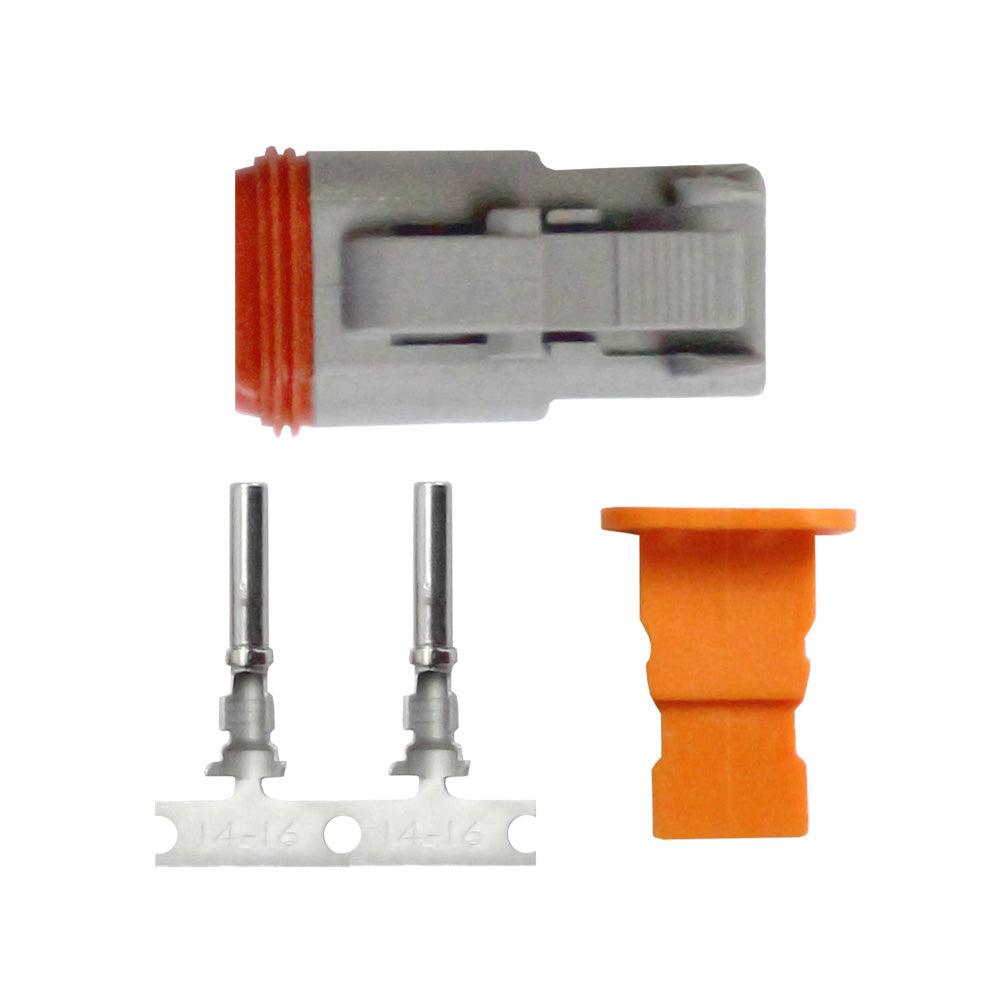

Contents:

• (1) 2 pos. plug
• (1) 2 pos. wedge lock
• (3) sockets

Pacer TDT06F-2RS DT Deutsch Plug Repair Kit provides the essential components for assembling or repairing a two-position DT series connector used in wire-to-wire applications. Designed for 14 AWG wire and featuring size 16 sockets, this repair kit helps support dependable connector assembly where contact alignment, sealing, and field-proven durability matter.

The kit includes a two-position plug, matching wedge lock, and three sockets, providing the parts needed to assemble a connector with an extra socket included. Wedge locks help maintain contact alignment and retention, while redundant silicone seals help seal the connector interface. The contacts are hand-insertable and removable, supporting practical service and repair work.

The Pacer DT series is designed for 20–14 AWG wire applications and permits multiple sizes of size 16 contacts within a single connector shell. These size 16 contacts are rated for a 13-amp continuous capacity. The rectangular receptacle housing is reinforced with glass fiber, and the connector is rated to IP68 and IP6K9K ingress protection levels. The kit is also compliant with EU RoHS/ELV requirements and uses a UL-94 recognized housing material.

Use the Pacer TDT06F-2RS for connector repair, replacement, and wire-to-wire electrical applications requiring a two-position DT Deutsch-style plug assembly for 14 AWG wire. Its compact component set makes it a practical choice for maintaining connector systems in applications exposed to demanding operating conditions.

Key Features:

• Complete connector kit: Includes the primary parts needed to assemble a two-position connector.
• 14 AWG wire compatibility: Uses size 16 sockets for applications using 14 AWG wire.
• Secure contact retention: Wedge locks help maintain contact alignment and retention.
• Sealed connector design: Redundant silicone seals and cavity sealing support help protect open circuits.
• Serviceable contacts: Contacts can be inserted and removed by hand.
• Rugged electrical connector housing: Glass-fiber-reinforced plastic housing with IP68 and IP6K9K ratings.

Product Details:

• Brand: Pacer
• Part number: TDT06F-2RS
• Connector series: DT
• Number of cavities: 2
• Housing: Rectangular receptacle, plastic reinforced with glass fiber
• Contact size: 16, 13 amp
• Wire size: 14 AWG
• Contact type: Sockets
• Operating temperature: -67°F to 257°F
• Kit contents: One 2-position plug, one 2-position wedge lock, and three sockets
• Compliances and ratings: IP68, IP6K9K, EU RoHS/ELV, and UL-94 recognized

Choose the Pacer TDT06F-2RS DT Deutsch Plug Repair Kit for a clearly specified, serviceable two-position connector solution for 14 AWG wire applications.
