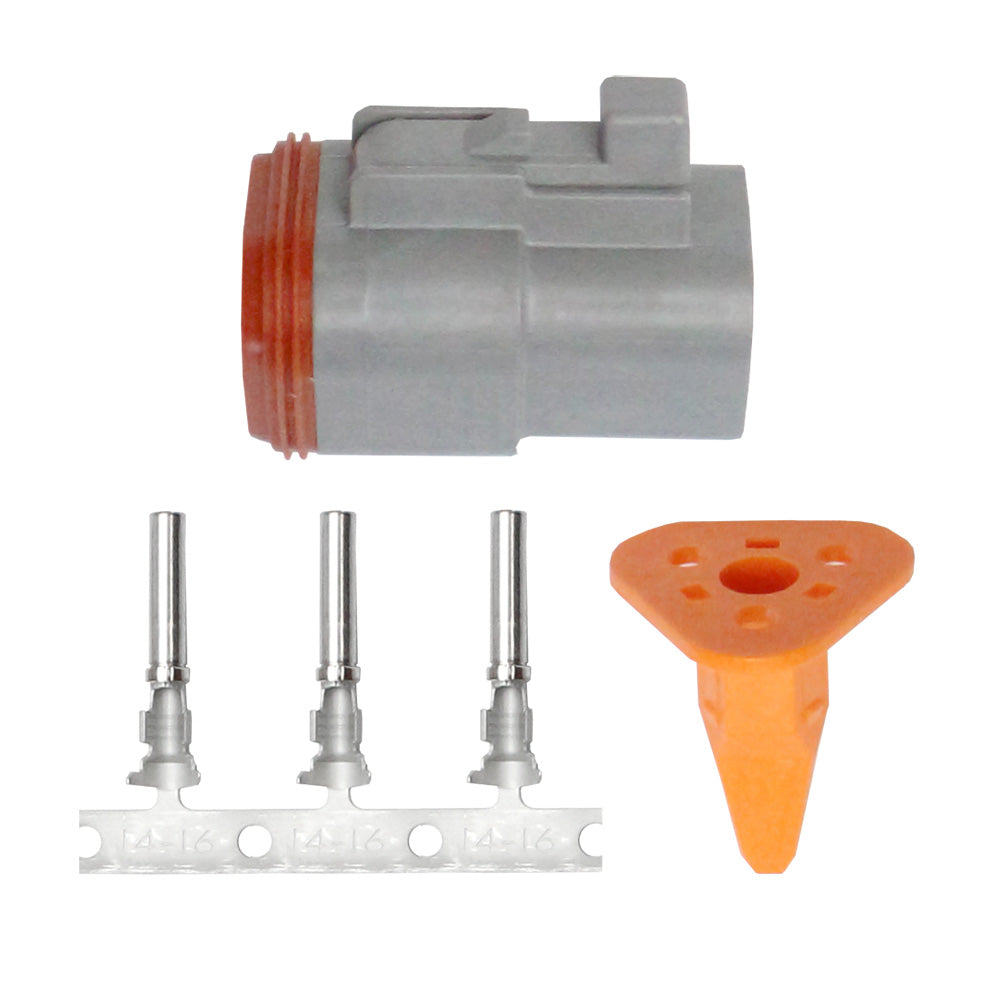

Pacer TDT06F-3RS DT Deutsch Plug Repair Kit, 3-Position, 14 AWG Sockets

DT Deutsch Plug Repair Kit - 14-18 AWG (3 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 20-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (20-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

• Packs include all parts needed to assemble a connector
• One to two extra terminals
• Cavity plugs to seal open circuits

Applications:

• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K
• EU RoHS/ELV
• Standard UL-94 Recognized

Characteristics:

• Wedge locks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand-insertable and removable contacts

Technical Specifications:

• Number of Cavities: 3
• Housing: Rectangular receptacle, plastic reinforced with glass fiber
• Contact Size: 16 (13 amp)
• Wire Size: 14 AWG
• Holds Pin/Socket: Sockets
• Operating Temperature: -55C to 125C

Contents:

• (1) 3 pos. plug
• (1) 3 pos. wedge lock
• (4) sockets
• (1) cavity plug

Pacer TDT06F-3RS DT Deutsch Plug Repair Kit provides the components needed to assemble or repair a 3-position DT series wire-to-wire connector using 14 AWG wire. Designed for electrical applications that require durable connector components, this kit includes the plug housing, wedge lock, sockets, and cavity plug needed for a complete connector assembly.

The DT series supports multiple sizes of size 16 contacts for 20–14 AWG wire applications, with each contact rated for 13 amps continuous capacity. This Pacer repair kit uses larger size 16 sockets intended for 14 AWG wire. Wedge locks help maintain contact alignment and retention, while hand-insertable and removable contacts support practical assembly and service work.

Built for demanding connector applications, the enclosed design provides field-proven reliability and rugged quality. Redundant silicone seals and the included cavity plug help seal unused openings and support the connector’s stated ingress protection ratings. The kit is suited to wire-to-wire applications where a compact, serviceable DT connector solution is needed.

Key Features:

• Complete repair kit: Includes the primary parts needed to assemble a 3-position DT Deutsch connector.
• 14 AWG compatibility: Uses size 16 sockets for applications using 14 AWG wire.
• Contact retention: Wedge lock helps maintain contact alignment and retention.
• Sealed connector design: Redundant silicone seals and a cavity plug support sealed connector construction.
• Serviceable contacts: Contacts can be inserted and removed by hand.
• Connector protection: Rated IP68 and IP6K9K, with EU RoHS/ELV and UL-94 Recognized compliance listed by the manufacturer.

Product Details:

• Brand: Pacer
• Model: TDT06F-3RS
• Connector series: DT Deutsch
• Number of cavities: 3
• Housing: Rectangular receptacle made from plastic reinforced with glass fiber
• Contact size: 16, 13 amp
• Wire size: 14 AWG
• Contact type: Sockets
• Operating temperature: -55°C to 125°C
• Contents: One 3-position plug, one 3-position wedge lock, four sockets, and one cavity plug

Choose the Pacer TDT06F-3RS for a complete, serviceable DT Deutsch plug repair solution for 14 AWG wire-to-wire connector applications.
