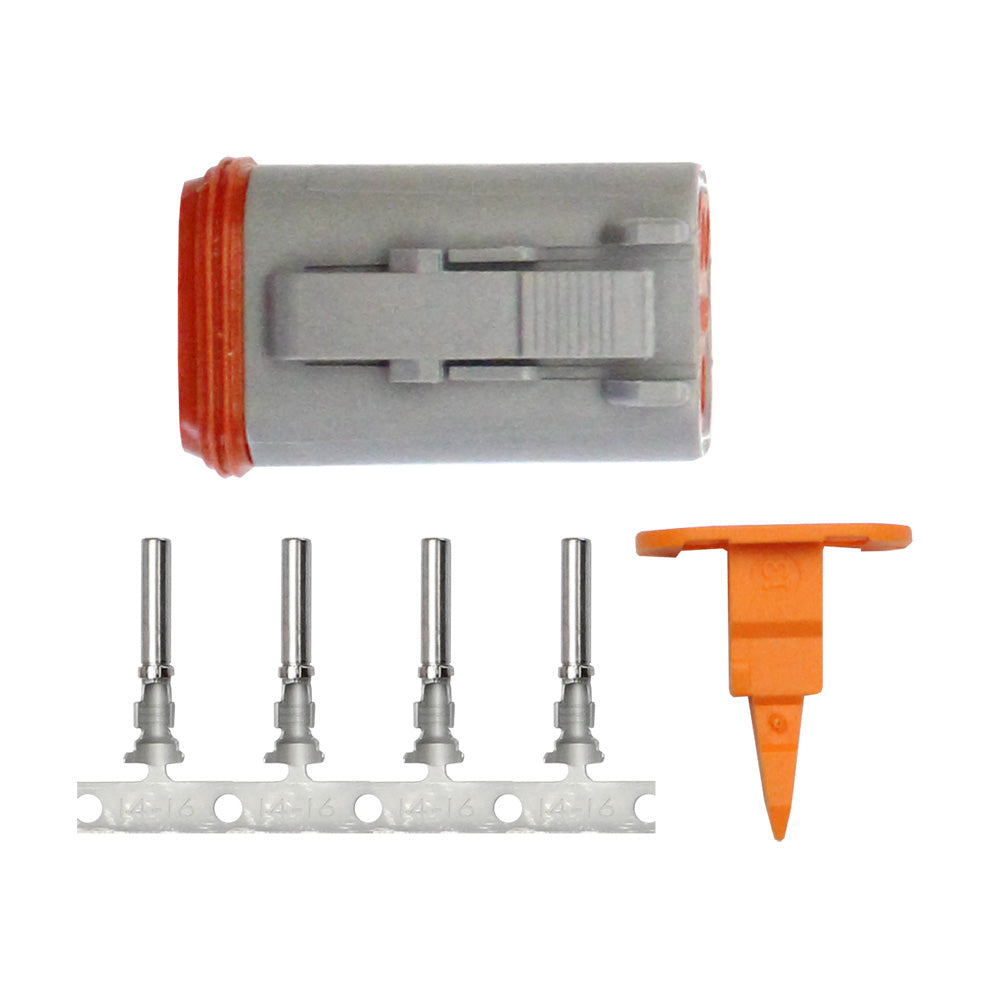

Pacer TDT06F-4RS DT Deutsch Plug Repair Kit, 4-Position, 14 AWG Socket Connector

DT Deutsch Plug Repair Kit - 14-18 AWG (4 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 20-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (20-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

• Packs include all parts needed to assemble a connector
• One to two extra terminals
• Cavity plugs to seal open circuits

Applications:

• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K
• EU RoHS/ELV
• Standard UL-94 Recognized

Characteristics:

• Wedge locks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand-insertable and removable contacts

Technical Specifications:

• Number of Cavities: 4
• Housing: Rectangular receptacle, plastic reinforced with glass fiber
• Contact Size: 16 (13 amp)
• Wire Size: 14 AWG
• Holds Pin/Socket: Sockets
• Operating Temperature: -55C to 125C

Contents:

• (1) 4 pos. plug
• (1) 4 pos. wedge lock
• (5) sockets
• (2) cavity plugs

Pacer TDT06F-4RS DT Deutsch Plug Repair Kit provides the essential components for assembling or repairing a 4-position wire-to-wire connector used with 14 AWG wiring applications. Designed around the DT series connector system, this kit combines a reinforced plastic receptacle, wedge lock, sockets, and cavity plugs in one convenient package for service, maintenance, and connector assembly needs.

The DT series supports multiple sizes of size 16 contacts for 20–14 AWG applications, with each contact rated for 13 amps continuous capacity. This Pacer repair kit uses size 16 sockets for 14 AWG wire and includes extra terminals to support practical connector installation. Hand-insertable and removable contacts simplify assembly, while the wedge lock helps maintain contact alignment and retention.

For demanding wire-to-wire applications, the enclosed connector design offers rugged construction and field-proven reliability. Redundant silicone seals and included cavity plugs help seal unused circuits, while the connector’s listed IP68 and IP6K9K ingress protection ratings support use where protection from dust and water exposure is important. The kit is also listed as EU RoHS/ELV compliant and uses a UL-94 recognized housing material.

Key Features:

• Complete repair kit: Includes the plug, wedge lock, sockets, and cavity plugs needed to assemble a 4-position connector.
• 14 AWG compatibility: Uses size 16 sockets for DT series applications using 14 AWG wire.
• Contact retention: Wedge lock helps maintain proper contact alignment and retention.
• Sealed connector design: Redundant silicone seals and cavity plugs help seal open circuits.
• Serviceable contacts: Contacts can be inserted and removed by hand.
• Connector protection: Listed with IP68 and IP6K9K ingress protection ratings.

Product Details:

• Brand: Pacer
• Part Number: TDT06F-4RS
• Connector type: DT Deutsch plug repair kit
• Number of cavities: 4
• Housing: Rectangular receptacle, plastic reinforced with glass fiber
• Contact size: 16, 13 amp
• Wire size: 14 AWG
• Contact type: Sockets
• Operating temperature: -55°C to 125°C
• Kit contents: One 4-position plug, one 4-position wedge lock, five sockets, and two cavity plugs
• Compliances: IP68, IP6K9K, EU RoHS/ELV, and UL-94 Recognized

Choose the Pacer TDT06F-4RS when you need a clearly specified DT Deutsch plug repair kit for 14 AWG, 4-position wire-to-wire connector applications.
