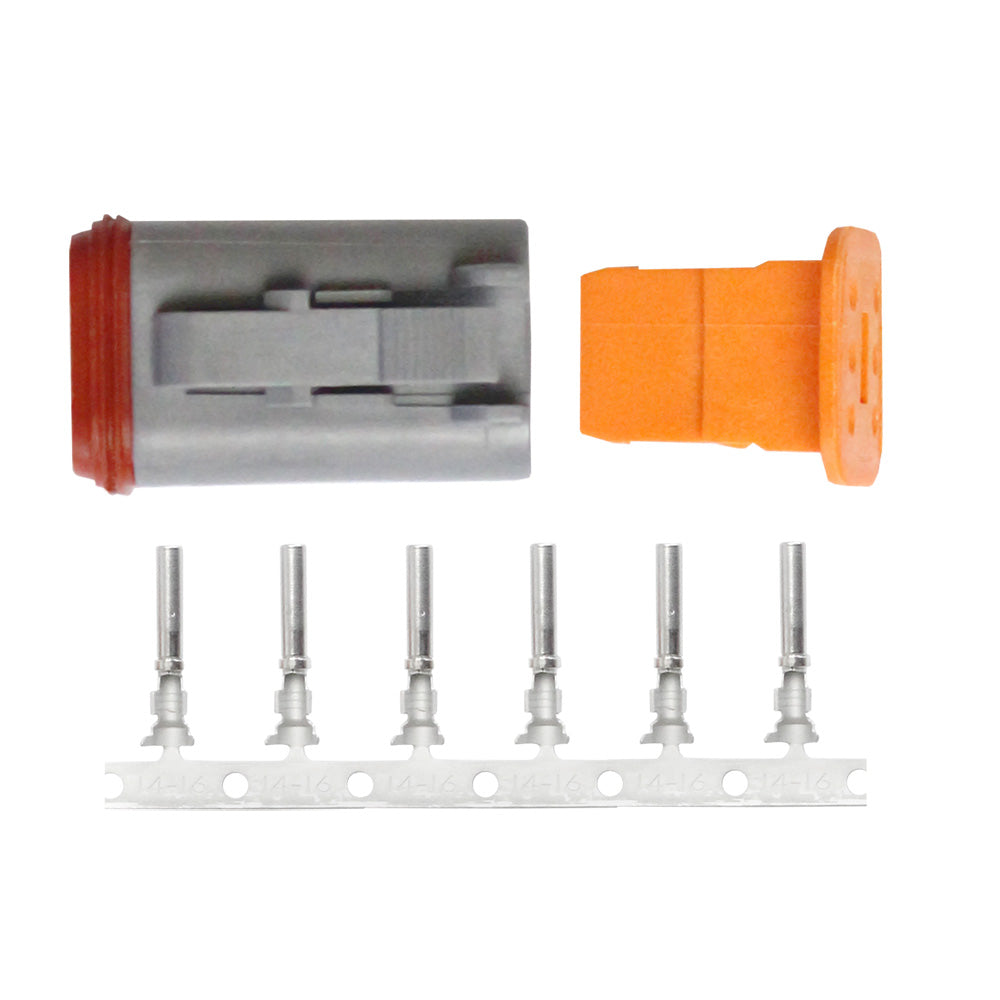

Pacer TDT06F-6RS DT Deutsch Plug Repair Kit, 6-Position, 14 AWG Socket Connector

DT Deutsch Plug Repair Kit - 14-18 AWG (6 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 20-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (20-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

• Packs include all parts needed to assemble a connector
• One to two extra terminals
• Cavity plugs to seal open circuits

Applications:

• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K
• EU RoHS/ELV
• Standard UL-94 Recognized

Characteristics:

• Wedge locks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand-insertable and removable contacts

Technical Specifications:

• Number of Cavities: 6
• Housing: Rectangular receptacle, plastic reinforced with glass fiber
• Contact Size: 16 (13 amp)
• Wire Size: 14 AWG
• Holds Pin/Socket: Sockets
• Operating Temperature: -55C to 125C

Contents:

• (1) 6 pos. plug
• (1) 6 pos. wedge lock
• (8) sockets
• (3) cavity plugs

The Pacer TDT06F-6RS DT Deutsch Plug Repair Kit provides the components needed to assemble a six-position wire-to-wire connector for applications using 14 AWG wire. Built around size 16 Deutsch contacts, this repair kit combines a rectangular receptacle housing, wedge lock, sockets, and cavity plugs in one convenient package. It is suited for electrical wiring repairs, connector replacement, and new harness assembly where rugged, enclosed connectivity is required.

The DT series supports multiple size 16 contact options for 20-14 AWG applications, with each contact rated for 13 amps continuous capacity. Wedge locks help maintain contact alignment and retention, while redundant silicone seals and cavity plugs help seal open circuits. Contacts can be inserted and removed by hand, simplifying assembly and service work in appropriate applications. The enclosed connector design is intended for wire-to-wire use and is rated to IP68 and IP6K9K ingress protection levels.

Key Features:

• Complete repair kit: Includes the primary connector components needed to assemble a six-position DT-style connector.
• 14 AWG socket configuration: Uses size 16 sockets for applications using 14 AWG wire.
• Contact alignment and retention: Wedge locks help keep contacts properly positioned within the connector housing.
• Sealed connector design: Redundant silicone seals and cavity plugs help seal open circuits.
• Field-serviceable assembly: Contacts are hand-insertable and removable.
• Ingress protection: Rated IP68 and IP6K9K, with EU RoHS/ELV and Standard UL-94 Recognized compliance listed by the manufacturer.

Product Details:

• Brand: Pacer
• Part Number: TDT06F-6RS
• Connector series: DT
• Number of cavities: 6
• Housing: Rectangular receptacle, plastic reinforced with glass fiber
• Contact size: 16, rated at 13 amps
• Wire size: 14 AWG
• Contact type: Sockets
• Operating temperature: -55°C to 125°C
• Contents: One 6-position plug, one 6-position wedge lock, eight sockets, and three cavity plugs

Choose the Pacer TDT06F-6RS when you need a clearly specified six-position DT Deutsch plug repair kit for 14 AWG wire-to-wire connector assembly and service.
