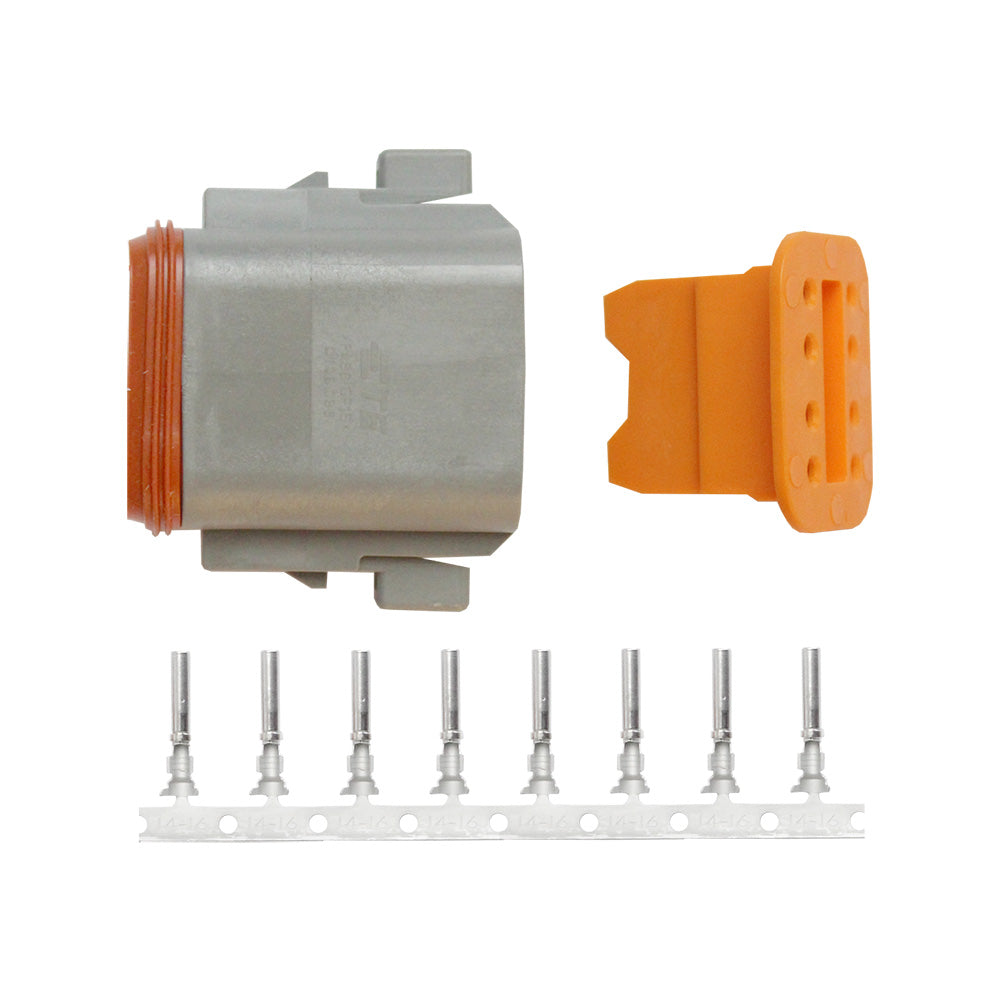

Pacer TDT06F-8RS DT Deutsch Plug Repair Kit, 8-Position, 14 AWG Socket Connector

DT Deutsch Plug Repair Kit - 14-18 AWG (8 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 20-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (20-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

• Packs include all parts needed to assemble a connector
• One to two extra terminals
• Cavity plugs to seal open circuits
• Applications:
• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K
• EU RoHS/ELV
• Standard UL-94 Recognized

Characteristics:

• Wedge locks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand-insertable and removable contacts

Technical Specifications:

• Number of Cavities: 8
• Housing: Rectangular receptacle, plastic reinforced with glass fiber
• Contact Size: 16 (13 amp)
• Wire Size: 14 AWG
• Holds Pin/Socket: Sockets
• Operating Temperature: -55C to 125C

Contents:

• (1) 8 pos. plug
• (1) 8 pos. wedge lock
• (10) sockets
• (4) cavity plugs

The Pacer TDT06F-8RS DT Deutsch Plug Repair Kit provides the essential components for assembling or repairing an 8-position wire-to-wire connector using 14 AWG wire. Designed around Deutsch DT series components, this kit uses size 16 sockets with a 13-amp continuous capacity and includes the plug housing, wedge lock, sockets, and cavity plugs needed for connector service and assembly.

Built for demanding electrical connection applications, the enclosed DT series connector design combines practical field serviceability with rugged construction. Wedge locks help maintain contact alignment and retention, while redundant silicone seals support protection against environmental exposure. Contacts are hand-insertable and removable, making the kit suitable for connector repairs, replacement assemblies, and wiring projects that require an 8-cavity DT-style plug configuration.

Key Features:

• Complete repair kit: Includes the primary connector components needed to assemble an 8-position DT plug.
• 14 AWG application: Uses larger size 16 sockets for DT series applications using 14 AWG wire.
• Contact retention: Wedge locks help maintain contact alignment and retention inside the connector.
• Sealed connector design: Redundant silicone seals and cavity plugs help seal unused or open circuits.
• Serviceable contacts: Contacts can be inserted and removed by hand.
• Connector protection: Listed ingress protection ratings include IP68 and IP6K9K.

Product Details:

• Brand: Pacer
• Part number: TDT06F-8RS
• Connector series: DT Deutsch
• Number of cavities: 8
• Housing: Rectangular receptacle made from plastic reinforced with glass fiber
• Contact size: 16, rated at 13 amps
• Wire size: 14 AWG
• Contact type: Sockets
• Operating temperature: -67°F to 257°F
• Kit contents: One 8-position plug, one 8-position wedge lock, ten sockets, and four cavity plugs
• Compliances: IP68, IP6K9K, EU RoHS/ELV, and Standard UL-94 Recognized

Choose the Pacer TDT06F-8RS DT Deutsch Plug Repair Kit for a clearly specified, serviceable 8-position connector solution for 14 AWG wire-to-wire applications.
