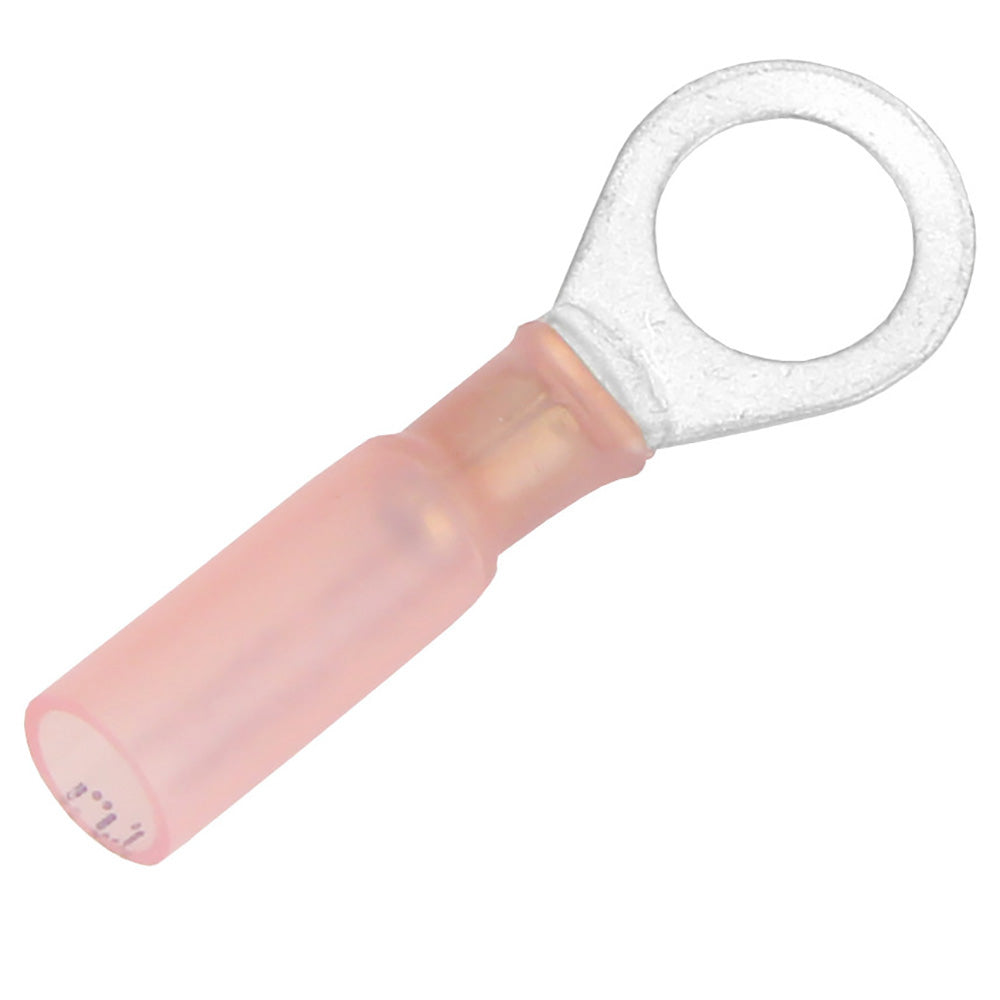

Pacer TE18-56R-25 Heat Shrink Ring Terminals, 22-18 AWG, 5/16-Inch Stud, 25 Pack

22-18 AWG Heat Shrink Ring Terminal - 5/16 Stud Size - 25 Pack

Ring terminals are a trusted way to create an electrical connection. By using ring terminals, users dont need to worry about the connector coming off. The ring fits over a stud or screw and doesnt pull loose as other terminals may. Pink ring terminals are for 8 AWG wires. They are easy to use and offer long-term protection. Heat shrink ring terminals protect against the elements in the most challenging of environments. This makes them the best moisture protection available. Heat shrink ring terminals possess a heat-activated adhesive liner. This liner is built to provide a durable, rugged, environmentally sealed connection for 8 AWG wires. Selecting the correct ring terminal isnt always an easy task. Contact a Pacer expert with any questions that you may have.

Features:

• Protects terminations from water, condensation, salt spray, and corrosion
• Added vibration protection in rugged environments
• Provides strain relief
• Translucent, adhesive-lined polyolefin tubing is a durable insulator that provides a seal that keeps out moisture and contaminants and prevents wire corrosion
• Conforms to automotive manufacturers specifications for wiring repairs
• Color-coded tubing with wire gauge imprint provides easy identification of the correct part for the job

Compliances:

• UL
• CSA
• RoHS

Characteristics:

• Shrink Ratio: Approx. 3:1 at 135 C
• Operating Temp: -55 C - 125 C
• Vol. Resistivity: 1015 Ohm-cm3
• Dielectric Strength: 900-V/mil
• Voltage Rating: 600-V

Specifications:

• Wire: 22-18 AWG
• Stud Size: 5/16
• Terminal Pad Width: 0.47
• Package Size: 25

Pacer TE18-56R-25 heat shrink ring terminals provide a secure, sealed electrical connection for 22-18 AWG wire. Designed with a 5/16-inch stud opening, each terminal fits over a stud or screw to help prevent the connection from pulling loose. The 25-pack is suited for automotive wiring repairs, marine applications, and other electrical projects where dependable moisture and corrosion protection is important.

Each terminal features translucent, adhesive-lined polyolefin tubing that forms an environmentally sealed connection when heated. The heat-activated adhesive liner helps protect the termination from water, condensation, salt spray, contaminants, and corrosion while also providing strain relief and added vibration protection in demanding environments. Color-coded tubing and a wire gauge imprint make it easier to identify the appropriate terminal for the job.

With a shrink ratio of approximately 3:1 at 275°F, Pacer heat shrink ring terminals create a durable insulated connection when properly installed. They are rated for operating temperatures from -67°F to 257°F and a voltage rating of 600 volts. The terminals conform to automotive manufacturers' specifications for wiring repairs and are UL, CSA, and RoHS compliant.

Key Features:

• Sealed Electrical Connection: Adhesive-lined polyolefin tubing helps keep out moisture and contaminants.
• Secure Ring Design: The 5/16-inch ring fits over a stud or screw to help prevent the terminal from pulling loose.
• Rugged Protection: Helps protect terminations from water, condensation, salt spray, corrosion, and vibration.
• Strain Relief: Heat shrink construction supports the wire and helps reduce strain at the connection.
• Easy Identification: Color-coded tubing and wire gauge imprint simplify terminal selection.
• Professional Compliance: Conforms to automotive manufacturers' wiring repair specifications and is UL, CSA, and RoHS compliant.

Product Details:

• Brand: Pacer
• Part Number: TE18-56R-25
• Wire Range: 22-18 AWG
• Stud Size: 5/16 inch
• Terminal Pad Width: 0.47 inch
• Quantity: 25 terminals
• Shrink Ratio: Approximately 3:1 at 275°F
• Operating Temperature: -67°F to 257°F
• Voltage Rating: 600 volts
• Dielectric Strength: 900 V/mil
• Volume Resistivity: 10¹⁵ ohm-cm³
• Compliance: UL, CSA, and RoHS

Choose Pacer TE18-56R-25 heat shrink ring terminals for a secure, insulated connection designed to support demanding automotive and electrical wiring repairs.
