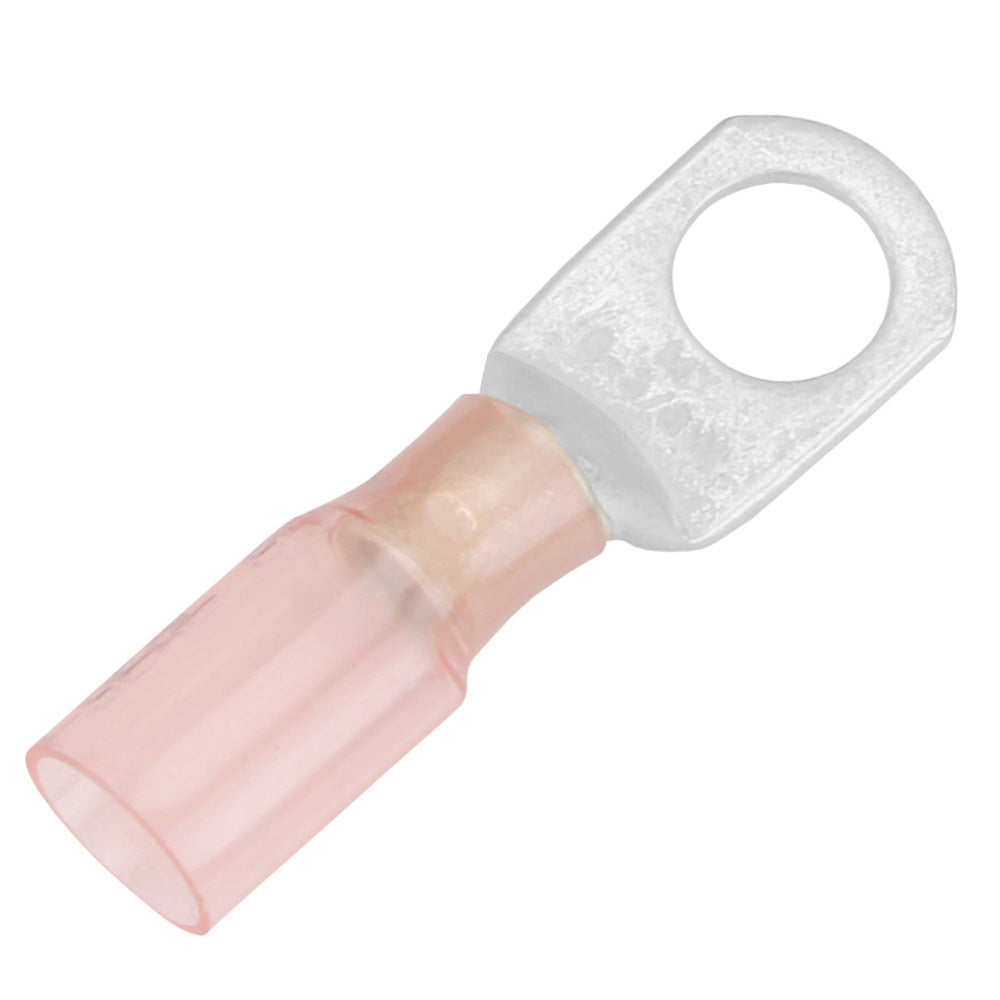

Pacer TE8-38R-25 8 AWG Heat Shrink Ring Terminals, 3/8-Inch Stud, 25-Pack

8 AWG Heat Shrink Ring Terminal - 3/8 Stud Size - 25 Pack

Ring terminals are a trusted way to create an electrical connection. By using ring terminals, users dont need to worry about the connector coming off. The ring fits over a stud or screw and doesnt pull loose as other terminals may. Pink ring terminals are for 8 AWG wires. They are easy to use and offer long-term protection. Heat shrink ring terminals protect against the elements in the most challenging of environments. This makes them the best moisture protection available. Heat shrink ring terminals possess a heat-activated adhesive liner. This liner is built to provide a durable, rugged, environmentally sealed connection for 8 AWG wires. Selecting the correct ring terminal isnt always an easy task. Contact a Pacer expert with any questions that you may have.

Features:

• Protects terminations from water, condensation, salt spray, and corrosion
• Added vibration protection in rugged environments
• Provides strain relief
• Translucent, adhesive-lined polyolefin tubing is a durable insulator that provides a seal that keeps out moisture and contaminants and prevents wire corrosion
• Conforms to automotive manufacturers specifications for wiring repairs
• Color-coded tubing with wire gauge imprint provides easy identification of the correct part for the job

Compliances:

• UL
• CSA
• RoHS

Characteristics:

• Shrink Ratio: Approx. 3:1 at 135 C
• Operating Temp: -55 C - 125 C
• Vol. Resistivity: 1015 Ohm-cm3
• Dielectric Strength: 900-V/mil
• Voltage Rating: 600-V

Specifications:

• Stud Size: 3/8
• Terminal Pad Width: 0.59
• Package Size: 25

Pacer TE8-38R-25 8 AWG Heat Shrink Ring Terminals provide a secure, sealed electrical connection for automotive wiring repairs and other demanding electrical applications. Designed for 8 AWG wire and a 3/8-inch stud or screw, these pink, color-coded ring terminals help prevent the connector from pulling loose while providing protection against moisture, contaminants, vibration, and corrosion.

Each terminal features translucent, adhesive-lined polyolefin heat shrink tubing. When heated, the tubing conforms around the wire to create a durable, environmentally sealed connection with added strain relief. This construction helps protect terminations from water, condensation, salt spray, and other challenging conditions. The wire gauge imprint and color-coded tubing also make it easier to identify the correct terminal during installation.

With a shrink ratio of approximately 3:1 at 275°F, a voltage rating of 600 volts, and an operating temperature range from -67°F to 257°F, these Pacer heat shrink ring terminals are suited for rugged wiring environments. They conform to automotive manufacturers’ specifications for wiring repairs and are UL, CSA, and RoHS compliant. The 25-piece package provides convenient quantity for repairs, installations, and replacement wiring work.

Key Features

• Feature: Heat-activated adhesive liner creates a durable, environmentally sealed connection for 8 AWG wires.
• Feature: Protects terminations from water, condensation, salt spray, corrosion, moisture, and contaminants.
• Feature: Ring terminal design fits securely over a 3/8-inch stud or screw to help prevent pull-off.
• Feature: Polyolefin insulation provides added vibration protection and strain relief in rugged environments.
• Feature: Pink, color-coded tubing with wire gauge imprint supports quick identification during wiring repairs.
• Feature: UL, CSA, and RoHS compliant for specified electrical applications.

Product Details

• Brand: Pacer
• Part Number: TE8-38R-25
• Terminal Type: Heat shrink ring terminal
• Wire Size: 8 AWG
• Stud Size: 3/8 inch
• Color: Pink
• Terminal Pad Width: 0.59 inch
• Package Quantity: 25 terminals
• Shrink Ratio: Approximately 3:1 at 275°F
• Operating Temperature: -67°F to 257°F
• Voltage Rating: 600 volts
• Dielectric Strength: 900 V/mil
• Volume Resistivity: 10¹⁵ ohm-cm³
• Compliances: UL, CSA, and RoHS

Choose the Pacer TE8-38R-25 heat shrink ring terminals for a secure, moisture-resistant connection in automotive wiring repairs and rugged electrical installations.
