Pacer Unshielded 5 Conductor Cable - 25' - 18/5 AWG - Green, Brown, White, Black, & Red

Pacer Unshielded 5 Conductor Cable - 25' - 18/5 AWG - Green, Brown, White, Black, & Red

110402

$61.97 USD
$61.97 USD
Sale Sold out
Shipping

Out of stock
  • 30-Day Returns
  • Secure Checkout
  • Free Shipping — Contiguous U.S.

Shipping & Delivery

Free standard shipping is available on all orders shipping within the Contiguous United States, with no minimum order. Alaska and Hawaii are excluded from free shipping. Orders are typically processed within 1–2 business days. See our Shipping Policy for complete terms.

Returns & Refunds

Eligible items may be returned within 30 days of delivery. Items must be new, unused, uninstalled, and in original packaging. An RMA is required.

Installment options at checkout are provided by Shop Pay and its partners and are subject to eligibility. Options depend on your purchase amount and may require a credit check by the financing partner. Terms, rates, and eligibility are determined by the financing partner. For details, see the Shop Pay Installments terms during checkout.

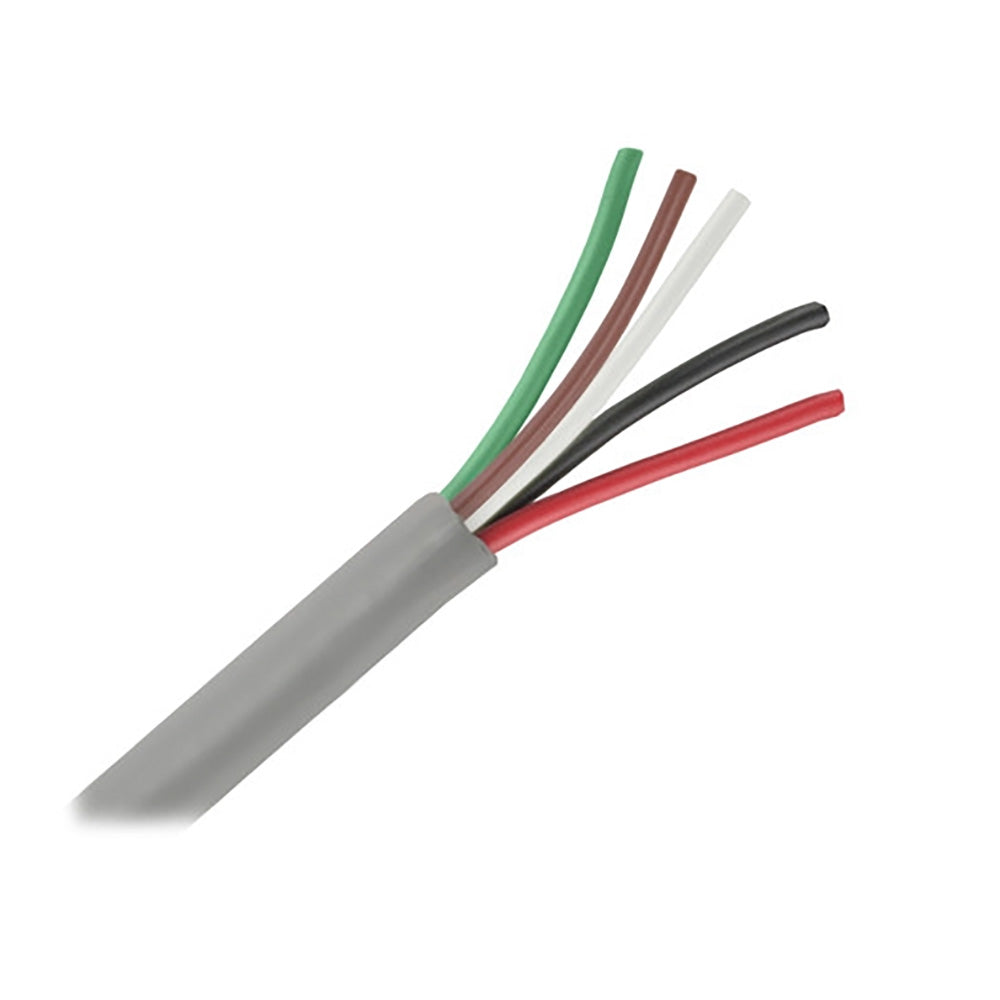

Unshielded 5 Conductor Cable - 25' - 18/5 AWG - Green, Brown, White, Black, & Red

Unshielded multiconductor 18 AWG cables are used in a wide variety of applications. Oftentimes, they can be found in things like consumer electronics and industrial control equipment. They are used in advanced signal transmissions in controlled environments as well. What does all that mean? Well, essentially, it means that multiconductor cables are used for controlling equipment.

Unshielded multiconductor 18 AWG cables are constructed from finely stranded tinned copper conductors. The conductors are insulated with color-coded PVC. The now insulated conductors are covered with a durable yet flexible PVC jacket. This keeps the conductors together while offering superior protection. These cables are manufactured to meet the requirements for UL, CSA, RoHS, and NEC. Temperatures and voltages are not always the same from cable to cable.

Features:

  • 25 ft. of cable
  • Fully annealed stranded tinned copper per ASTM B33
  • Premium-grade color-coded PVC insulation
  • Grey PVC jacket—20°C to 105°C

Specifications:

  • Number of Conductors: 5
  • Conductor Colors: Green, brown, white, black, and red
  • Conductor Stranding: 16/30
  • Jacket Color: Grey
  • Nom. Cap. pF/ft Between Conductors: 25.0
  • Nom. Insulation Thickness: 5 conductors @ 0.016"
  • Jacket Thickness (inch): 5 conductors @ 0.032"
  • Nom. Cable O.D. (inch): 5 conductors @ 0.272"

Applications:

  • Public address systems
  • Intercoms and internal telephones
  • Suitable for EIA RS-232 applications
  • Remote control circuits

Compliances:

  • NEC Article 800 Type CM (UL: 75°C)
  • UL Style 2464 (UL: 80°C, 300V, VW-1)
  • CSA CMG (CSA: 60°C) (Except 18/5)
  • CE: Low voltage directive (LVD 2006/95/EC)
  • RoHS compliant directive 2011/65/EU
  • Vertical tray flame test (70,000 BTU)
