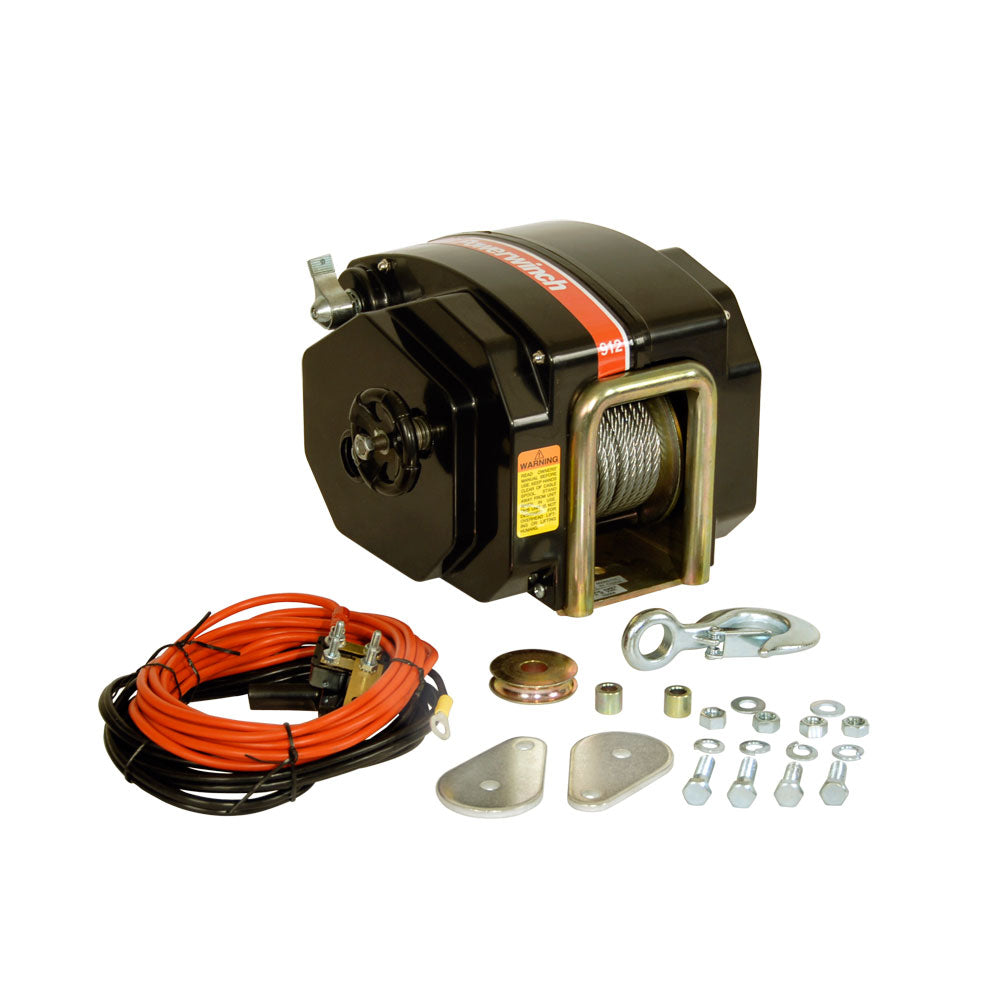

Powerwinch 912 Trailer Winch, 12V Electric Boat Winch with 4,000 lb Lift Capacity

12v Electric Trailer Winch

The 912 and 712 Trailer Winches are well established with solid, reliable reputations. They feature smooth power-in/free-wheel out action. You can use a pulley or block at the bow eye to double your pulling power You can get more strength out of your trailer winch, but it slows retrieval speed 50%.

• Remote power-in/freewheel-out operation
• 60 amp standard wiring harness
• Pulley block for double line applications
• One year limited warranty

Model 912

• 30 suggested max boat length
• Max. boat weight of 11,500 lbs
• 4000 lb vertical lift capacity (single line) or double pull/line capacity 7500 lbs. (Not to be considered or used as a hoist)

Specifications

• Max. Boat Weight: 11500
• Line Speed: 8 FPM
• Vertical Lift Capacity: 4000 lbs
• Remote Control: No
• Light: No
• Double Line Capacity: 7500 lbs
• Gear Ratio: 450:1
• Power Source: 12V
• Circuit Breaker: 60 amp
• Unit Weight: 35 lbs
• Depth: 10
• Width; 10
• Height: 8
• Cable Length and Diameter: 40 x 7/32

Powerwinch 912 12V Electric Trailer Winch delivers smooth, reliable power-in and free-wheel-out operation for boat trailer loading and retrieval. Designed for boat owners who need dependable pulling performance, this electric boat winch supports boats up to 11,500 pounds and offers a 4,000-pound vertical lift capacity with a single line.

The Powerwinch Model 912 includes a 60-amp standard wiring harness, pulley block, and cable for flexible single- or double-line operation. Using the pulley block at the bow eye can double pulling power, with a reduced retrieval speed of approximately 50 percent. The winch provides an 8 feet-per-minute line speed and is powered by a 12-volt electrical system. It is intended for trailer winching applications and is not to be considered or used as a hoist.

With its 450:1 gear ratio and 40-foot cable, the Powerwinch 912 is suited for boat trailer owners seeking controlled, practical loading assistance. The included one-year limited warranty adds manufacturer support for this established trailer winch design.

Key Features

• Power-in and free-wheel-out operation: Provides smooth powered retrieval with convenient free-wheeling when positioning the cable.
• 4,000-pound vertical lift capacity: Supports single-line lifting applications for boats within the specified capacity.
• 7,500-pound double-line capacity: The included pulley block enables double-line pulling for increased pulling strength at reduced retrieval speed.
• 60-amp wiring harness: Includes standard electrical wiring for connection to a 12-volt power source.
• 40-foot cable: Provides extended reach for boat trailer loading applications.
• One-year limited warranty: Includes manufacturer warranty coverage for added support.

Product Details

• Brand: Powerwinch
• Model: 912
• Part Number: P77912
• Product type: 12V electric trailer winch
• Maximum suggested boat length: 30 feet
• Maximum boat weight: 11,500 pounds
• Line speed: 8 feet per minute
• Vertical lift capacity: 4,000 pounds, single line
• Double-line capacity: 7,500 pounds
• Power source: 12 volts
• Circuit breaker: 60 amps
• Gear ratio: 450:1
• Cable: 40 feet x 7/32 inch
• Unit weight: 35 pounds
• Unit dimensions: 11 inches deep x 11 inches wide x 9 inches high
• Remote control: No
• Light: No

Choose the Powerwinch 912 Trailer Winch for dependable 12-volt boat trailer retrieval with flexible single- and double-line pulling capability.

Owner’s Manual: View the owner’s manual

Important: The Powerwinch 912 is not to be considered or used as a hoist.
