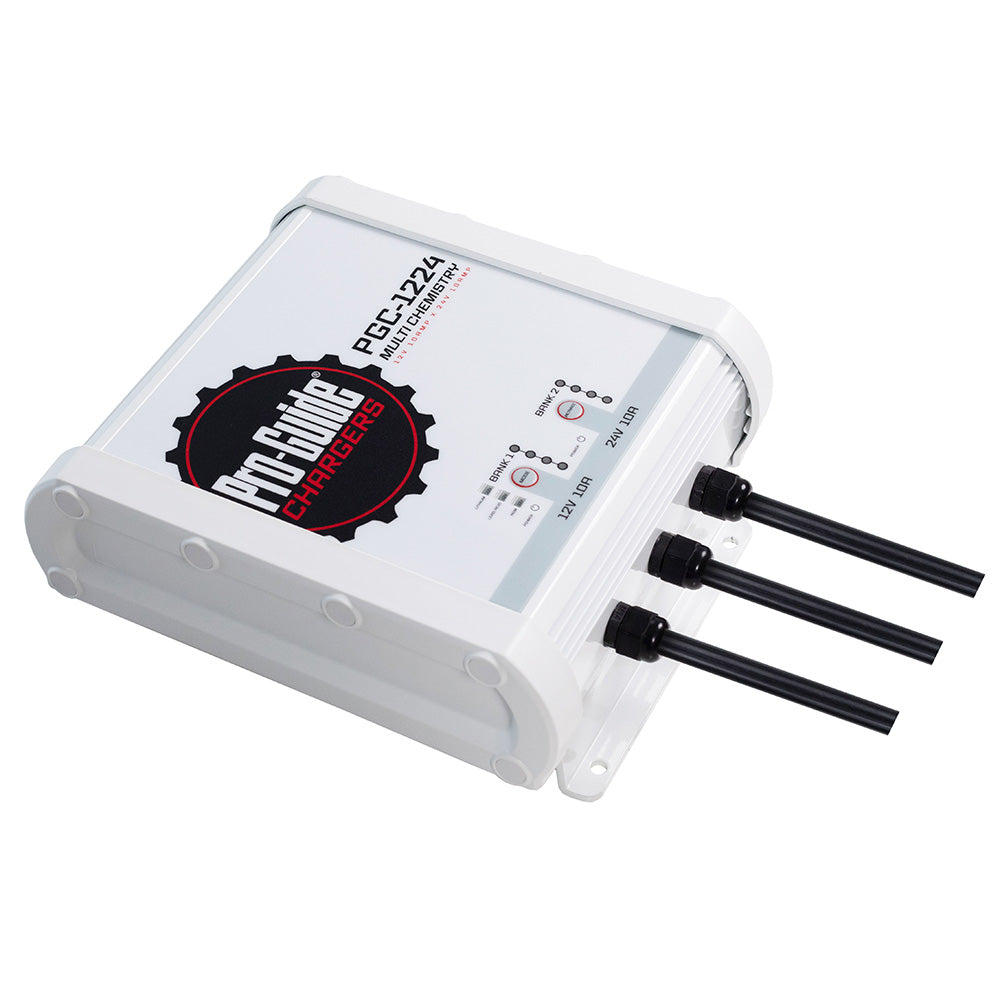

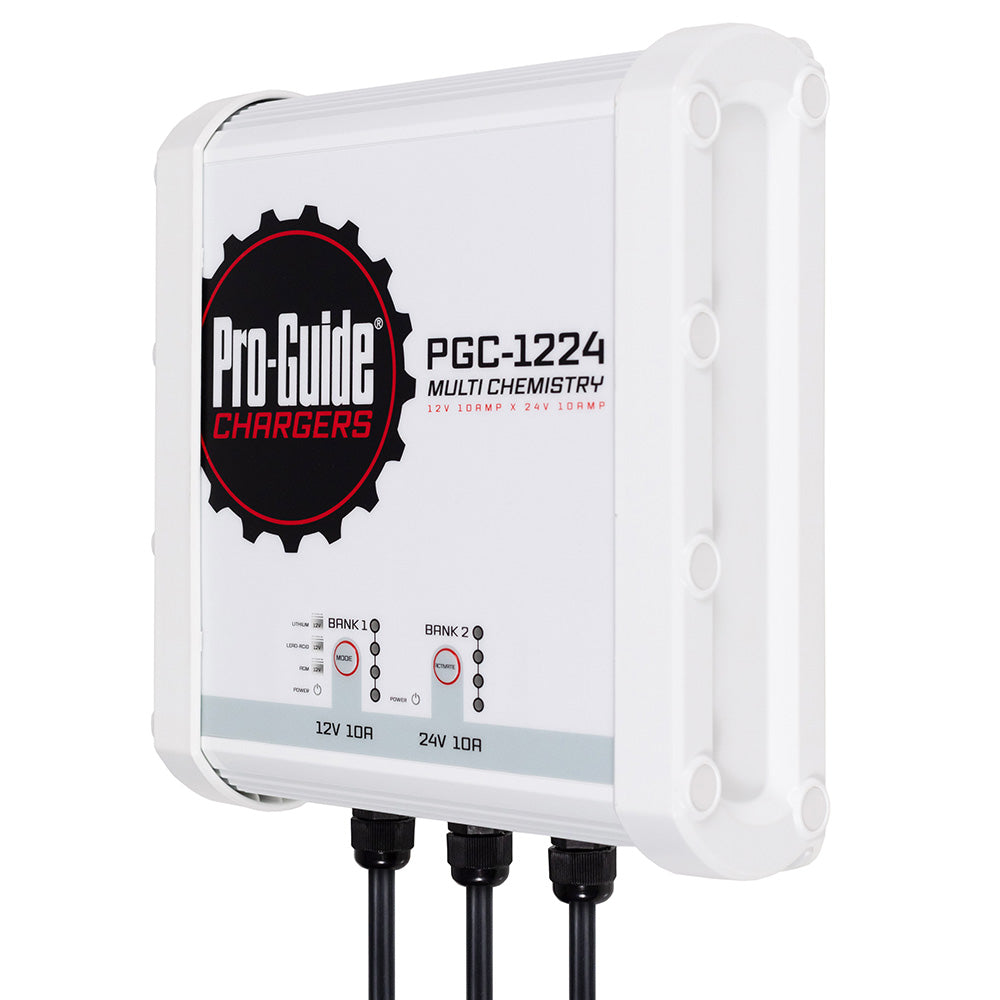

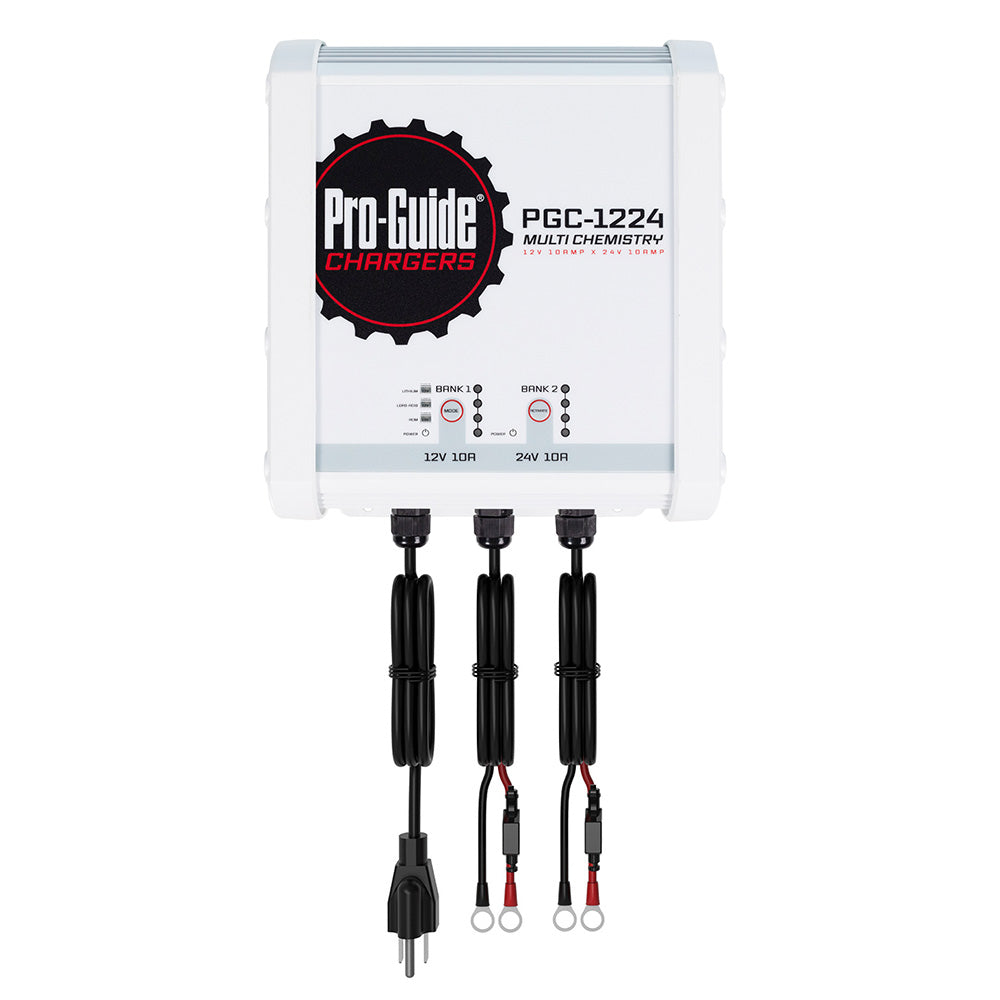

Pro-Guide Batteries 2 Bank On-Board Battery Charger PGC-1224 for 12V and 24V Lithium, AGM, Lead Acid

2 Bank On-Board Battery Charger - (1) 12V / (1) 24V - 20-Amp

The Pro-Guide PGC-1224 is a 12V Lead Acid / AGM / Lithium 24V Lithium on-board battery charger.

Each 12V Bank can select one of three charge profiles, and allows the consumer to mix and match for their optimum setup.

Allowing the charger to supply a single 12V Charging Bank for Lead Acid, AGM, or Lithium Chemistries, and then a second bank to charge a 24V Lithium Battery(s).

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each batterys state of charge on a specific timeline, ensuring that youll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.

Protection:

• Output Over-Voltage
• Output Over Current
• Output Short Circuit
• Output Reverse Polarity
• Over Temperature

Input:

• Input Voltage: AC 110-120V
• Frequency: 60Hz
• Input Current: <6A

Specifications:

• Battery Type: 12V Lead Acid/AGM/Lithium 24V Lithium
• Output Voltage: DC 12V x 1 DC 24V x 1
• Max Output Voltage: 14.1-14.3 for Lead Acid Battery, 14.3-14.7 for AGM Battery, 14.4-14.7 for Lithium Battery 28.8-29.2 for 24V Lithium Battery
• Output Current: 10A x2
• Length: 8.19
• Width: 9.96
• Height: 3.86
• Weight: 14.3 lbs
• IP Rating: 68

The Pro-Guide PGC-1224 is a versatile and reliable on-board battery charger designed for marine, RV, and utility applications. This 2-bank charger provides 20 amps of power, capable of simultaneously charging one 12V bank and one 24V bank, making it ideal for mixed battery chemistries including Lead Acid, AGM, and Lithium. Its intelligent charging algorithm ensures each battery receives the optimal charge profile, boosting performance and extending battery life. The charger features selectable charge profiles for each bank, allowing users to customize the setup based on their specific batteries and usage patterns.
Easy to operate, the PGC-1224 offers a manual activation mode to wake sleeping Lithium batteries or to initiate charging at your convenience. Its continuous, year-round plug-in capability means your batteries are always maintained and ready for your next adventure. Safety is a priority with built-in protections against over-voltage, over-current, short circuits, reverse polarity, and overheating, ensuring reliable operation in demanding environments. The charger’s robust IP68 rating guarantees resistance to dust and water, making it suitable for harsh conditions.
Designed with user convenience and durability in mind, the PGC-1224 features compact dimensions, lightweight construction, and a simple installation process. With over 40 years of expertise, Pro-Guide Batteries backs this product with a 2-year free warranty and a total of 4 years of coverage, providing peace of mind for long-term dependability. Whether maintaining batteries on a boat, RV, or off-grid system, this charger offers dependable, efficient, and safe battery management that keeps you powered and ready for your next journey.

Features:

• Dual Bank Charging: Simultaneously charges one 12V and one 24V battery bank with 20 amps total output

• Flexible Compatibility: Supports Lead Acid, AGM, and Lithium chemistries for versatile use

• Selectable Charge Profiles: Customize charging for each bank to optimize battery performance

• Manual Activation Mode: Wake sleeping Lithium batteries or manually initiate charging

• Intelligent Algorithm: Continuously monitors and adjusts charging to ensure full, safe charge

• Durable Design: IP68 rated for dust and water resistance, suitable for harsh environments

• Built-in Safety Protections: Over-voltage, over-current, short circuit, reverse polarity, and over-temperature safeguards

• Year-round Plug-in Operation: Maintain batteries constantly without disconnecting or manual intervention

• Compact and Lightweight: Easy to install and suitable for limited space applications

• Trusted Brand: Backed by Pro-Guide Batteries with a 2-year free and 4-year total warranty
