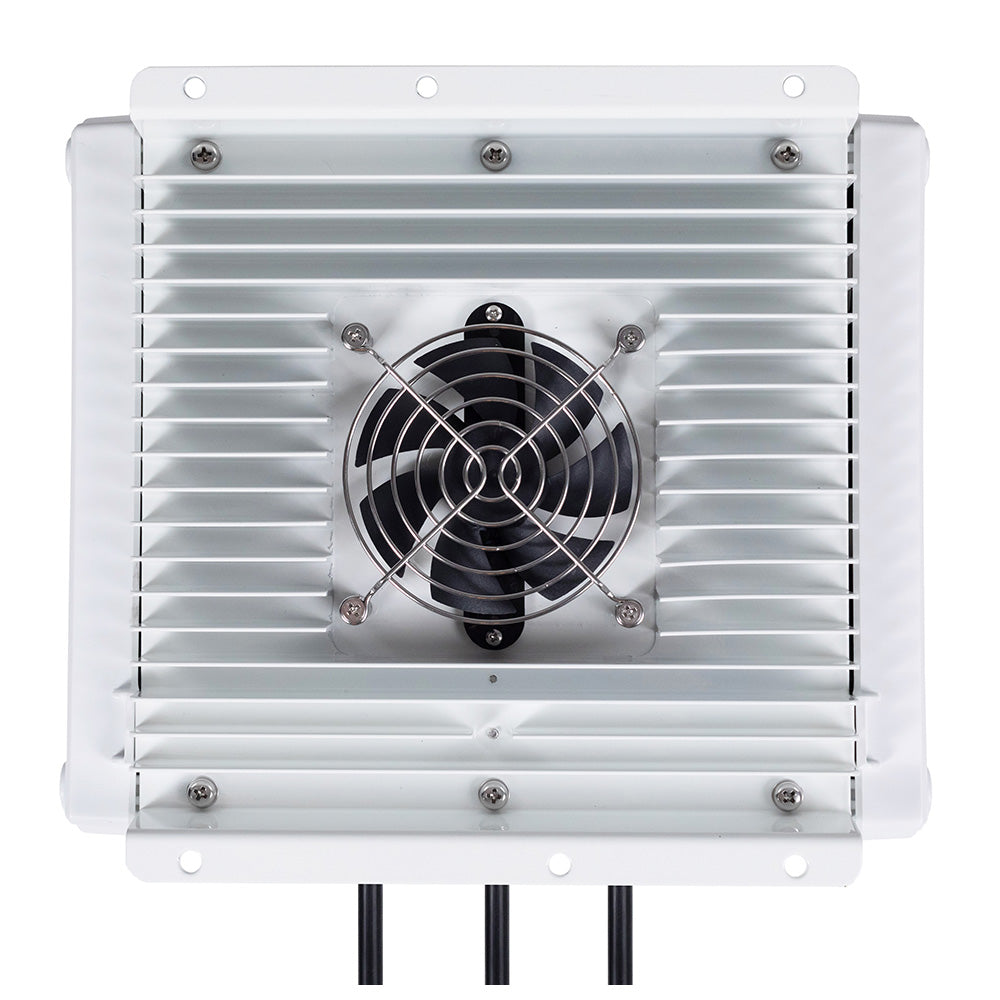

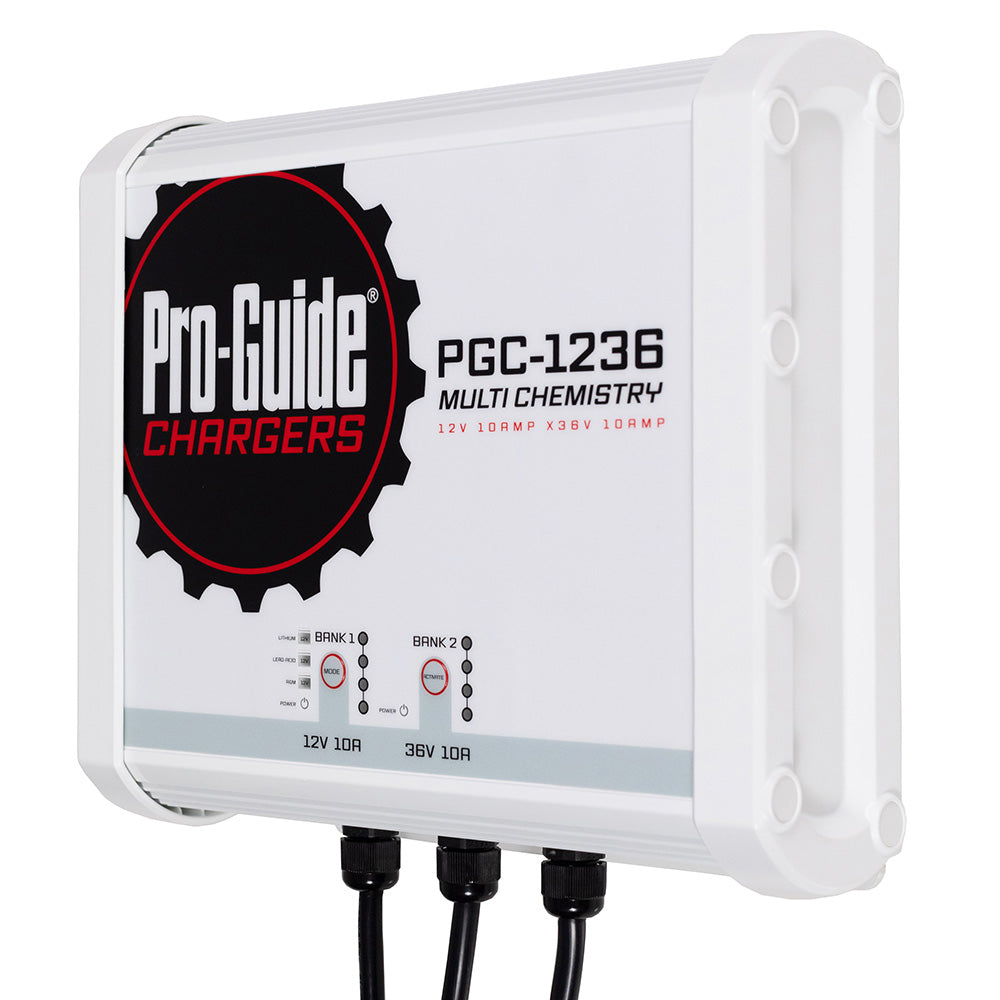

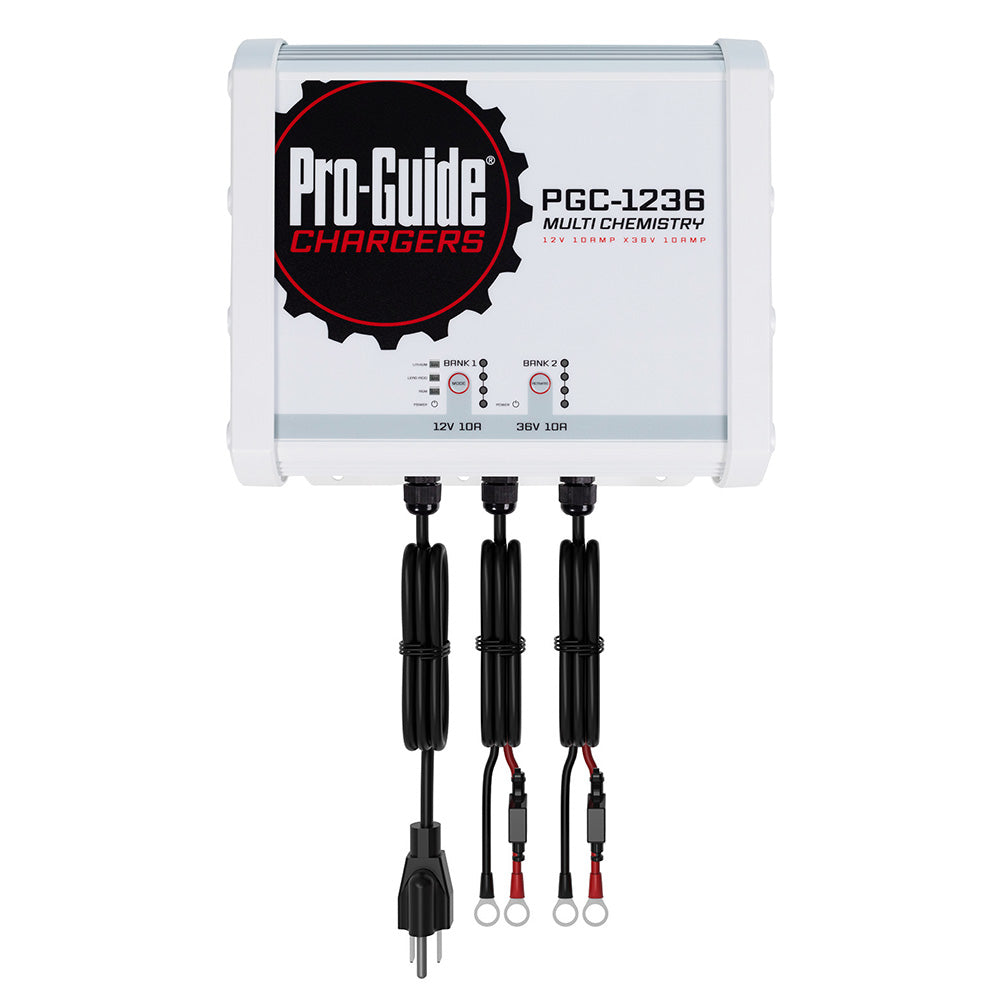

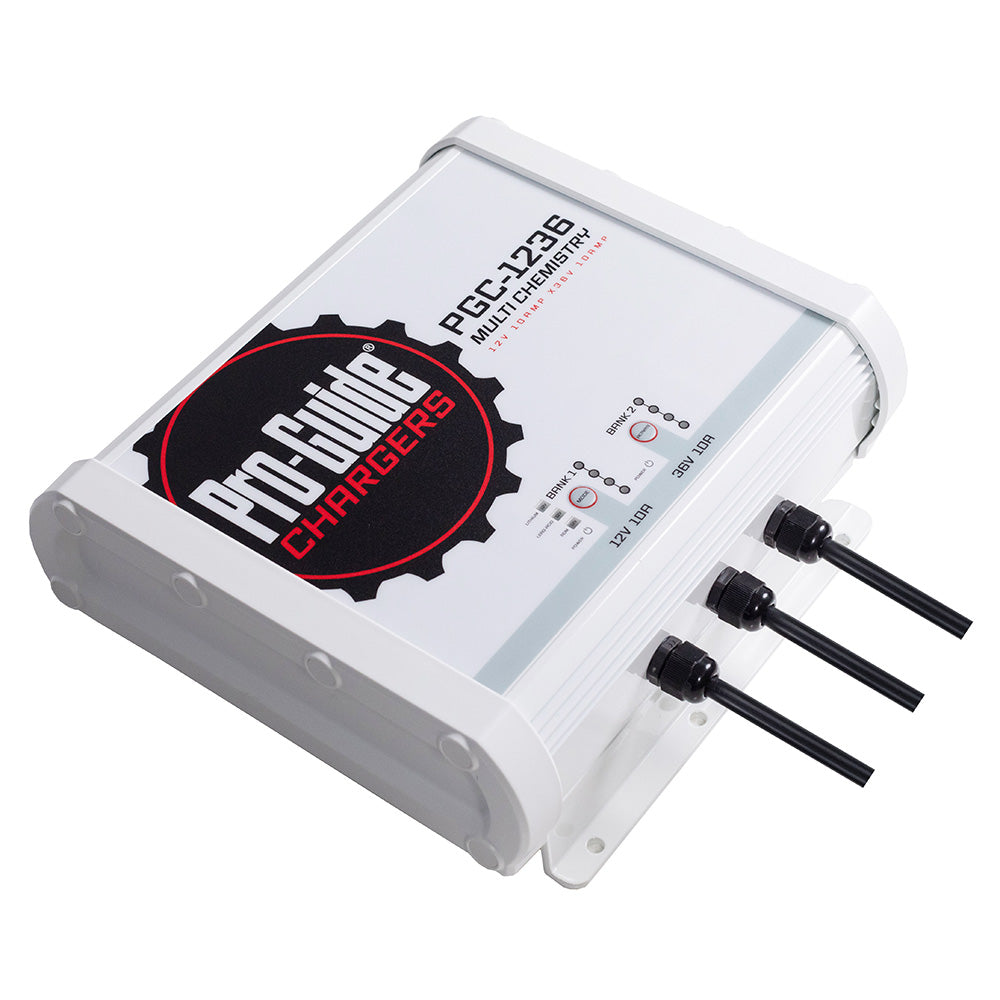

Pro-Guide Batteries 2 Bank On-Board Battery Charger PGC-1236 – 12V and 36V Lithium/Lead Acid Charging System

2 Bank On-Board Battery Charger - (1) 12V / (1) 36V - 20-Amp

The Pro-Guide PGC-1236 is a 12V Lead Acid / AGM / Lithium 36V Lithium on-board battery charger.

Each 12V Bank can select one of three charge profiles, and allows the consumer to mix and match for their optimum setup.

Allowing the charger to supply a single 12V Charging Bank for Lead Acid, AGM, or Lithium Chemistries, and then a second bank to charge a 36V Lithium Battery(s).

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each batterys state of charge on a specific timeline, ensuring that youll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.

Protection:

• Output Over-Voltage
• Output Over Current
• Output Short Circuit
• Output Reverse Polarity
• Over Temperature

Input:

• Input Voltage: AC 110-120V
• Frequency: 60Hz
• Input Current: <6A

Specifications:

• Battery Type: 12V Lead Acid/AGM/Lithium 36V Lithium
• Output Voltage: DC 12V x 1 DC 36V x 1
• Max Output Voltage: 14.1-14.3 for Lead Acid Battery, 14.3-14.7 for AGM Battery, 14.4-14.7 for Lithium Battery 43-44 for 36V Lithium Battery
• Output Current: 10A x2
• Length: 10.47
• Width: 9.96
• Height: 3.86
• Weight: 17.9 lbs
• IP Rating: 68

The Pro-Guide PGC-1236 is a versatile, high-performance on-board battery charger designed for demanding applications requiring reliable power management. Capable of charging both 12V Lead Acid or AGM batteries and 36V Lithium batteries, this charger ensures your batteries are always ready for your next adventure. Its intelligent design allows you to select from three different charge profiles for each 12V bank, giving you the flexibility to optimize your setup based on your specific battery chemistry and usage needs. This feature is especially beneficial for mixed systems, enabling seamless charging of different battery types within the same system. The PGC-1236's activation mode provides a quick voltage pulse to wake dormant Lithium batteries, and a manual activation option ensures ease of maintenance and troubleshooting. Built to stay plugged in year-round, the charger utilizes an advanced algorithm that continuously monitors each battery’s state of charge, ensuring they are maintained at optimal levels without overcharging. Pro-Guide's reputation for quality is backed by over 40 years of experience, and this model comes with a comprehensive 2-year free warranty and a total of 4 years of coverage, reflecting their confidence in durability and performance. Safety features include protection against over-voltage, over-current, short circuits, reverse polarity, and overheating, providing peace of mind during operation. The PGC-1236 operates on standard AC power, drawing less than 6 amps at 110-120V, and is built with durable construction rated IP68 for water and dust resistance. Whether you’re outfitting a boat, RV, or off-grid system, this charger offers reliable, flexible, and efficient power management to keep your batteries charged and ready for action.

Features:

• Flexible charge profiles for 12V Lead Acid, AGM, and Lithium batteries

• Simultaneous charging of one 12V bank and one 36V Lithium bank

• Activation Mode to wake sleeping Lithium batteries

• Manual activation for troubleshooting and maintenance

• Intelligent charging algorithm for optimal battery health

• Durable IP68 rated enclosure for water and dust resistance

• Over-voltage, over-current, short circuit, reverse polarity, and over-temperature protection

• Low input current of less than 6A at 110-120V AC

• Compact design with a length of approximately 10.5 inches, width of 10 inches, and height of 3.9 inches

• Heavy-duty construction weighing around 18 pounds for reliable, long-term use
