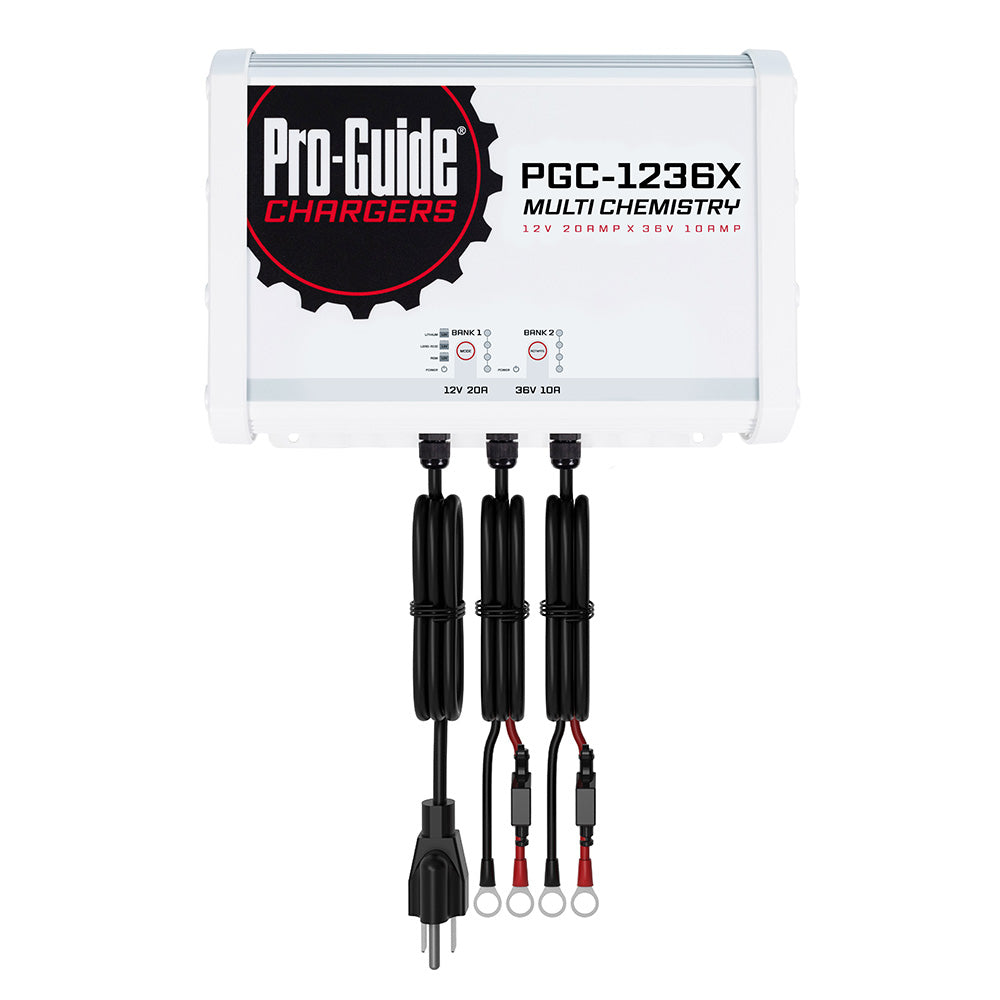

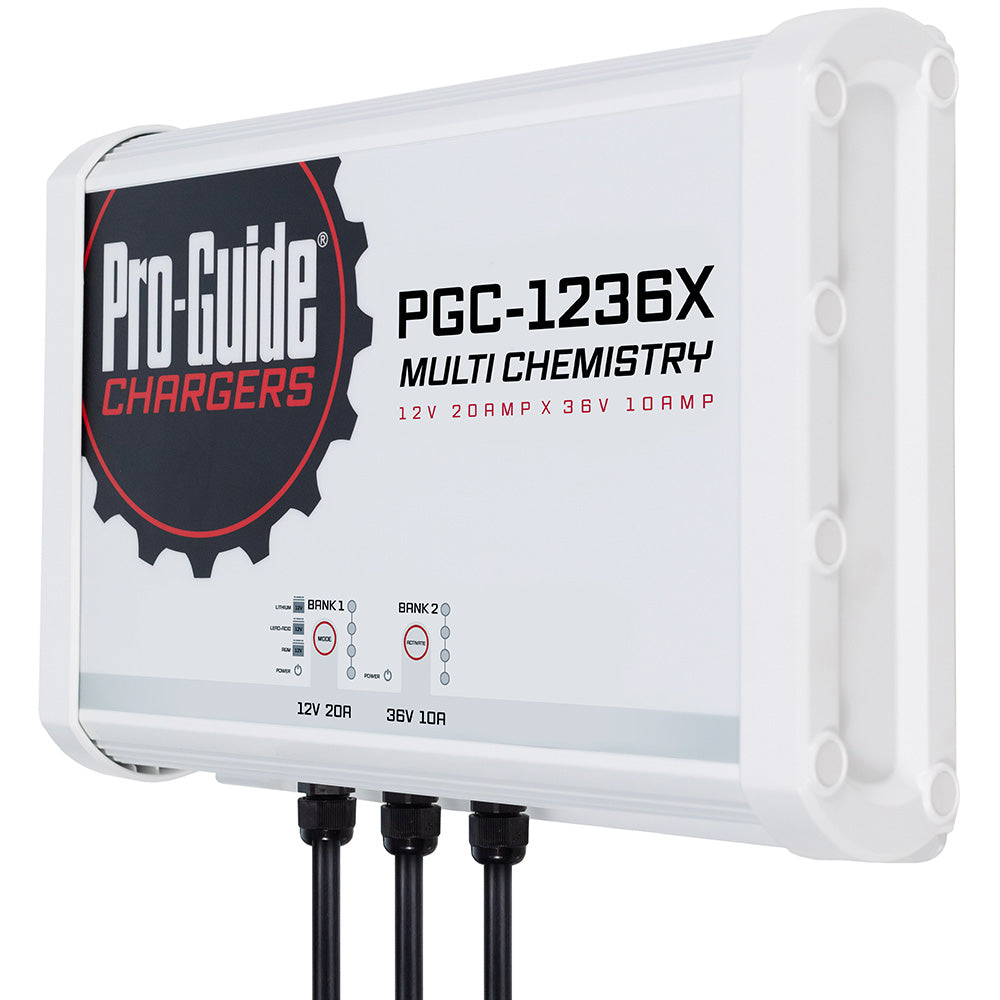

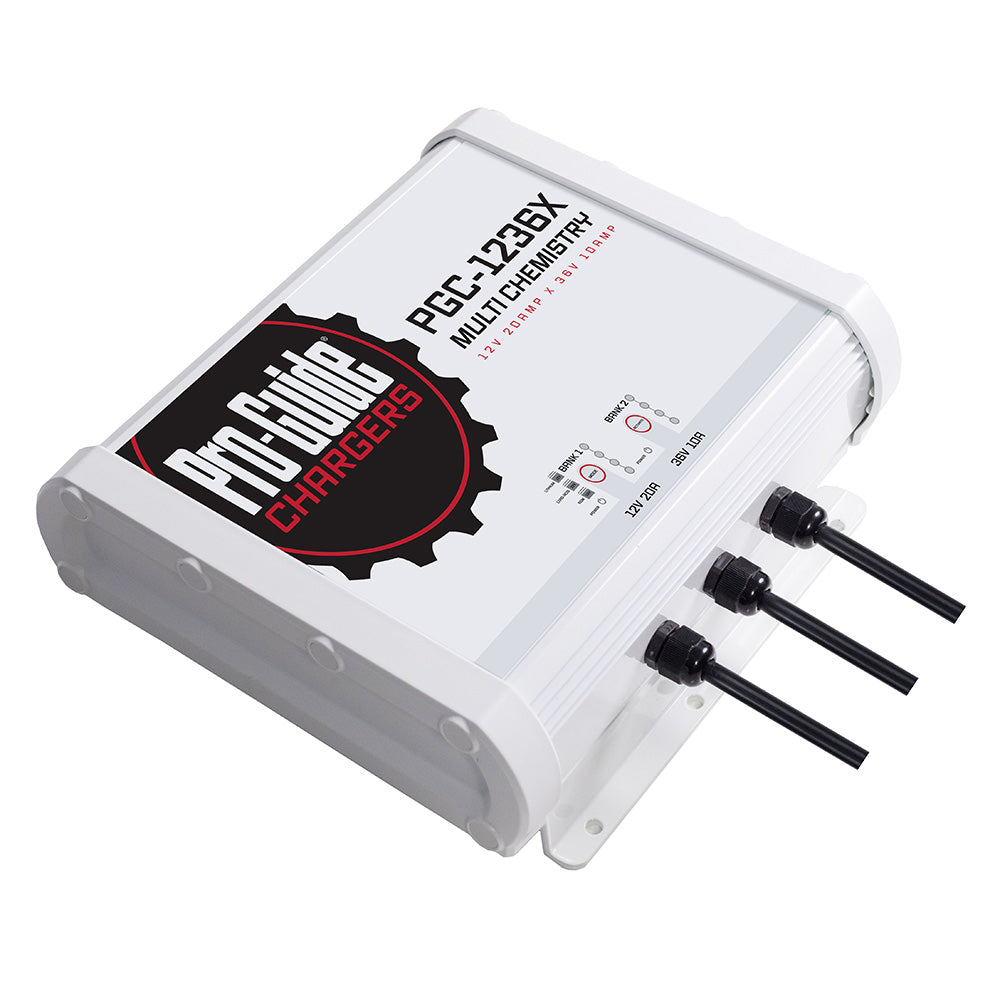

Pro-Guide Batteries 2 Bank On-Board Battery Charger PGC-1236X for 12V and 36V Lithium and Lead Acid Batteries

2 Bank On-Board Battery Charger - (1) 12V / (1) 36V - 30-Amp

The Pro-Guide PGC-1236x is a 12V Lead Acid / AGM / Lithium 36V Lithium on-board battery charger.

Each 12V Bank can select one of three charge profiles, and allows the consumer to mix and match for their optimum setup.

Allowing the charger to supply a single 12V Charging Bank for Lead Acid, AGM, or Lithium Chemistries, and then a second bank to charge a 36V Lithium Battery(s).

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each batterys state of charge on a specific timeline, ensuring that youll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.

Protection:

• Output Over-Voltage
• Output Over Current
• Output Short Circuit
• Output Reverse Polarity
• Over Temperature

Input:

• Input Voltage: AC 110-120V
• Frequency: 60Hz
• Input Current: <6A

Specifications:

• Battery Type: 12V Lead Acid/AGM/Lithium 36V Lithium
• Output Voltage: DC 12V x 1 DC 36V x 1
• Max Output Voltage: 14.1-14.3 for Lead Acid Battery, 14.3-14.7 for AGM Battery, 14.4-14.7 for Lithium Battery 43-44 for 36V Lithium Battery
• Output Current: 20A for 12V Bank 10A for 36V Bank
• Length: 13.15
• Width: 9.96
• Height: 3.86
• Weight: 24.3 lbs
• IP Rating: 68

The Pro-Guide PGC-1236X is a versatile on-board battery charger designed to meet the demands of various battery chemistries including 12V Lead Acid, AGM, and 36V Lithium batteries. This 30-amp charger features two independent banks, allowing users to optimize charging setups by selecting from three different charge profiles for each bank. Whether you need to charge a single lead-acid battery or simultaneously maintain a 36V lithium pack, the PGC-1236X provides reliable and efficient power management. Its intelligent charging algorithm continuously monitors each battery's state of charge, ensuring optimal performance and longevity for your batteries. The charger’s activation mode can wake sleeping lithium batteries with a brief voltage supply or be manually activated with a simple hold button, making maintenance straightforward and hassle-free. Designed for year-round installation, the PGC-1236X is built with robust protection features including over-voltage, over-current, short circuit, reverse polarity, and over-temperature safeguards, providing peace of mind during operation. With an input voltage of 110-120VAC at 60Hz and a low current draw of less than 6A, this charger is energy-efficient and easy to integrate into your existing system. Its durable construction, rated IP68 for water and dust resistance, ensures reliable performance in demanding environments. Weighing approximately 24 pounds and measuring about 13 inches long, 10 inches wide, and 4 inches tall, the PGC-1236X is engineered for stability and ease of installation. Backed by over 40 years of industry experience and supported by a 2-year free and 4-year total warranty, Pro-Guide Batteries delivers quality and dependability you can trust for all your battery maintenance needs.

Features:

• Dual Bank Configuration: Supports one 12V bank and one 36V bank for flexible charging options

• Charge Profile Selection: Allows choosing among three profiles per bank for optimal setup

• Multi-Chemistry Compatibility: Suitable for Lead Acid, AGM, and Lithium batteries

• Activation Mode: Short voltage pulse or manual hold button to wake sleeping lithium batteries

• Intelligent Monitoring: Continuously checks battery state of charge for efficient maintenance

• Robust Protection: Includes over-voltage, over-current, short circuit, reverse polarity, and over-temperature safeguards

• Water and Dust Resistance: IP68 rated for reliable outdoor and demanding environment use

• Energy Efficient: Low input current with a straightforward 110-120V AC power connection

• Durable Construction: Heavy-duty design built to stay plugged in year-round

• Trusted Brand: Over 40 years of industry expertise with comprehensive warranty coverage
