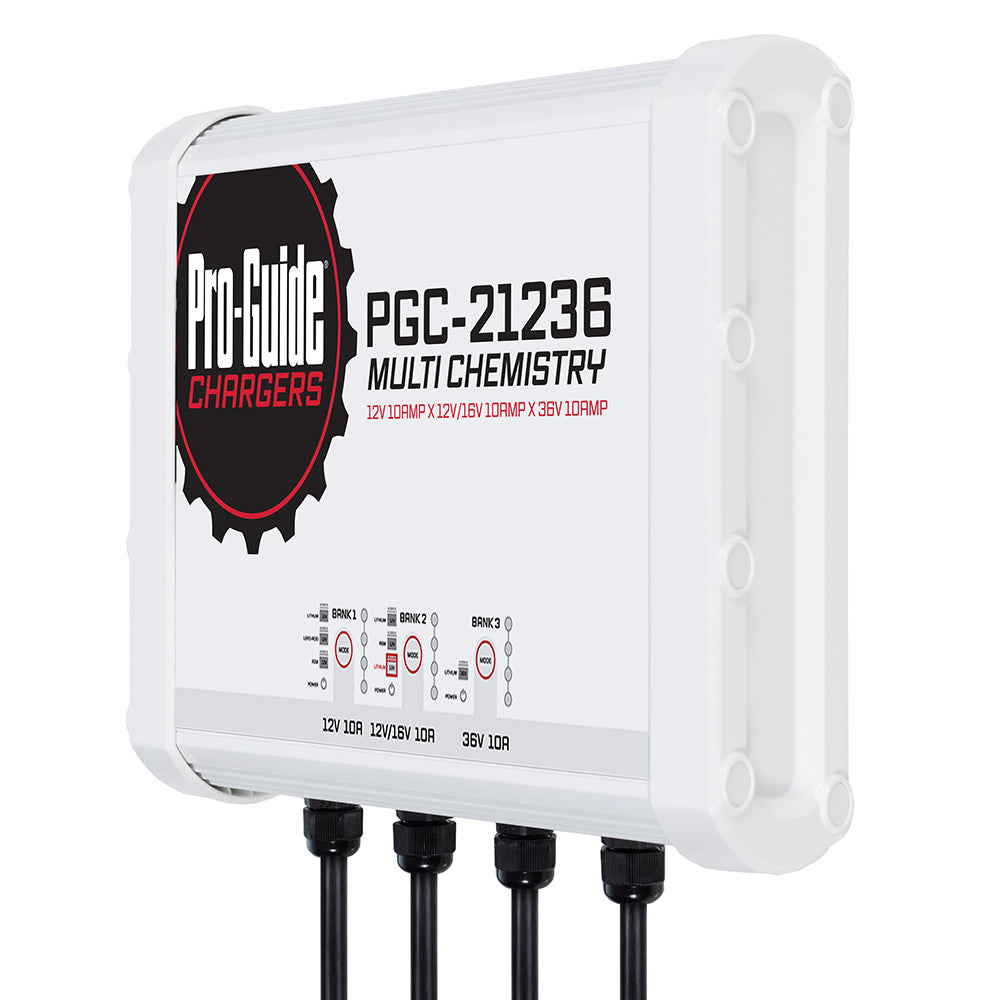

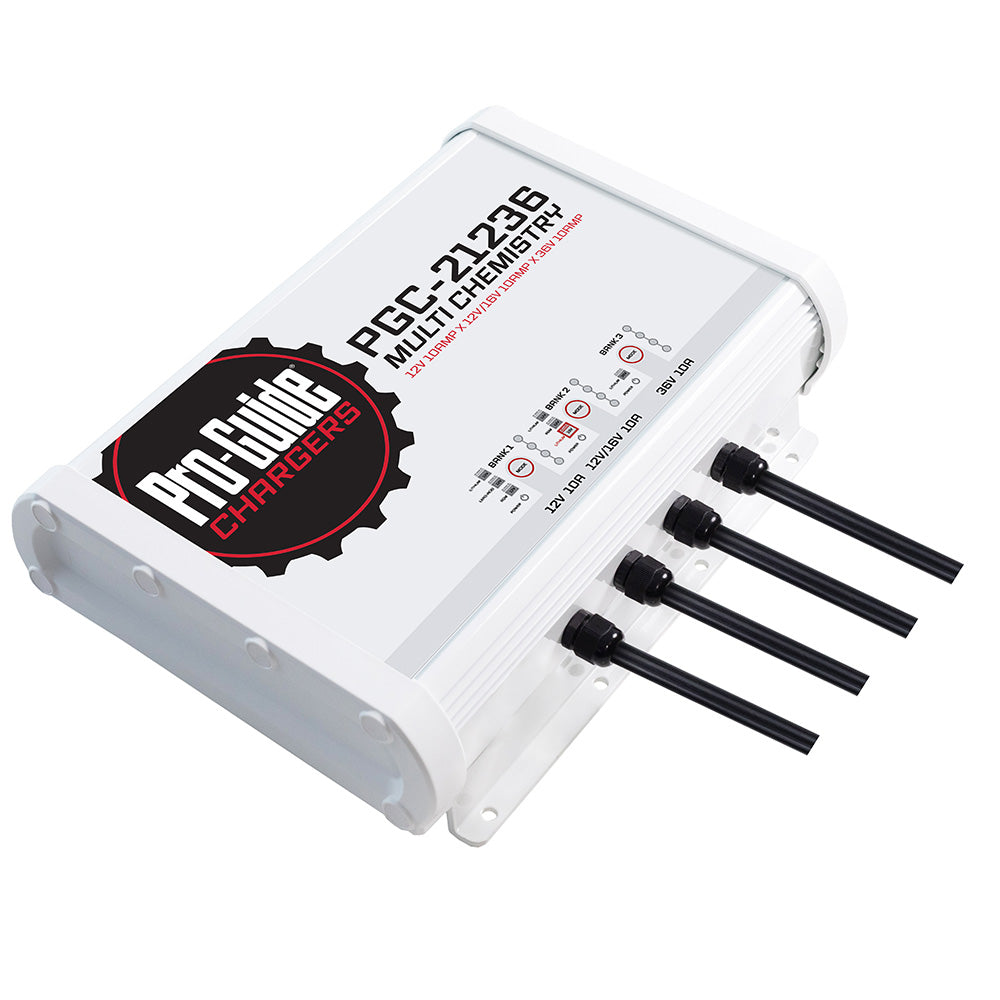

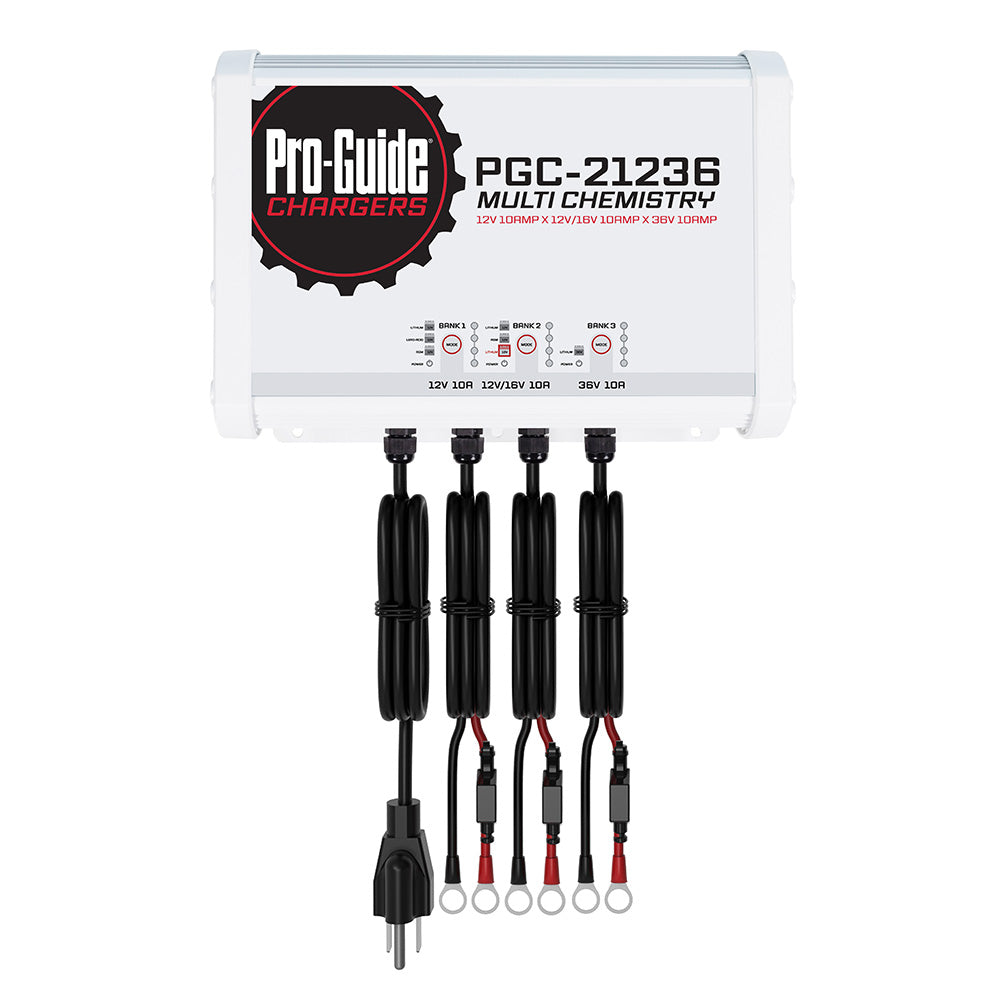

Pro-Guide Batteries 3 Bank On-Board Battery Charger PGC-21236 – 12V, 16V, and 36V Lithium and Lead Acid Compatible, 30 Amp

3 Bank On-Board Battery Charger - (1) 12V / (1) 12/16V / (1) 36V - 30-Amp

The Pro-Guide PGC-21236 is a 12V Lead Acid / AGM / Lithium, 16V Lithium 36V Lithium on-board battery charger.

Each 12V Bank can select one of three charge profiles, and allows the consumer to mix and match for their optimum setup.

Allowing the charger to supply a single 12V Charging Bank for Lead Acid, AGM, or Lithium Chemistries, a second bank to charge a 12V AGM, Lithium, or 16V Lithium, and then a third bank to charge a 36V Lithium Battery(s).

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each batterys state of charge on a specific timeline, ensuring that youll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.

Protection:

• Output Over-Voltage
• Output Over Current
• Output Short Circuit
• Output Reverse Polarity
• Over Temperature

Input:

• Input Voltage: AC 110-120V
• Frequency: 60Hz
• Input Current: <6A

Specifications:

• Battery Type: 12V Lead Acid/AGM/Lithium, 16V Lithium 36V Lithium
• Output Voltage: DC 12V x 1, DC 12V/16V x 1 DC 36V x 1
• Max Output Voltage: 14.1-14.3 for 12V Lead Acid Battery, 14.3-14.7 for 12V AGM Battery, 14.4-14.7 for 12V Lithium Battery, 18-18.3 for 16V Lithium Battery, 43-44 for 36V Lithium Battery
• Output Current: 10A for 12V Bank, 10A for 12/16V Bank 10A for 36V Bank
• Length: 14.7
• Width: 9.96
• Height: 3.86
• Weight: 24.7 lbs
• IP Rating: 68

The Pro-Guide PGC-21236 is a versatile and reliable on-board battery charger designed to meet the demanding needs of modern power systems. This 3-bank charger efficiently manages multiple battery chemistries, including 12V Lead Acid, AGM, Lithium, 16V Lithium, and 36V Lithium, making it ideal for a wide range of applications from recreational vehicles to commercial equipment. Each bank can be set with one of three customizable charge profiles, allowing users to mix and match for optimal performance and longevity of their batteries. The charger’s intelligent algorithm ensures each battery’s state of charge is monitored and maintained, providing peace of mind and readiness for your next adventure or workday. Designed to stay plugged in year-round, the PGC-21236 offers convenience and consistent performance without the need for frequent disconnection. Activation modes include a quick voltage pulse to wake sleeping Lithium batteries or a manual hold button for precise control, ensuring compatibility with various battery states. Safety features such as over-voltage, over-current, short circuit, reverse polarity, and over-temperature protections ensure reliable operation under all conditions. With a compact footprint and robust construction, this charger is built to last and backed by Pro-Guide’s 2-year free and 4-year total warranty, reflecting over four decades of expertise in power management. Whether you’re maintaining deep-cycle batteries or lithium reserves, this charger provides efficient, safe, and intelligent charging for your most critical power sources.

Features:

• Three bank design supports multiple battery chemistries including 12V Lead Acid, AGM, Lithium, 16V Lithium, and 36V Lithium

• Selectable charge profiles for each bank optimize battery health and performance

• Activation Mode offers quick voltage pulses or manual hold for waking or maintaining batteries

• Intelligent PGC Algorithm continuously monitors and manages each battery's charge status

• Durable, weather-resistant design suitable for year-round installation

• Comprehensive protection features: over-voltage, over-current, short circuit, reverse polarity, and over-temperature

• Compact size with easy installation, ideal for on-board applications

• High-quality build backed by Pro-Guide’s 2-year free warranty and total 4-year coverage
