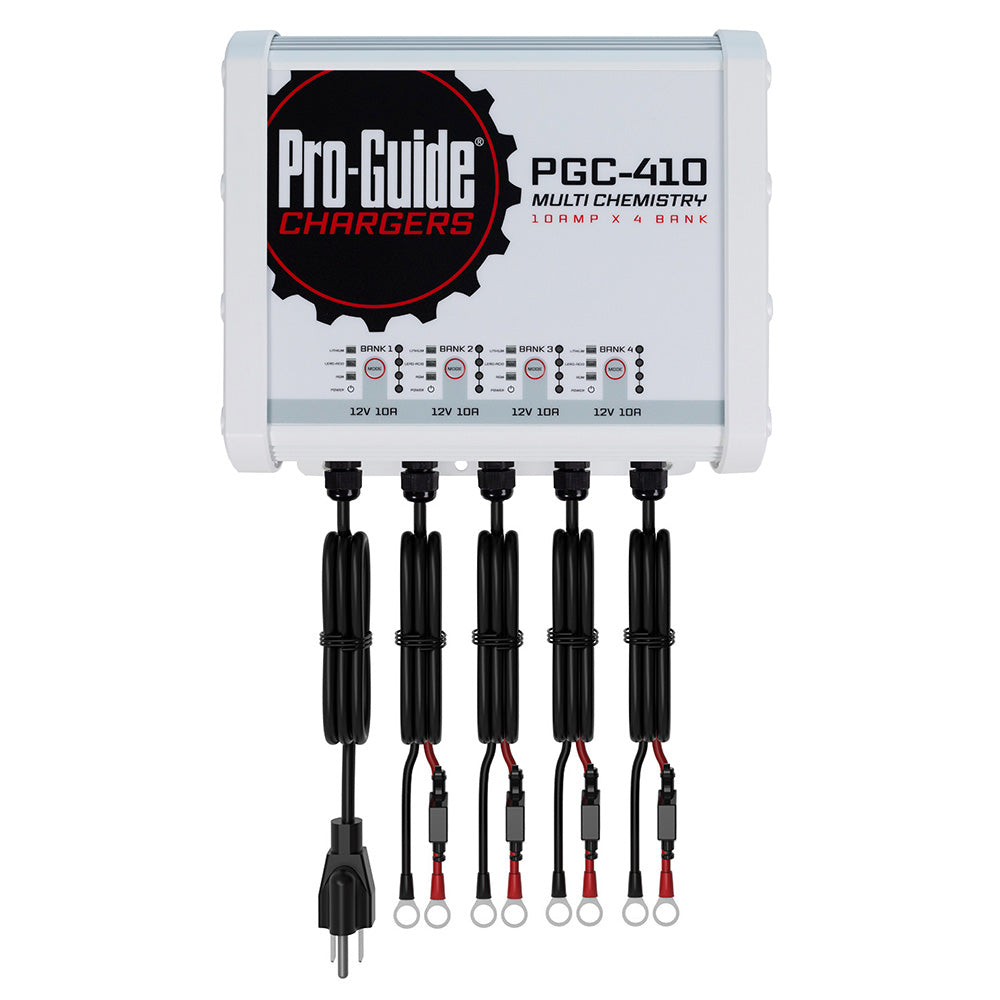

Pro-Guide Batteries PGC-410 4 Bank 12V On-Board Battery Charger – 40 Amp

4 Bank On-Board Battery Charger - 12V - 40-Amp

The Pro-Guide PGC-410 is a 12V Lead Acid / AGM / Lithium on-board battery charger.

Each Bank can select one of three charge profiles, and allows the consumer to mix and match for their optimum setup.

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each batterys state of charge on a specific timeline, ensuring that youll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.

Protection:

• Output Over-Voltage
• Output Over Current
• Output Short Circuit
• Output Reverse Polarity
• Over Temperature

Input:

• Input Voltage: AC 110-120V
• Frequency: 60Hz
• Input Current: <6A

Specifications:

• Battery Type: Lead Acid/AGM/Lithium
• Output Voltage: DC 12V x 4
• Max Output Voltage: 14.1-14.3 for Lead Acid Battery, 14.3-14.7 for AGM Battery, 14.4-14.7 for Lithium Battery
• Output Current: 10A x4
• Length: 10.71
• Width: 9.96
• Height: 3.86
• Weight: 18.7 lbs
• IP Rating: 68

The Pro-Guide Batteries PGC-410 is a versatile 12V on-board battery charger designed to efficiently power and maintain multiple battery banks. Ideal for Lead Acid, AGM, and Lithium batteries, this charger features three selectable charging profiles, allowing users to customize the charging process for optimal battery health and performance. The activation mode provides a quick voltage pulse to wake dormant Lithium batteries, while a manual activation option ensures convenience during maintenance or troubleshooting.

This charger is built for year-round use, with an intelligent algorithm that continuously monitors each battery's state of charge. Its smart design ensures your batteries are fully charged and ready for your next adventure, whether you're on a boat, RV, or utility vehicle. Pro-Guide's commitment to quality is reflected in the 2-year free and 4-year total warranty, backing this durable, reliable charger.

Safety features include protection against over-voltage, over-current, short circuits, reverse polarity, and over-temperature conditions, providing peace of mind during operation. The PGC-410 operates on standard 110-120V AC power, drawing less than 6 amps, and supplies a combined 40 amps across four banks at 12V.

Designed with compact dimensions and a rugged IP68 rating, this charger is suitable for harsh environments and continuous operation. The PGC-410's robust construction and intelligent features make it an essential component for maintaining battery health and ensuring reliable power across various applications.

Features:

• Multiple Charge Profiles: Allows selection among three charging modes to optimize battery performance

• Activation Mode: Provides a quick voltage pulse to wake sleeping Lithium batteries or manual activation for maintenance

• Intelligent Monitoring: Continuously checks each battery's state of charge for optimal charging efficiency

• Versatile Compatibility: Suitable for Lead Acid, AGM, and Lithium batteries

• Durable Design: IP68 rated enclosure for protection against harsh environmental conditions

• Safety Protections: Over-voltage, over-current, short circuit, reverse polarity, and temperature safeguards

• High Output Capacity: 40 amps total across four independent banks for powerful and reliable charging
