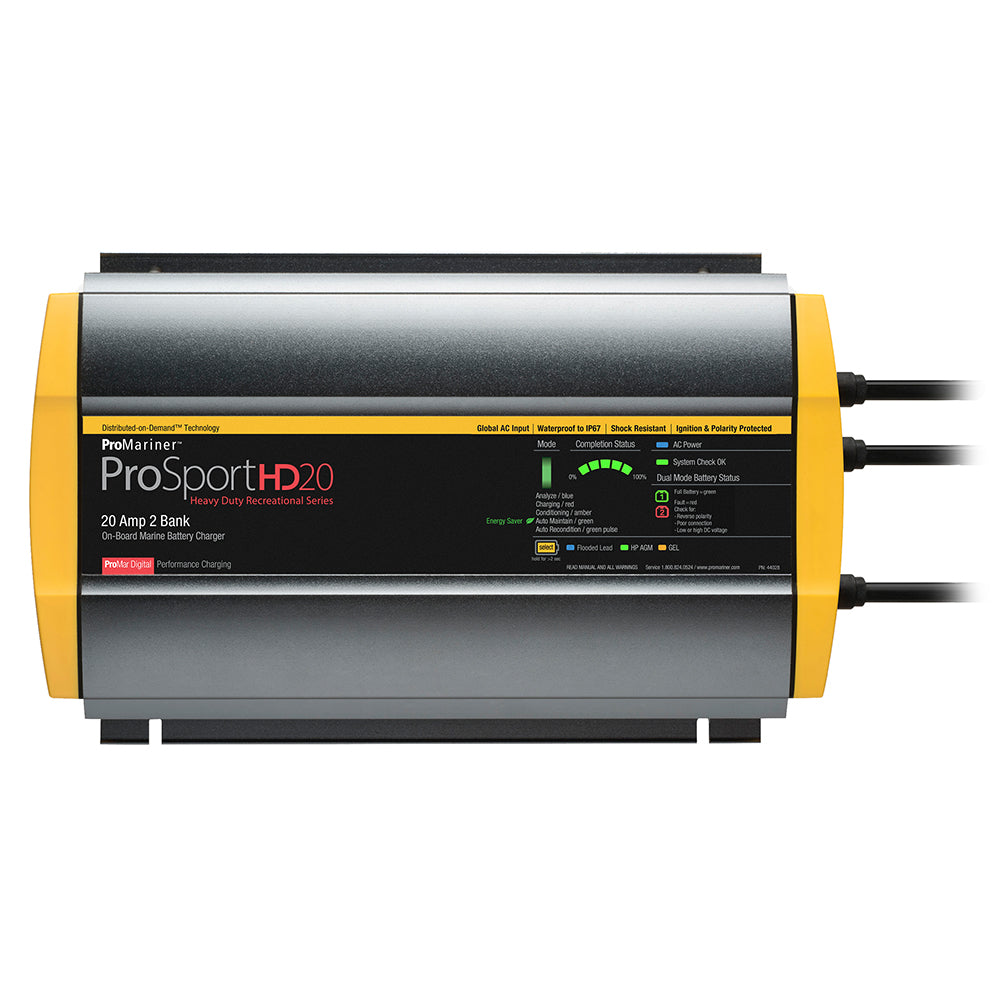

ProSportHD 20 Global Gen 4 - 20 Amp - 2 Bank Battery Charger
*C13 Adapter Plug Required*
ProSportHD Generation 4 boasts a tri-surface heatsink design. This heavy-duty lightweight design delivers significantly faster charging through optimal cooling, while delivering true rated amp output during charge mode.
ProSportHD's enhanced microprocessor and software provides digital features including: fuel gauge style Charge Completion Monitor, Charge Mode, individual Fault indicators and three digitally selectable performance charge profiles for Flooded (lead acid), AGM and GEL batteries. HP AGM profile on ProSportHD 20 Dual only.
Fully automatic 5-stage charging enhances battery performance while extending battery life. System Check OK and Battery Status indicators provide real time installation and battery fault status.
Designed for use in harsh environments with our industrial grade jacketed DC and AC power cables which include molded strain reliefs and wire splitters.
Features:
- ProMar Digital Technology Microprocessor and software controlled charging technology for fast, precise charging
- Distributed-On-Demand Technology 100% of all available charging amps are utilized by distributing unused charging amps to any one or combination of all batteries as needed
- Heavy Duty Tri-Surface Extruded Heat Sink Design Upper, lower and rear facing heat sink design for optimal cooling while delivering true rated constant current charging amps during its two charge mode
- Expanded LED Display with Completion Status Gauge LED fuel gauge style completion status. Four color multi-stage mode LED status bar. Multi-stage Charge Mode, System Check OK, individual Battery Status and Battery Type indication
- Lightweight Design Up to 40% lighter compared to an epoxy filled charger
- Auto-Maintain Energy Saver Mode Monitor and auto maintain batteries only when needed to maintain full state of charge. This significantly reduces AC power consumption
- Fully Automatic 5-Stage Digital Performance Charging 5 Stages: Analyzes, charges, conditions, auto maintains and reconditions batteries once a month during storage periods. Fully charges and extends battery life
- Built-in Quality and Safety Dual inline waterproof fuses, reverse polarity, over-temperature, over-current, over-voltage and ignition protection. Certified to Marine UL 1236. CEC and DOE listed. FCC Class B
- Easy Installation and Operation Pre-wired with 6 AC and DC cables
- Battery Type: Group 2431 Flooded, AGM, HP AGM and GEL batteries
- 3 Year Warranty
Specifications:
- DC Voltage Systems: 12/24v
- Amps: 20
- No. of Batteries: 2
- AC DC Cable Length: 6'/6'
- Size: 7.9" x 13.6" x 2.9"
- Weight: 8.2 lbs
- AC In: 100-240v AC 50/60Hz
- AC Plug: IEC C14
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
ProMariner ProSportHD 20 Global Gen 4 20-Amp 2-Bank Battery Charger delivers fast, precise charging for compatible 12- or 24-volt marine battery systems. Designed for demanding environments, this lightweight marine battery charger uses advanced microprocessor-controlled technology, automatic charging profiles, and optimized cooling to provide dependable performance for boats and other marine applications.
The ProSportHD 20 Global Gen 4 features three digitally selectable charging profiles for flooded lead-acid, AGM, and GEL batteries, with an HP AGM profile available on the ProSportHD 20 Dual only. Its fully automatic five-stage charging process analyzes, charges, conditions, maintains, and periodically reconditions batteries during storage. Distributed-On-Demand Technology directs available charging current where it is needed across the connected battery banks, while the auto-maintain energy saver mode monitors battery condition and operates only when charging is required.
A tri-surface extruded heatsink promotes cooling while the charger delivers its rated charging output. The expanded LED display provides charge completion, charge mode, system check, battery status, and battery type information. Industrial-grade jacketed AC and DC cables include molded strain reliefs and wire splitters for installation in harsh environments. The charger is pre-wired with six AC and DC cables and requires a C13 adapter plug.
Key Features:
-
Feature: 20-amp, 2-bank charging for compatible marine battery systems.
-
Feature: Five-stage automatic charging analyzes, charges, conditions, maintains, and reconditions batteries.
-
Feature: Selectable charging profiles support flooded lead-acid, AGM, HP AGM, and GEL battery types.
-
Feature: Tri-surface heatsink design promotes cooling during charging.
-
Feature: LED indicators show completion status, charging mode, system status, battery status, and battery type.
-
Feature: Includes protection for reverse polarity, over-temperature, over-current, over-voltage, and ignition conditions.
Product Details:
-
Brand: ProMariner
-
Model/Part Number: ProSportHD 20 Global Gen 4 / 44028
-
Battery Banks: 2
-
DC Voltage Systems: 12/24 volts
-
Rated Output: 20 amps
-
Compatible Battery Type: Group 2431 flooded, AGM, HP AGM, and GEL batteries
-
AC Input: 100–240 volts AC, 50/60 Hz
-
AC Plug: IEC C14
-
Cable Length: 6-foot AC and 6-foot DC cables
-
Weight: 8.2 pounds
-
Warranty: 3 years
-
Required Accessory: C13 adapter plug required
-
Certifications and Listings: Certified to Marine UL 1236; CEC and DOE listed; FCC Class B
Choose the ProMariner ProSportHD 20 Global Gen 4 for intelligent, automatic two-bank marine battery charging with clear status monitoring and durable installation-ready construction.
