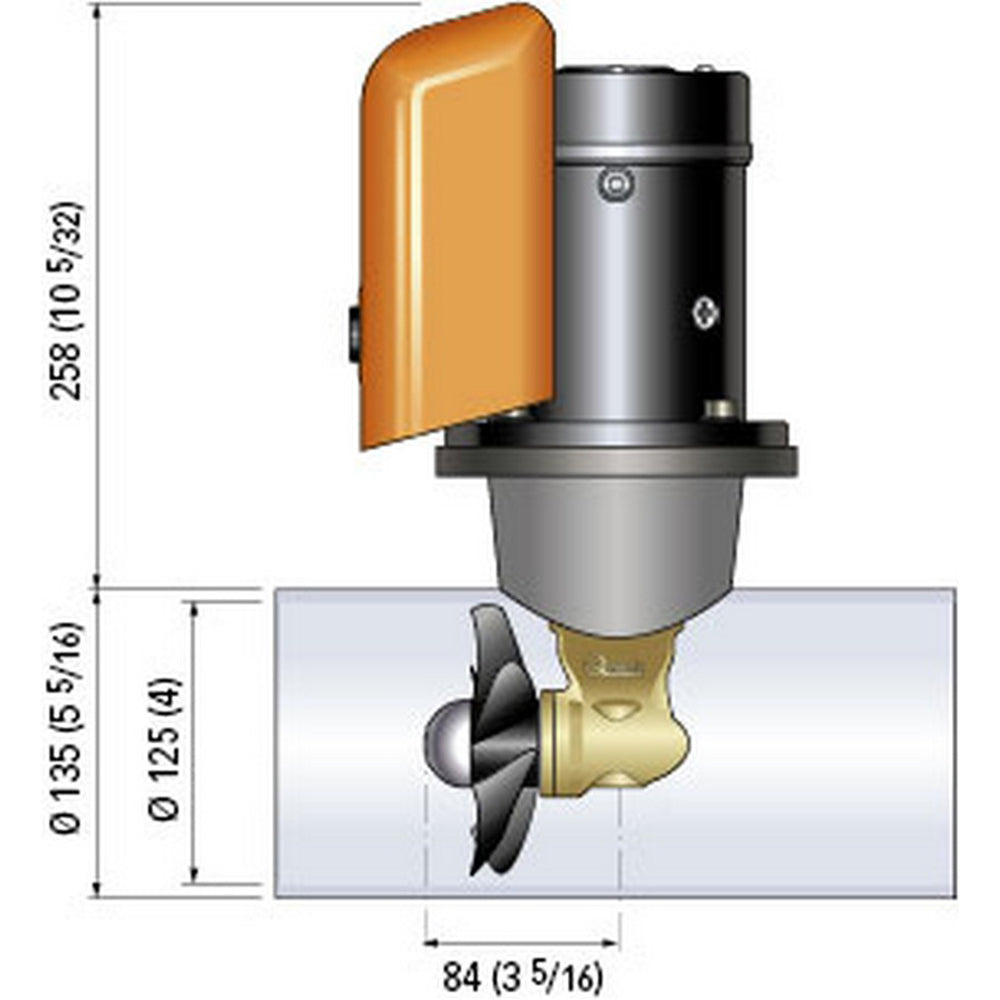

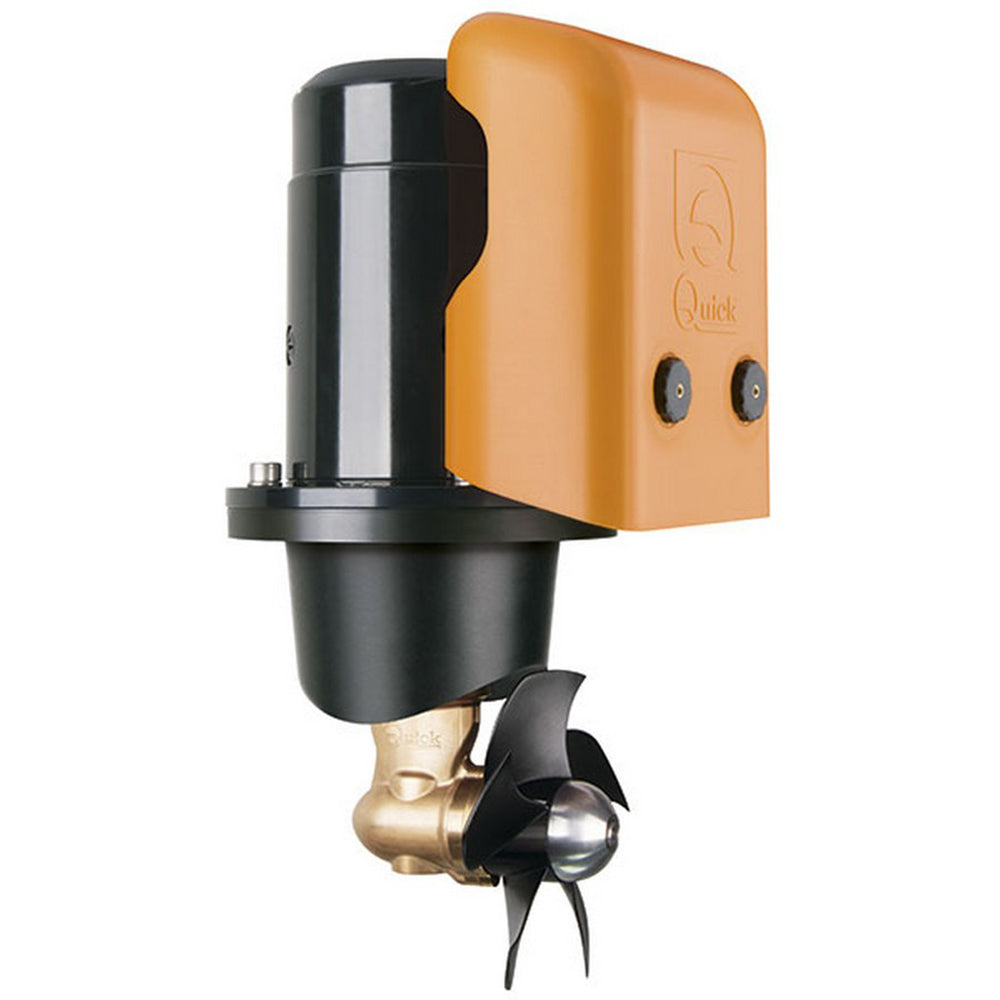

Bow Thruster BTQ 125-40 40KGF - 12V - D125 - 2.2kW
Better Performances, Lower Absorption
The 4-blade Propellers guarantee maximum thrust performance and reduction in current absorption. They are made of composite materials, resistant in every condition. The counter-rotating system offers better thrust performances. The two props have been designed to suit left side and right side, to guarantee the same upper performances in both directions.
Features:
- The Gearbox is created so that the behavior of the propeller is unaffected in either direction.
- The bronze propeller gearleg is provided with a hydrodynamic profile that minimizes turbulence.
- Maintenance is not required since the special highly resistant components guarantee a perfect lubrication seal for life.
- The anodic aluminum protection is easily replaceable. In case of total corrosion of the anode, the prop doesnt get lost because its fixed directly to the pod, independently from the anode.
- The elastic joint that optimizes the alignment between motor and gearbox is an exclusive Quick design. This acts as an even tension device, preserving the operating system from impulses from the bow thruster, with above-average results.
The Motors
New-generation materials have been chosen to constantly guarantee required output and maximum performance, given the severe conditions required by the application.
Top Safety
In case of relays melting, the TMS remote circuit breaker system switch-off the power to the motor from any place where a TDC panels or a TSC emergency mushroom panels are installed. Motor temperature sensor BTQ motors dont need the thermic sensor to be able to always provide the maximum power when needed. The overheating protection is controlled by the software inside the touch panel or the joystick panel.
Quick BTQ 125-40 Bow Thruster delivers dependable maneuvering assistance for boats requiring 40 kgf of thrust from a 12V, 2.2 kW bow thruster system. Designed for marine applications, this Quick bow thruster combines counter-rotating four-blade propellers, a hydrodynamic bronze gearleg, and a sealed gearbox to support efficient thrust and reliable operation in demanding conditions.
The four-blade composite propellers are designed to maximize thrust while reducing current absorption. The counter-rotating configuration helps provide consistent performance in both directions, with propellers specifically designed for left- and right-side installation. The gearbox is engineered so propeller behavior remains consistent regardless of operating direction, while the hydrodynamic gearleg profile helps minimize turbulence.
The BTQ 125-40 also incorporates Quick-specific components intended to simplify long-term ownership. Its highly resistant gearbox components provide lifetime lubrication sealing, eliminating the need for routine gearbox maintenance. A replaceable anodic aluminum protection helps protect the underwater assembly, and the propeller remains secured directly to the pod independently of the anode. The elastic joint helps optimize motor-to-gearbox alignment and absorbs operating impulses within the bow thruster system.
The motor uses new-generation materials selected for the severe conditions associated with marine bow thruster applications. For system protection, the TMS remote circuit breaker can switch off power to the motor from locations equipped with a TDC panel or TSC emergency mushroom panel. The BTQ motor temperature sensor is designed to allow maximum available power when needed, while overheating protection is controlled through compatible Quick touch or joystick panels.
Key Features:
-
40 kgf thrust: Provides bow-thrust assistance for boat maneuvering and close-quarters handling.
-
Four-blade composite propellers: Designed to support high thrust performance with reduced current absorption.
-
Counter-rotating propeller system: Delivers consistent thrust behavior in both directions.
-
Hydrodynamic bronze gearleg: Helps minimize turbulence around the underwater assembly.
-
Sealed, low-maintenance gearbox: Highly resistant components provide lifetime lubrication sealing.
-
Integrated system protection: Supports remote motor shutoff and software-controlled overheating protection when used with compatible Quick control panels.
Product Details:
-
Brand: Quick
-
Model: BTQ 125-40
-
Part number: FGBT12540120T00
-
Voltage: 12V
-
Power: 2.2 kW
-
Thrust: 40 kgf
-
Tube diameter: D125
-
Propeller type: Four-blade, composite, counter-rotating
-
Gearleg material: Bronze
-
Anode: Replaceable anodic aluminum protection
Choose the Quick BTQ 125-40 for a purpose-built 12V bow thruster system engineered to support responsive marine maneuvering and practical long-term service.
