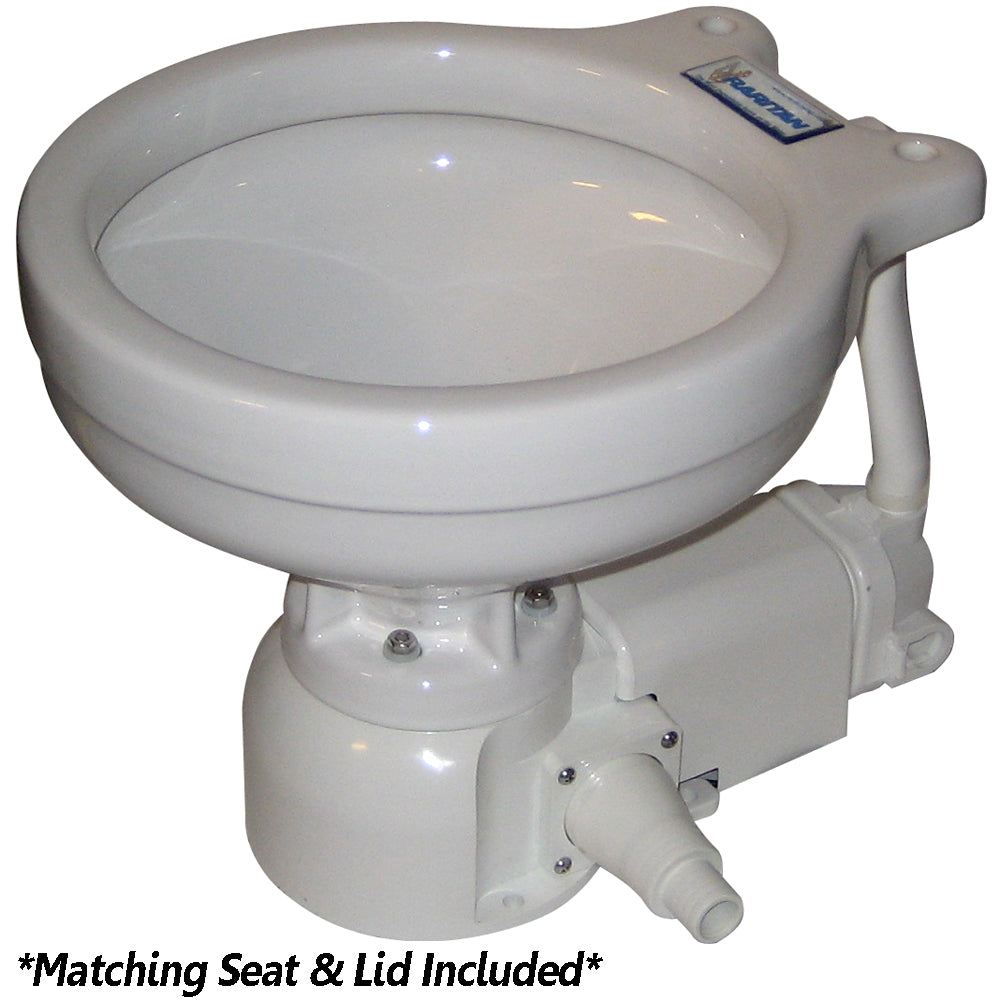

Raritan Sea Era QC Electric Marine Toilet with Integral Pump and 90-Degree Discharge

Sea Era QC Electric Toilet - Marine Size - Integral Pump - Straight 90 Discharge - 12v

The SeaEra was designed to fit in small spaces and allows users to rotate the base in 90 degree increments when the floor space is oddly shaped or was designed for a manual toilet with a pump and long base. The original SeaEra has an integral intake pump so all connections are at the toilet. The SeaEra with integral pump has some design features that separate it from the competition. Our design separates the intake water from the discharge water by the full length of the motor. This ensures no possibility of cross contamination. Similar competitive units have the intake and discharge only separated by a seal which means a seal failure allows waste water back into the bowl. Another feature is the full size joker valve which provides better performance and substantially reduces the probability of clogs. This original design is only available in the SeaEra which Is the macerating base with an integral intake pump. The SeaEra QC offers the option of a remote intake pump or pressurized fresh water solenoid.

Engineering has developed a new built-in discharge fitting that can accept either 1-1/2 (38mm) or 1 (25mm) discharge lines without the need for an adapter. The SeaEras discharge pump can handle a vented loop with a maximum height of five feet (1.52m) and utilizes a full-sized joker valve to help avoid clogging.

The inlet pump can lift water from four feet (1.22m) below the toilet and can be run dry without damaging the pump. To simplify a new installation or a retrofit, water can be routed from either side of the inlet pump using interchangeable 3/4 (19mm) hose barb fittings (two straight and one 90 Degrees), which are included.

Features:

• Integral pump
• Straight and 90 discharge
• Marine style bowl

Benefits:

• Uncompromising quality for the most demanding boaters
• Economical electric macerating marine toilet
• Simple and flexible installation for mounting above or below waterline
• Bowl can be rotated 90 Degrees for mounting into confined spaces and retrofit mounting
• Heavy-duty marine push-button switch included with all models
• Pressurized freshwater models include vacuum breaker
• Fits 1-1/2 (38mm) or 1 (25mm) discharge line with no adapters
• Easy to clean and maintain
• Can be run dry without damaging the pump
• Low power consumption and quieter operation for on-board pressurized freshwater models
• Can be used with on-board treatment systems (such as the Lectra/San) and/or holding tanks
• Each unit is assembled by hand, individually tested and backed by Raritans one-year Limited Warranty and legendary technical support team

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Raritan Sea Era QC Electric Marine Toilet offers a compact, reliable solution for demanding boating environments, combining innovative design with ease of installation. Engineered specifically for tight spaces, this marine toilet features a rotatable bowl that can be adjusted in 90-degree increments, making it ideal for retrofit projects or installations in confined areas. Its integral pump system simplifies connections by integrating the intake pump directly into the unit, ensuring a seamless setup with minimal components. This design effectively separates intake and discharge water along the full length of the motor, eliminating the risk of cross-contamination and enhancing hygiene and safety onboard.

The Sea Era QC stands out with a built-in discharge fitting capable of handling 1-1/2 inch (38mm) or 1 inch (25mm) discharge lines without adapters, streamlining installation and reducing costs. The discharge pump is capable of managing vented loops up to five feet (1.52 meters) high, providing flexibility in marine plumbing configurations. Designed with a full-sized joker valve, the unit offers improved performance with a lower likelihood of clogging, reducing maintenance efforts and downtime. The inlet pump boasts a lift capability of four feet (1.22 meters) and can operate dry without damage, ensuring durability and reliability even in challenging conditions.

Installation is made versatile with interchangeable 3/4 inch (19mm) hose barb fittings, allowing water to be routed from either side of the inlet pump—ideal for both new installations and retrofits. The unit supports pressurized freshwater systems and includes a vacuum breaker on models equipped with this feature, offering a comprehensive solution for modern marine plumbing needs. Heavy-duty marine push-button switches are included for easy operation, while the unit’s quiet operation and low power consumption make it suitable for continuous use on boats. The Sea Era QC is compatible with onboard treatment systems such as Lectra/San and can be connected to holding tanks, providing flexible waste management options.

Each Raritan Sea Era QC unit is meticulously assembled by hand, individually tested, and backed by a one-year limited warranty. Its robust construction and thoughtful features make it the ideal choice for boaters seeking a durable, efficient, and space-saving marine toilet that meets stringent safety and hygiene standards. As a Prop 65-compliant product, it is designed with safety and environmental considerations in mind, ensuring peace of mind for all users.

Features:

• Integral pump for simplified plumbing and installation

• Rotatable bowl that can be adjusted in 90-degree increments for versatile mounting

• Discharge fitting compatible with 1-1/2 inch (38mm) or 1 inch (25mm) lines without adapters

• Capable of handling vented loops up to five feet (1.52 meters) high

• Full-sized joker valve to reduce clogging and improve performance

• Lift capability of four feet (1.22 meters), operable dry without damage

• Interchangeable hose barb fittings for flexible water routing

• Designed for easy cleaning and maintenance

• Compatible with pressurized freshwater systems, including vacuum breaker options

• Quiet operation with low power consumption for onboard efficiency

• Suitable for use with onboard waste treatment systems and holding tanks

• Hand-assembled, individually tested, and backed by a one-year limited warranty
