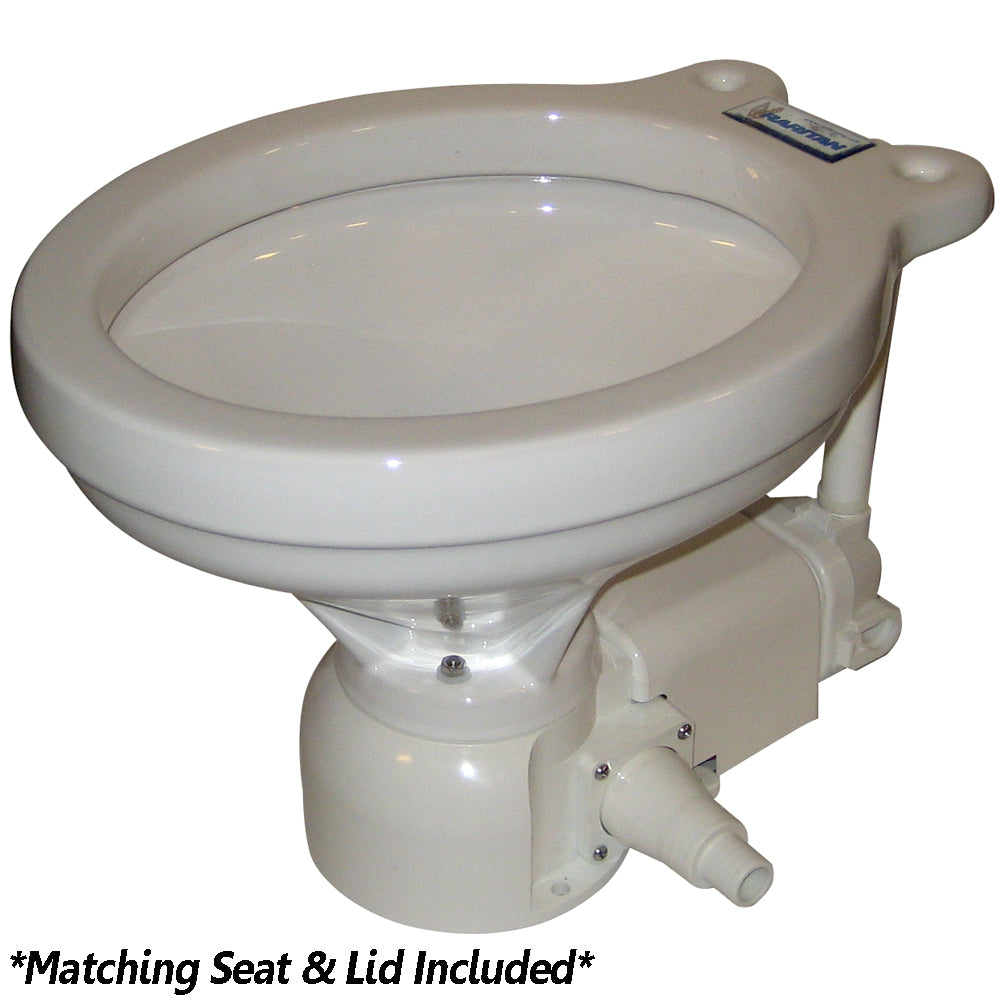

Raritan Sea Era QC Electric Marine Toilet with Integral Pump and 90-Degree Discharge - Household Style, 12V

Sea Era QC Electric Toilet - Household Style - Integral Pump - Straight 90 Discharge - 12v

The SeaEra was designed to fit in small spaces and allows users to rotate the base in 90 degree increments when the floor space is oddly shaped or was designed for a manual toilet with a pump and long base. The original SeaEra has an integral intake pump so all connections are at the toilet. The SeaEra with integral pump has some design features that separate it from the competition. Our design separates the intake water from the discharge water by the full length of the motor. This ensures no possibility of cross contamination. Similar competitive units have the intake and discharge only separated by a seal which means a seal failure allows waste water back into the bowl. Another feature is the full size joker valve which provides better performance and substantially reduces the probability of clogs. This original design is only available in the SeaEra which Is the macerating base with an integral intake pump. The SeaEra QC offers the option of a remote intake pump or pressurized fresh water solenoid.

Engineering has developed a new built-in discharge fitting that can accept either 1-1/2 (38mm) or 1 (25mm) discharge lines without the need for an adapter. The SeaEras discharge pump can handle a vented loop with a maximum height of five feet (1.52m) and utilizes a full-sized joker valve to help avoid clogging.

The inlet pump can lift water from four feet (1.22m) below the toilet and can be run dry without damaging the pump. To simplify a new installation or a retrofit, water can be routed from either side of the inlet pump using interchangeable 3/4 (19mm) hose barb fittings (two straight and one 90 Degrees), which are included.

Features:

• Integral pump
• Straight and 90 discharge
• Household style bowl

Benefits

• Uncompromising quality for the most demanding boaters
• Economical electric macerating marine toilet
• Simple and flexible installation for mounting above or below waterline
• Bowl can be rotated 90 Degrees for mounting into confined spaces and retrofit mounting
• Heavy-duty marine push-button switch included with all models
• Pressurized freshwater models include vacuum breaker
• Fits 1-1/2 (38mm) or 1 (25mm) discharge line with no adapters
• Easy to clean and maintain
• Can be run dry without damaging the pump
• Low power consumption and quieter operation for on-board pressurized freshwater models
• Can be used with on-board treatment systems (such as the Lectra/San) and/or holding tanks
• Each unit is assembled by hand, individually tested and backed by Raritans one-year Limited Warranty and legendary technical support team

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Raritan Sea Era QC electric toilet is designed for demanding marine environments where space efficiency and reliable performance are essential. Featuring an integral pump, this household-style toilet offers a straightforward installation with the flexibility to mount above or below waterline, making it an ideal choice for boat owners seeking a versatile and durable solution. Its unique design separates intake and discharge water along the full length of the motor, preventing cross-contamination and ensuring sanitary operation. The full-sized joker valve enhances flushing performance and significantly reduces clogging risks, setting it apart from competing units that use less reliable sealing mechanisms. The built-in discharge fitting accommodates both 1-1/2 inch (38mm) and 1 inch (25mm) discharge lines without adapters, simplifying installation and retrofit projects. The discharge pump can handle a vented loop with a maximum height of five feet (1.52 meters), providing reliable waste removal even in complex plumbing arrangements. The inlet pump lifts water from as low as four feet (1.22 meters) below the toilet and can operate dry without damage, increasing durability and maintenance ease. Interchangeable hose fittings included with the unit allow flexible routing of water from either side, accommodating various installation scenarios. This model is engineered for efficiency, with low power consumption and quieter operation, especially in pressurized freshwater configurations that include a vacuum breaker for added safety. The toilet's design allows for 90-degree rotation of the bowl, enabling installation in confined spaces or retrofit situations, making it highly adaptable to different vessel layouts. Each Raritan Sea Era QC is individually tested, assembled by hand, and backed by a one-year limited warranty, supported by Raritan’s renowned technical team. Whether used with onboard treatment systems or holding tanks, this electric toilet offers a reliable, hygienic, and cost-effective solution for marine sanitation needs. Its ease of cleaning and maintenance, combined with its robust construction, ensures long-term performance in the most demanding marine conditions. Note: This product contains chemicals that may pose health risks; refer to Prop 65 warnings for more details.

Features:

• Integral pump for simplified installation and operation

• Discharge options include straight and 90-degree fittings for flexible mounting

• Household style bowl designed for comfort and ease of use

• Designed for above or below waterline mounting in marine environments

• Includes heavy-duty marine push-button switch for reliable control

• Pressurized freshwater models feature vacuum breaker for safety

• Compatible with 1-1/2 inch (38mm) or 1 inch (25mm) discharge lines without adapters

• Operates efficiently with low power consumption and quieter operation

• Can be run dry without damaging the pump, increasing longevity

• Designed to work with onboard treatment systems and holding tanks

• Easy to clean and maintain for long-term performance

• Individually assembled, tested, and backed by Raritan’s one-year warranty
