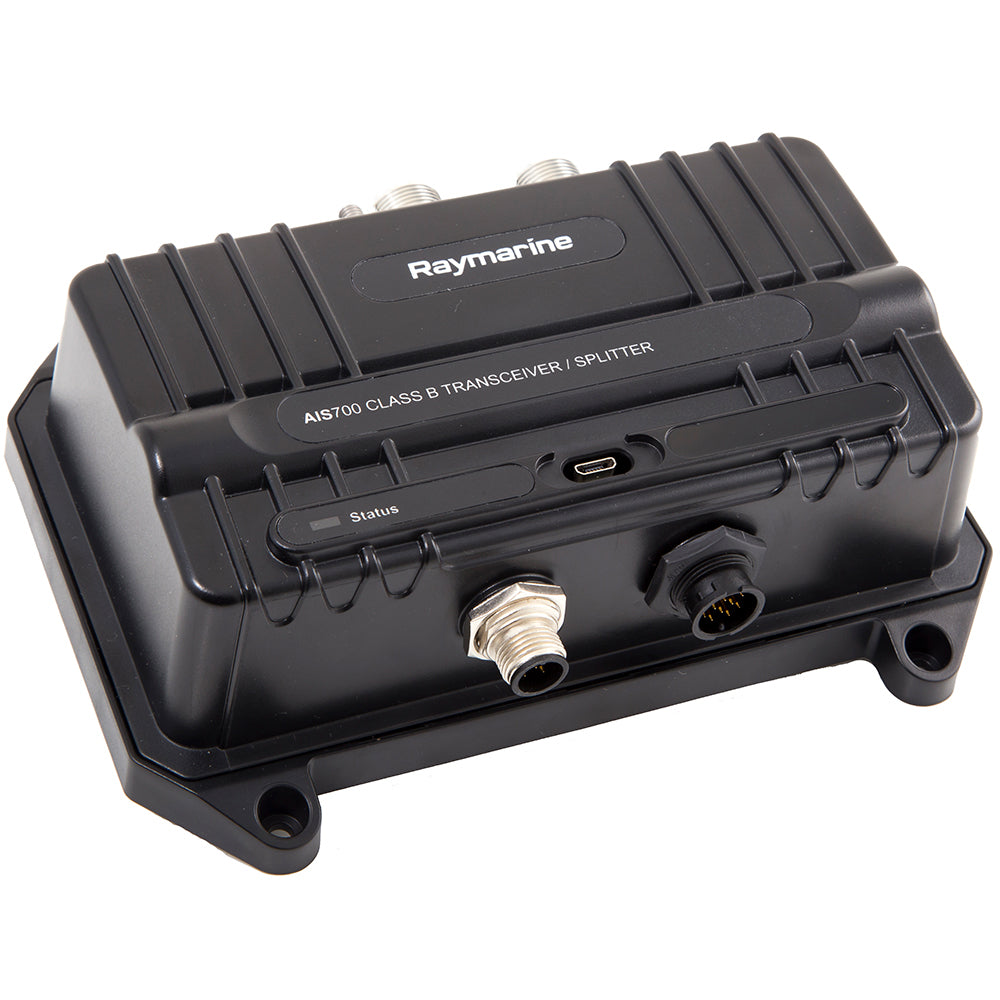

Raymarine AIS700 Class B AIS Transceiver with Built-In VHF Antenna Splitter for Enhanced Marine Safety

AIS700 Class B AIS Transceiver with Antenna Splitter

**As the FCC requires all units sold in the US to be programmed by a qualified technician. Please submit the form below for programming at time of purchase. A copy of the MMSI registration or FCC Ship Station License is required along with the vessel master or owner's signature on the completed programming form.**

Click here to download form.

The AIS700 from Raymarine is a Class B Automatic Identification System (AIS) transceiver designed for use with Raymarine multifunction navigation display systems. AIS is an international marine navigation safety system that allows participating vessels to silently exchange key navigation information including vessel name, identification, course, speed and more. AIS contacts can be displayed on Raymarine multifunction displays, chartplotters, radar displays and select instruments. As a Class B AIS transceiver, the AIS700 not only receives broadcasts from other vessels, it also transmits your own boats information too helping you to be seen on other vessels systems.

The AIS700 is engineered using the very latest SO-TDMA (Self Organized Time Division Multiple Access) networking technology which allows it to perform faster and at longer ranges than d speed over previous generation AIS products. For ease-of-installation, the AIS700 has a built in VHF-band antenna splitter which allows it to share a single antenna with your current VHF radio. AIS700 also has its own internal, dedicated 72-channel GPS receiver with external antenna as required by international standards.

AIS700 also supports both hardware and software-enabled Silent Mode. This allows you to temporarily restrict broadcasting your vessels own data, while continuing to receive updates from surrounding traffic. Silent Mode can be particularly useful when transiting waters where extra security is a concern, or even in competitive tournament scenarios when you might want to prevent other from finding out the location of the hot bite. Normal AIS safety broadcasts can be easily reinstated with a few simple touches of the AIS controls in your Raymarine MFD, or with the flip of a switch for hardware-silenced systems.

The AIS700 is super-compact for easy mounting inside your helm, in a service locker, or other out-of-the-way location. It can connect to your other onboard electronics using the latest NMEA2000 networking. AIS700 also has a built-in NMEA0183 multiplexer to assist in connecting it to older MFDs and VHF radio systems. AIS700 also has a built-in USB 2.0 connection that can be used to tie the transceiver into a computer or laptop running AIS compatible navigation software. AIS700 has a Secure Digital (SD) memory slot that can be fitted with an owner-suppled flash memory card for continuous recording of the AIS data stream.

Features:

• Full transmit and receive AIS for enhanced situational awareness and safety
• Latest SO-TDMA networking for longer range and faster performance
• Built-in antenna splitter simplifies installation with existing VHF radio antenna
• NMEA2000, NMEA0183, PC and SeaTalk^ng Compatible
• Software or hardware switchable Silent Mode for enhanced security when needed

In the Box

• AIS700 Class B AIS Transceiver with built-in VHF antenna splitter
• GNSS (GPS) Antenna, gasket and pole mount kit
• Power and data cable (2 meters)
• VHF Radio antenna interconnect cable (1 meter)
• DeviceNet to SeaTalk NG Cable (1 meter)
• Mounting Hardware
• Pro-AIS Programming Software CD-ROM
• Documentation kit

The Raymarine AIS700 Class B AIS Transceiver is an essential tool for modern marine navigation, providing reliable and comprehensive vessel tracking capabilities. Designed to seamlessly integrate with Raymarine multifunction display systems, the AIS700 enables vessels to broadcast and receive critical navigation information such as vessel name, identification, course, and speed, promoting safer navigation and situational awareness. With advanced SO-TDMA networking technology, this transceiver offers longer range and faster data exchanges compared to previous AIS models, ensuring you stay connected even in challenging conditions. Its compact design allows for flexible installation options, whether inside the helm, in a service locker, or another out-of-the-way location, making it suitable for a variety of vessel sizes and layouts. The built-in VHF antenna splitter simplifies setup by sharing an existing VHF antenna, reducing installation complexity and costs. The AIS700 is equipped with a dedicated 72-channel GPS receiver with an external antenna, guaranteeing accurate positioning in accordance with international standards. It supports both hardware and software Silent Mode, giving users the ability to temporarily restrict their vessel's broadcasted data for increased security during transit through sensitive waters or competitive scenarios. Connecting to your onboard electronics is straightforward through NMEA2000, NMEA0183, PC, and SeaTalk^ng compatibility, broadening integration options with existing navigation systems. Additionally, the built-in USB 2.0 port allows connection to a computer or laptop running AIS-compatible navigation software, while the SD memory slot enables continuous AIS data recording with an owner-supplied memory card. The Raymarine AIS700 comes with all necessary mounting hardware, cables, and a comprehensive documentation kit, ensuring an easy installation process. Please note, FCC regulations require all units sold in the US to be programmed by a qualified technician, with proof of vessel registration or FCC license required at the time of purchase. This product is ideal for boat owners seeking a reliable, high-performance AIS transceiver that enhances safety and situational awareness on the water, with added security features for sensitive operations.

Features:

• Full transmit and receive AIS for enhanced situational awareness and safety

• Latest SO-TDMA networking for longer range and faster performance

• Built-in antenna splitter simplifies installation with existing VHF radio antenna

• NMEA2000, NMEA0183, PC, and SeaTalk^ng compatibility for versatile integration

• Software or hardware switchable Silent Mode for increased security during transit
