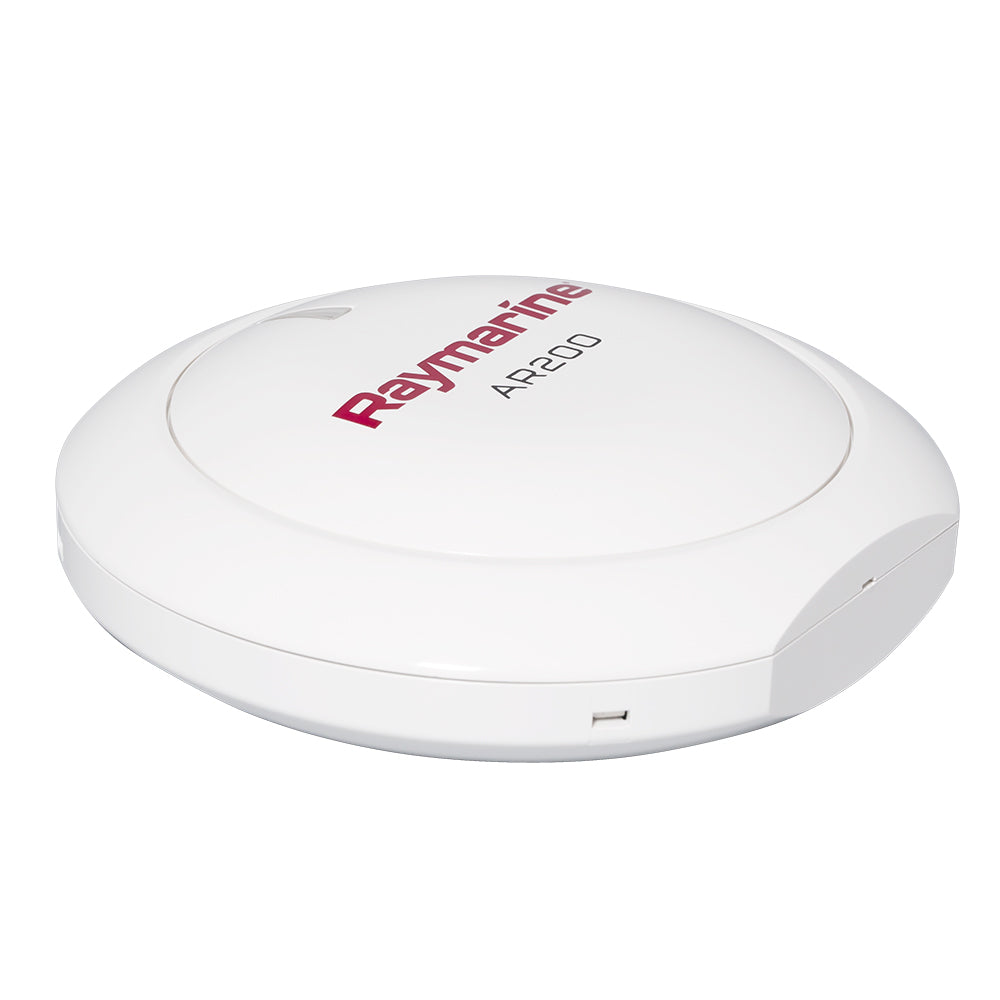

Raymarine AR200 IP Camera Stabilization Module – Marine Augmented Reality Sensor with GPS and AHRS

AR200 IP Camera Stabilization Module

The AR200 is an Augmented Reality Sensor consisting of a Global Navigation Satellite Systems (GNSS) Receiver and an Attitude and Heading Reference System (AHRS) sensor. The AR200 provides position, heading, pitch and roll data to compatible Axiom MFDs. When combined with a compatible IP camera the AR200 enables use of the ClearCruise Augmented Reality features available on your Axiom MFD.

Features:

• 9-axis AHRS (attitude and heading reference system) sensor
• 28-channel GPS receiver
• Fast 10Hz position updates
• Satellite differential GPS-compatible. Space-Based Augmentation System (SBAS) enabled with WASS, EGNOS, MSAS and GAGAN support
• When combined with a compatible IP camera the AR200 enables the use of ClearCruise Augmented reality features available on Axiom multifunction displays
• NMEA 2000 compliant
• IPX6 / IPX7 waterproof rating

In the Box:

• Mounting trim (top)
• Small sealing ring
• AR200
• x3 large bulkhead bracket fixings (pan head pozi DIN7981-ST 3.9x22 C Z A4 Stainless steel)
• Mounting tray (bottom)
• x4 small surface mount fixings (pan head pozi DIN7981-ST 2.9x13 C Z A4 Stainless steel)
• Bulkhead (wall) bracket
• Large sealing ring
• Documentation
• 6m (19.7ft) SeaTalkNG white cable

Enhance your marine navigation system with the Raymarine AR200 IP Camera Stabilization Module, a state-of-the-art augmented reality sensor designed to provide precise positioning and orientation data. Featuring a 9-axis AHRS (attitude and heading reference system) sensor and a 28-channel GPS receiver, the AR200 delivers fast 10Hz updates on position, heading, pitch, and roll, ensuring accurate real-time data for your compatible Axiom MFDs. This robust module is satellite differential GPS-compatible, supporting SBAS systems like WASS, EGNOS, MSAS, and GAGAN, making it ideal for precision navigation in various environments. When paired with a compatible IP camera, the AR200 unlocks the advanced ClearCruise augmented reality features on your Axiom multifunction displays, providing intuitive, overlayed navigation information for safer and more efficient boating experiences. Built with durability in mind, the AR200 boasts an IPX6/IPX7 waterproof rating, making it suitable for marine conditions. The package includes all necessary mounting hardware, sealing rings, and a 19.7-foot SeaTalkNG cable, facilitating straightforward installation and integration into your existing marine electronics system. This module is NMEA 2000 compliant, ensuring seamless connectivity across diverse marine network systems. Whether you're a professional mariner or an avid boater, the Raymarine AR200 enhances situational awareness and navigation precision, making it an invaluable addition to your marine electronics arsenal.

Features:

• 9-axis AHRS (attitude and heading reference system) sensor for accurate orientation data

• 28-channel GPS receiver for precise positioning

• Fast 10Hz position updates for real-time navigation

• Satellite differential GPS-compatible with SBAS support including WASS, EGNOS, MSAS, and GAGAN

• Enables ClearCruise augmented reality features when paired with compatible IP cameras

• NMEA 2000 compliant for easy integration with marine network systems

• IPX6/IPX7 waterproof rating for durable marine use
