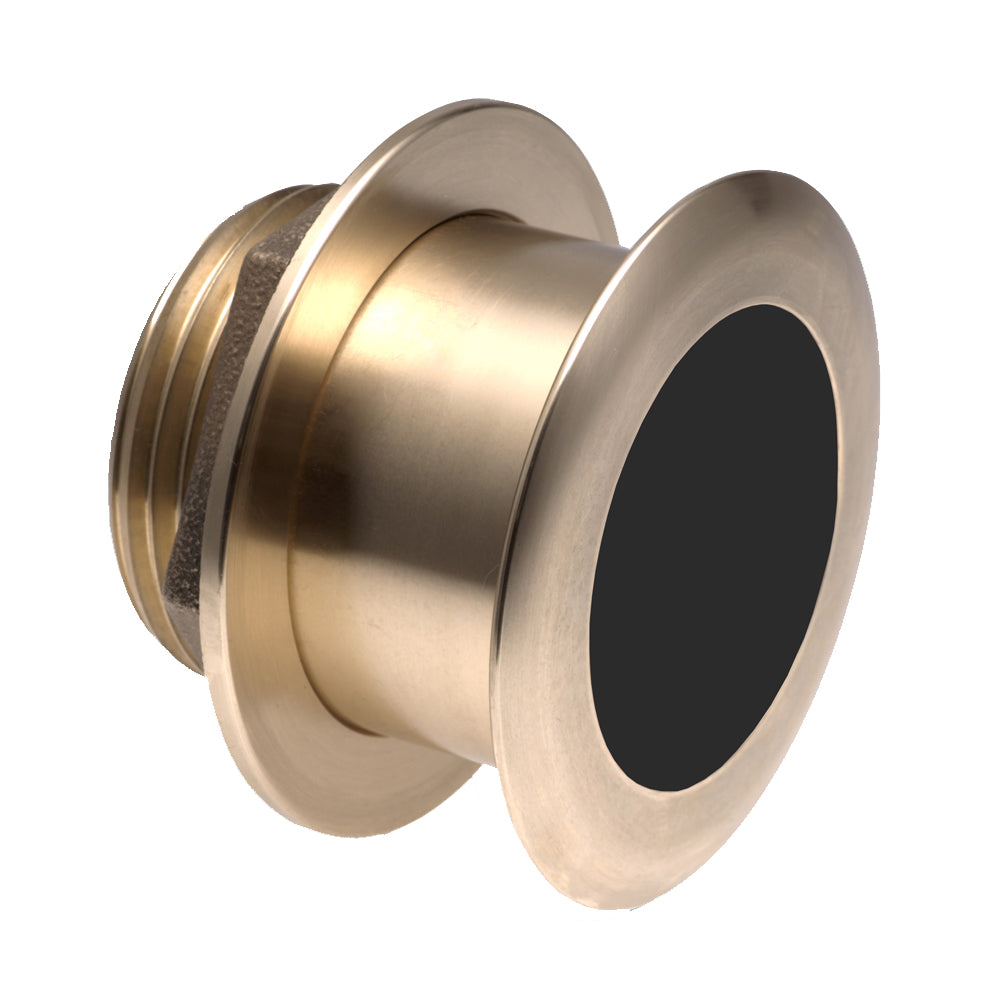

Raymarine B175H-W 20 Bronze Thru-Hull Tilted Element Transducer – 1kW for Deep Water Marine Applications

B175H-W 1KW Bronze Thru Hull 20 Tilted Element

Installation: Thru Hull

Material: Urethane

Power (RMS): 1kW

Max Depth(ft): 800

Frequency (KHz): 150-250

Records: Depth and Temperature

Approved Hull Material: Fiberglass / Wood

Cable Length (ft/M): 6ft/2m

Supported deadrise: 16-24 Deadrise

ADDITIONAL NOTES: All wide beam products come with a 2M pigtail off the transducer. Requires a Transducer Extension cable for a Complete Transducer Installation. 10m Extension Cable part number A80327 and A80328 Single B75/B175 operation cable.

The Raymarine B175H-W 20 Bronze Thru-Hull Tilted Element Transducer is engineered for reliable, high-performance underwater readings in demanding marine environments. Designed with a durable urethane construction, this transducer offers excellent resistance against corrosion and marine wear, ensuring longevity and consistent performance over time. Its 1kW RMS power output provides precise depth and temperature data, making it ideal for deep-water vessels operating at depths up to 800 feet. The tilted element design enhances sonar imaging, especially in boats with a deadrise angle between 16 and 24 degrees, offering clear, accurate readings regardless of hull type.

This transducer supports a frequency range of 150-250 KHz, enabling versatile operation across various sonar functions. It is compatible with fiberglass and wooden hulls, and its installation is straightforward via a thru-hull setup, providing a secure and streamlined fit. The transducer comes with a 6-foot cable, with an additional 2-meter pigtail, and requires a transducer extension cable for complete installation. For extended runs, compatible extension cables (part numbers A80327 and A80328) are recommended, ensuring flexibility during setup. Certified for demanding marine environments, the Raymarine B175H-W is a trusted choice for anglers, boaters, and marine professionals seeking accurate, durable sonar performance.

Note: This product does not include a transducer extension cable but supports various connection setups for optimal integration. Prop 65 warning applies as per manufacturer guidelines, emphasizing safe and compliant use in your marine vessel.

Features:

• Thru-hull installation for secure and streamlined mounting

• Built with durable urethane material for corrosion resistance

• Supports 1kW RMS power for reliable depth and temperature measurements

• Tilted element design enhances sonar imaging accuracy

• Suitable for depths up to 800 feet in deep-water applications

• Compatible with fiberglass and wood hulls, supporting deadrise angles of 16-24 degrees

• Operating frequency range of 150-250 KHz for versatile sonar functions

• Includes 6-foot cable with a 2-meter pigtail, compatible with extension cables for extended setup
