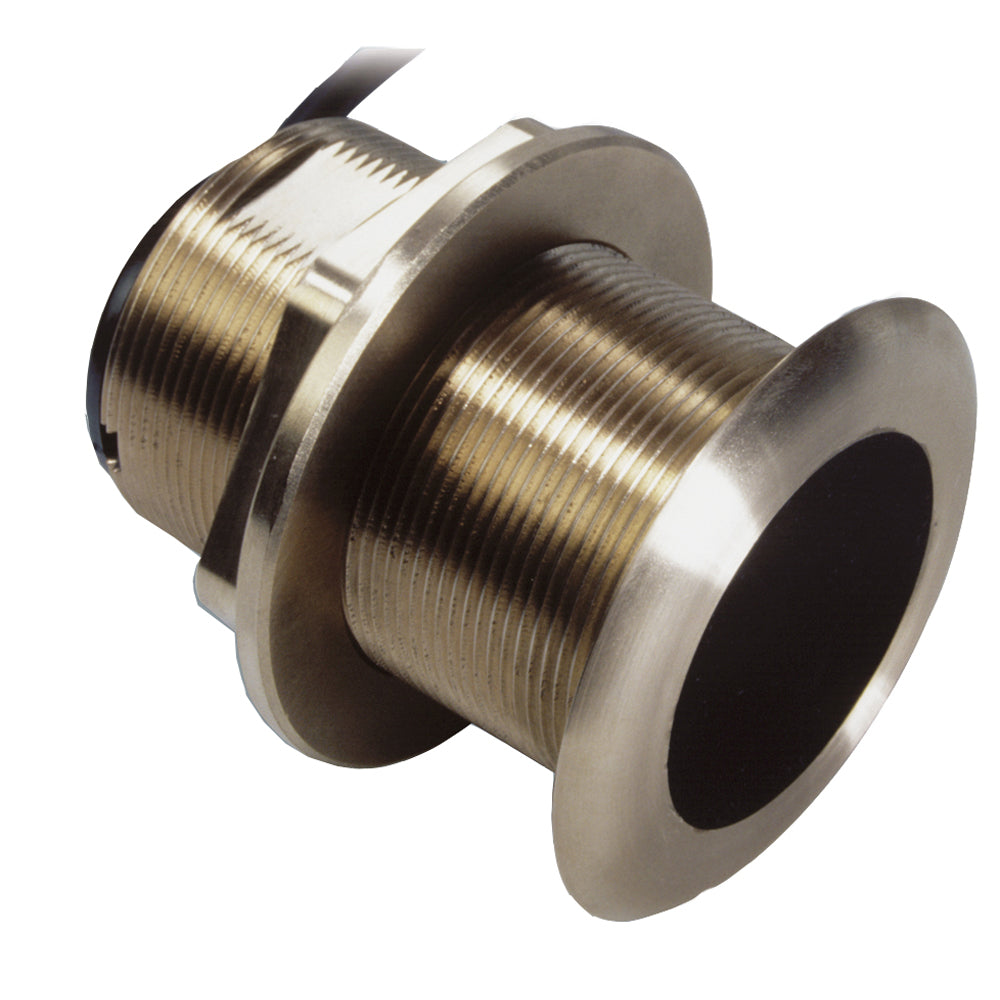

B60 Tilted Element 12
12 titled version is designed for 8 - 15 deadrise angles
For use with Raymarine DSM250/DSM300/DSM300G/DSM30/CP300
The bronze B60-12 provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16) extending outside of the hull.
Features:
Depth/Temp
50/200 kHz
600w RMS
Mid-performance
Bronze
PRODUCT DESCRIPTION:
Raymarine B60-12 12° Tilted Element Transducer is designed for boat owners and marine electronics installers who need accurate depth and temperature data across hulls with an 8° to 15° deadrise angle. Built for use with Raymarine DSM250, DSM30, DSM300, DSM300G, and CP300 systems, this bronze transducer delivers a vertical beam without requiring an external fairing.
The B60-12 uses a ceramic element tilted inside the housing to provide built-in deadrise compensation. This design creates a vertical beam for excellent echo returns and more accurate depth readings. Its nearly flush housing helps minimize drag, with only 3/16 inch extending outside the hull. With 50/200 kHz operation and 600 watts RMS power, the B60-12 is a mid-performance depth and temperature transducer for marine applications that require dependable sonar readings in a streamlined through-hull installation.
KEY FEATURES:
Feature: Tilted 12° ceramic element provides built-in compensation for hulls with an 8° to 15° deadrise angle
Feature: Vertical beam design supports excellent echo returns and more accurate depth readings
Feature: Depth and temperature sensing for expanded marine electronics functionality
Feature: 50/200 kHz operation with 600 watts RMS power
Feature: Bronze construction with a nearly flush housing to help minimize drag
Feature: Compatible with Raymarine DSM250, DSM30, DSM300, DSM300G, and CP300 systems
PRODUCT DETAILS:
Brand: Raymarine
Product: B60-12 tilted element transducer
Part Number: E66086
Element angle: 12°
Recommended deadrise angle: 8° to 15°
Functions: Depth and temperature
Frequency: 50/200 kHz
Power: 600 watts RMS
Performance class: Mid-performance
Material: Bronze
Compatible systems: Raymarine DSM250, DSM30, DSM300, DSM300G, and CP300
Housing profile: Nearly flush, with 3/16 inch extending outside the hull
Choose the Raymarine B60-12 E66086 for a streamlined through-hull transducer installation with built-in deadrise compensation and reliable depth and temperature sensing for compatible Raymarine sonar systems.
Product summary: Raymarine B60-12 bronze transducer with 12° tilted element, depth and temperature sensing, 50/200 kHz operation, and DSM compatibility.
