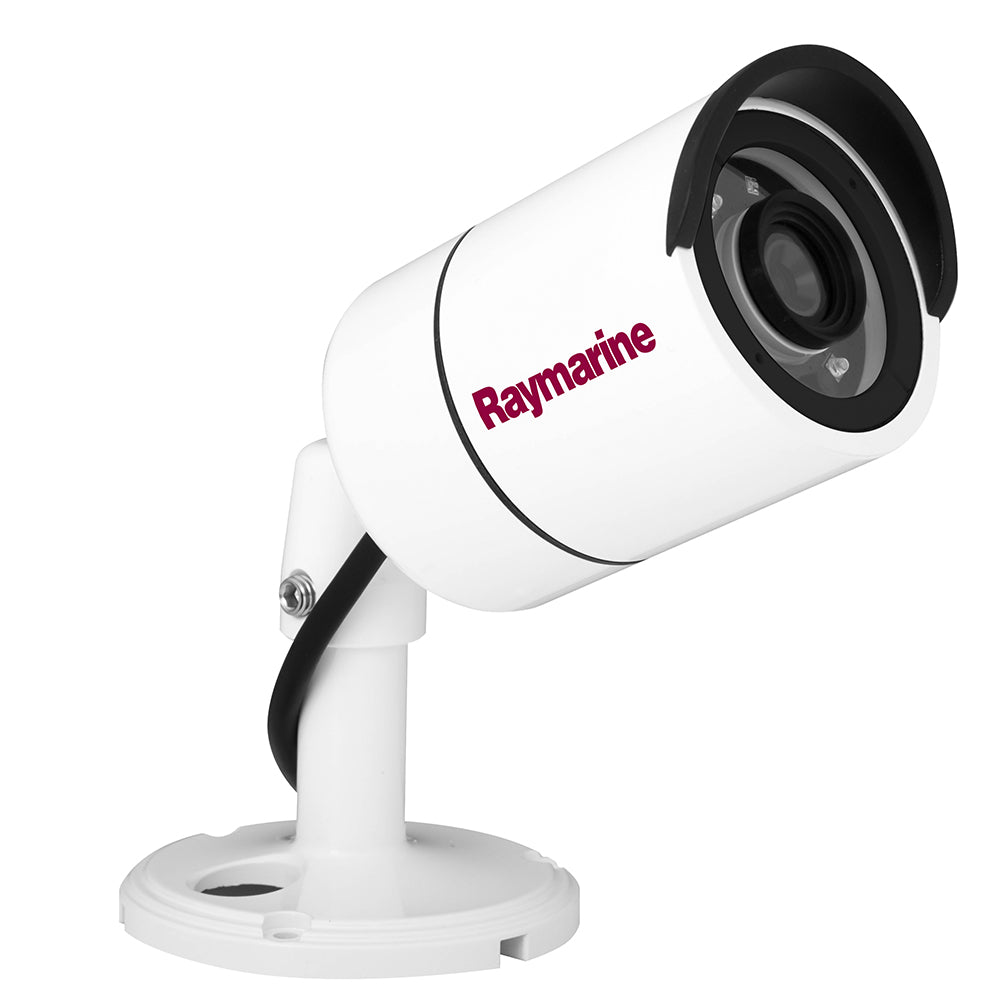

Raymarine CAM210 Day & Night IP Marine Bullet Camera - High Definition Waterproof Surveillance for Boats

CAM210 Day Night IP Marine Bullet Camera

Ruggedised, High Definition, Day and Night network bullet video camera suitable for all above deck applications. Integrated sun-cover for maximum visibility and small frame size for easy installation anywhere on the boat.

• Plug and play integration with Raymarine MFDs running Lighthouse II
• Power over Ethernet (PoE) or direct 12V DC power supply

• High bright IR LEDs for operation in total darkness
• Digital Defog processing improves the captured image in poor weather conditions (such as smog, fog or smoke)

• Intelligent IR technology for clear video images at night in all conditions

Specifications:

• CPU: 32-bit ARM9 RISC CPU up to 432MHz
• Flash / SDRAM: 128MB / 128MB

• Image Sensor: 2.0 Megapixel 1/2.8 SONY progressive scan CMOS(Exmor)
• Total Pixels: 1952(H) x 1116(V) 2.18 Megapixel

• Effective Pixels: 1944(H) x 1104(V) 2.15 Megapixel
• S/N Ratio: More than 50dB

• Minimum Illumination: 0Lux (IR On)
• IR Distance: 20M

• Day Night: ICR
• Lens: 6.0mm Megapixel Board Lens

• Field of View:
  Diagonal = 63.6 +/- 3
  Horizontal = 53.3 +/- 3
  Vertical = 33.1 +/- 3
• Video Compression: H.264 High Profile@4.0, MJPEG Image quality: 3 Steps

• Resolution: Up to 1920 x 1080 (Full HD)
• Frame Rate: H.264 Up to 30fps with 1920x1080 | MJPEG Up to 30fps with VGA resolution

• Video Streaming:
  Support multi stream with H.264, MJPEG
  Adjustable frame rate
  CVBR/CBR in H.264
• Pan / Tilt / Zoom: Digital Pan, Tilt and Zoom
• Image Setting:
  Day Night
  Auto White Balance
  Auto Exposure
  Privacy Mask
  Effects - Color, Sharpness, Mirror / V-Flip
• Security: Password protection, User access log, HTTPS encryption
• Supported Protocol: HTTP, HTTPS, FTP, SMTP, UPnP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP
• Intelligent Video: Motion detection up to 1920x1080 with 4x3 blocks

• Power Source: DC12V/1.5A, PoE(Power over Ethernet): 802.3af
• Power Consumption: Max. 3.3W, Max. 5.3W with IR

• Net Weight: 900g
• LEDs: Power, Network Connection

• Dimensions: 83.8mm(W) x 155mm(H) x 178.1mm(D) including Bracket
• General Operation Temperature: 040 Celsius(32F104F)

• Storage Temperature: -1050 Celsius(14F122F)

Enhance your vessel’s security with the Raymarine CAM210 Day & Night IP Marine Bullet Camera. Designed for above deck applications, this ruggedized, high-definition surveillance camera offers clear, reliable video in all weather conditions. Its compact design and integrated sun cover make installation on any boat straightforward, providing maximum visibility without compromising space or aesthetics. The CAM210 supports plug-and-play integration with Raymarine MFDs running Lighthouse II, simplifying setup for both seasoned and new users. It can be powered via Power over Ethernet (PoE) or a direct 12V DC power supply, offering flexibility in installation options. Equipped with high-brightness IR LEDs and intelligent IR technology, the camera delivers sharp, detailed images in total darkness up to 20 meters, ensuring continuous surveillance during nighttime or low-light conditions. The digital defog feature enhances image clarity during foggy or smoky weather, making it ideal for maritime environments where visibility can be challenging. Its 2.0 Megapixel Sony CMOS sensor captures full HD 1080p video at up to 30 frames per second, providing crisp, detailed footage for security and monitoring. The camera’s wide field of view and digital pan, tilt, and zoom capabilities allow operators to focus on specific areas effortlessly. Security features such as password protection, user access logs, and HTTPS encryption safeguard your surveillance data. Designed to withstand harsh marine environments, the CAM210 operates efficiently within a temperature range of 32°F to 104°F, making it suitable for a variety of climates. The camera also supports multiple video streaming protocols and adjustable settings for optimal image quality, color balance, and privacy masking. Its compact size and durable construction make it an excellent choice for boat owners seeking reliable, high-quality surveillance to ensure safety and peace of mind on the water. Whether for security, monitoring crew activities, or overseeing docking areas, the Raymarine CAM210 offers advanced features in a user-friendly package, backed by Raymarine’s trusted reputation in marine electronics. Please note, as per Prop 65, this product complies with safety standards for chemical exposure and is designed for marine use, ensuring durability and safety in demanding environments.

Features:

• Plug and play integration with Raymarine MFDs running Lighthouse II

• Supports Power over Ethernet (PoE) or direct 12V DC power supply

• High bright IR LEDs for operation in total darkness up to 20 meters

• Digital defog processing enhances image visibility in poor weather conditions

• Intelligent IR technology ensures clear night video in all weather conditions

• 2.0 Megapixel Sony CMOS sensor captures Full HD 1080p video at 30fps

• Wide field of view with digital pan, tilt, and zoom capabilities

• Secure access with password protection, user logs, and HTTPS encryption

• Supports multiple streaming protocols including H.264 and MJPEG

• Ruggedized design with compact frame for easy installation on boats

• Operating temperature range suitable for marine environments
