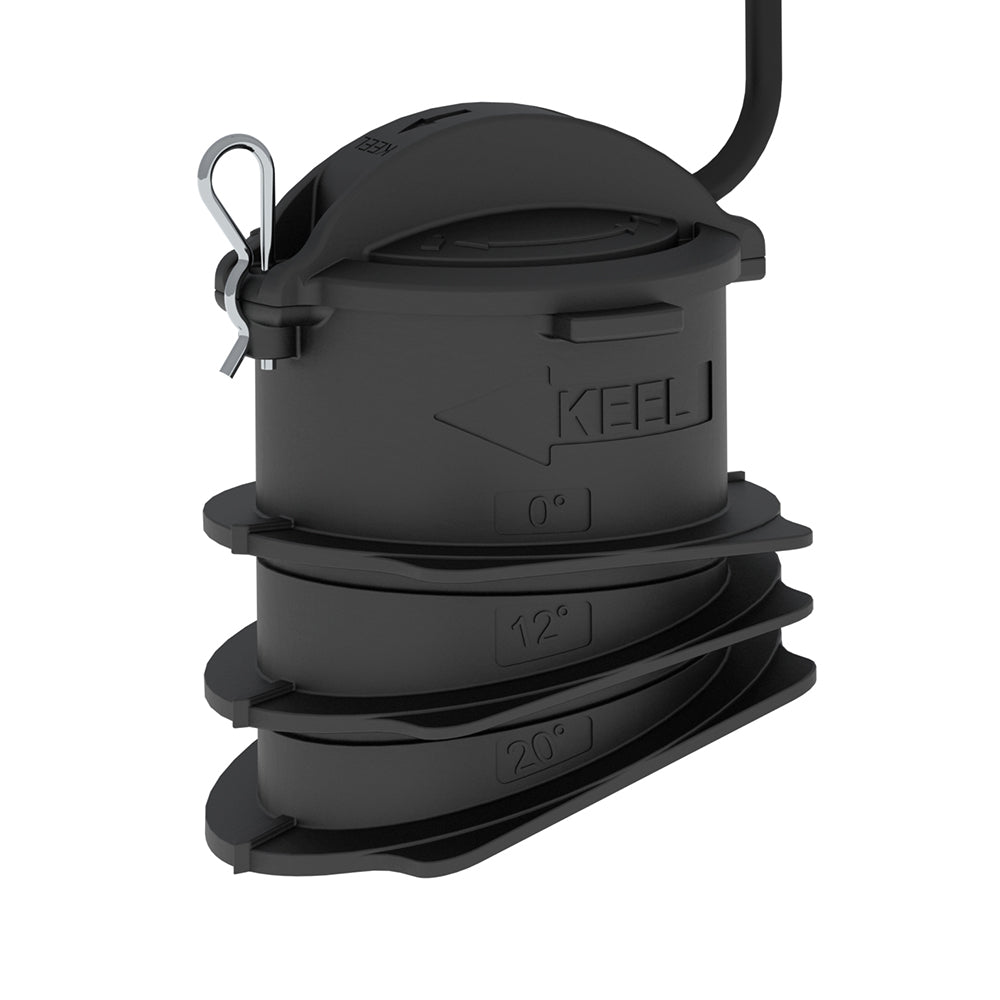

Raymarine CPT-S In-Hull CHIRP Transducer A80691 for Element S Series

CPT-S In-Hull CHIRP Transducer

The CPT-S In-hull transducer provides a simple-to-install depth only transducer solution for non-cored fiberglass hulls. Ideal for sailing, cruising, and small powerboat applications, the CPTS-S In-hull transducer supports CHIRP sonar operation centered on 200kHz.

The CPT-S in-hull directly connects to Element S series units.

Will connect to Axiom RV/Axiom Pro RVX and Element HV using the A80490 (Axiom) or A80559 (Element HV) adapters. An innovative transducer tube housing design allows the CPT-S In-Hull to mount in hulls ranging from 0 to 25 degrees deadrise.

Raymarine CPT-S In-Hull CHIRP Transducer A80691 provides a simple-to-install, depth-only sonar solution for boats with non-cored fiberglass hulls. Designed for sailing, cruising, and small powerboat applications, this in-hull transducer supports CHIRP sonar operation centered on 200 kHz to deliver reliable depth information through the hull.

The CPT-S connects directly to Raymarine Element S series units, making it a practical choice for boaters seeking a compatible in-hull transducer without external mounting. It can also connect to Axiom RV, Axiom Pro RVX, and Element HV displays when used with the appropriate adapter: A80490 for Axiom systems or A80559 for Element HV systems.

Its innovative transducer tube housing design supports installation in hulls with 0- to 25-degree deadrise. This flexible mounting range helps accommodate a variety of compatible non-cored fiberglass hull configurations while keeping the transducer protected inside the boat. The depth-only design is suited to customers who need straightforward depth-sounding capability for navigation, cruising, and general boating applications.

Key Features

• CHIRP sonar: Supports CHIRP operation centered on 200 kHz for depth-only sonar applications.
• In-hull installation: Mounts inside compatible non-cored fiberglass hulls for a clean installation.
• Broad deadrise support: Transducer tube housing accommodates hulls ranging from 0 to 25 degrees deadrise.
• Element S compatibility: Connects directly to Raymarine Element S series units.
• Adapter compatibility: Connects to Axiom RV, Axiom Pro RVX, and Element HV systems with the specified adapters.

Product Details

• Brand: Raymarine
• Part number: A80691
• Product type: In-hull CHIRP transducer
• Function: Depth only
• Operating frequency: Centered on 200 kHz
• Intended hull type: Non-cored fiberglass hulls
• Supported deadrise: 0 to 25 degrees
• Direct compatibility: Raymarine Element S series units
• Adapter compatibility: Axiom RV and Axiom Pro RVX with A80490 adapter; Element HV with A80559 adapter

Choose the Raymarine CPT-S In-Hull CHIRP Transducer A80691 for a straightforward depth-sounding solution tailored to compatible fiberglass-hull boats and Raymarine displays.

Product summary

Raymarine CPT-S A80691 in-hull CHIRP transducer delivers depth-only sonar for non-cored fiberglass hulls and Element S series displays.
