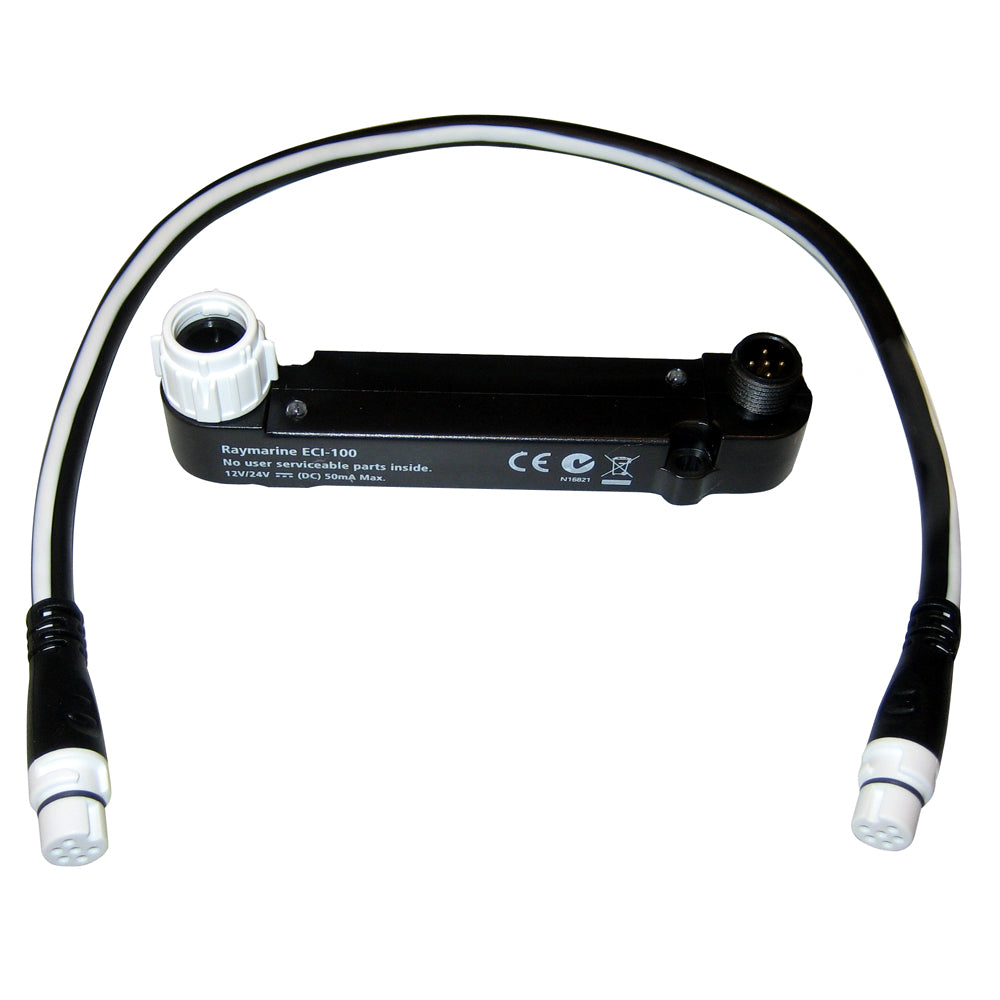

ECI-100 Universal Engine & Control Interface

The ECI-100 Universal Engine and Control Interface is an innovative and affordable solution for bridging engine instrumentation and drive-by-wire steering with Raymarine autopilot and navigation systems. A simple isolated CAN Bus solution, the ECI-100 offers reliable integration with Raymarine's latest generation of multifunction displays and also delivers a seamless autopilot steering interface to Raymarine's Evolution EV-2 Drive By Wire autopilot system.

Benefits:

• A simple, single point of connection for engine data and drive-by-wire autopilot control

• Affordable and uncomplicated solution eliminates the need for multiple engine and autopilot gateways

• Brings Raymarine's Evolution 9-axis sensor and adaptive autopilot control to drive-by-wire propulsion without the need for a proprietary autopilot gateway

• View engine data displays and enjoy full autopilot control alongside Raymarine's industry-leading radar, sonar and navigation technologies using a single touch screen display.

• From our space saving aSeries, to our flagship big screen gS Series, engine information displays and autopilot control are available on any display running LightHouse v8 or later

• Access easy to customize displays to show engine performance data, fuel consumption, alarms, and much more

• View engine information displays on your smart phone or tablet with Raymarine mobile apps

• Simple to install ECI-100 makes engine and navigation integration a reality for virtually any size vessel

ECI-100 Engine Data Parameters
The ECI-100 Universal Engine and Control Interface identifies the following parameters:

• Engine speed

• Engine oil temperature

• Engine temperature

• Engine oil pressure

• Engine coolant pressure

• Engine fuel rate

• Boost pressure

• Battery potential

• Transmission oil pressure

• Transmission oil temperature

• Total engine hours

• Fuel tank level

• Trip fuel used (calculated by ECI-100)

• Alternator potential

• Engine torque

• Engine percent load

• Transmission gear

• VIN (not shown on the display)

• Software number (not shown on the display)

Simple Integration, Powerful Performance
The ultra-compact ECI-100 connects directly to the industry-standard NMEA2000 or SAE* J1939 Engine Data Bus used by major marine engine manufacturers including:

• Volvo Penta

• Yamaha Marine (Command Link Plus only)

• Caterpillar

• Yanmar Marine

Raymarine is committed to delivering seamless integration with leading marine engines. Visit www.raymarine.com for the latest engine compatibility information.

An industry standard DeviceNet port connects the ECI-100 to manufacturerspecific CAN bus cabling. The ECI-100 then connects to NMEA2000 networks using the SeaTalk^ng cabling system. Each of the ECI-100's isolated ports is powered independently ensuring reliable, worry-free performance from both navigation electronics and engine systems.

* SAE - Society of Automotive Engineers standard

The Raymarine ECI-100 Universal Engine & Control Interface offers a reliable, cost-effective solution for integrating engine data and drive-by-wire steering with Raymarine's advanced autopilot and navigation systems. Designed for easy installation, the ECI-100 simplifies connecting engine sensors and autopilot controls through a single isolated CAN Bus interface, ensuring seamless communication with Raymarine multifunction displays and the Evolution EV-2 Drive By Wire autopilot system. This compact device supports industry-standard NMEA2000 and SAE J1939 engine data buses, making it compatible with leading marine engine brands such as Volvo Penta, Yamaha Marine (Command Link Plus), Caterpillar, and Yanmar Marine, providing versatility across various vessels. The ECI-100's straightforward setup reduces the need for multiple gateways, streamlining system architecture and saving valuable space on your boat. Its integration allows users to view engine parameters like RPM, oil and coolant temperatures, fuel flow, and engine hours directly on Raymarine displays or mobile apps, enhancing situational awareness and operational efficiency. The device's design ensures dependable performance with independently powered, isolated ports, delivering worry-free data transmission even in demanding marine environments. Whether outfitting a small cruising boat or a large yacht, the ECI-100 makes engine and autopilot integration accessible and straightforward, empowering boaters to optimize performance, monitor engine health, and maintain precise control with minimal effort. Raymarine's commitment to industry standards and ongoing compatibility updates ensures that your marine electronics stay current, making the ECI-100 an essential component for modern, intelligent vessel navigation systems. Please consult Raymarine’s website for the latest engine compatibility details and supported features, including Prop 65 disclosures if applicable.

Features:

• Universal compatibility with industry-standard NMEA2000 and SAE J1939 engine data buses

• Supports major marine engine brands including Volvo Penta, Yamaha Marine (Command Link Plus), Caterpillar, and Yanmar Marine

• Provides real-time engine parameters: RPM, temperatures, pressures, fuel rate, torque, and more

• Simple, single connection interface for engine data and autopilot control

• Full autopilot control integrated with Raymarine Evolution EV-2 Drive By Wire system

• Displays engine data and autopilot status on Raymarine multifunction displays and mobile apps

• Compact, space-saving design suitable for vessels of all sizes

• Powered independently for reliable and worry-free operation

• Easy to install with industry-standard DeviceNet and SeaTalkng cabling systems
